| Brand Name: | IWAVE |
| Model Number: | FDM-6802PTM |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

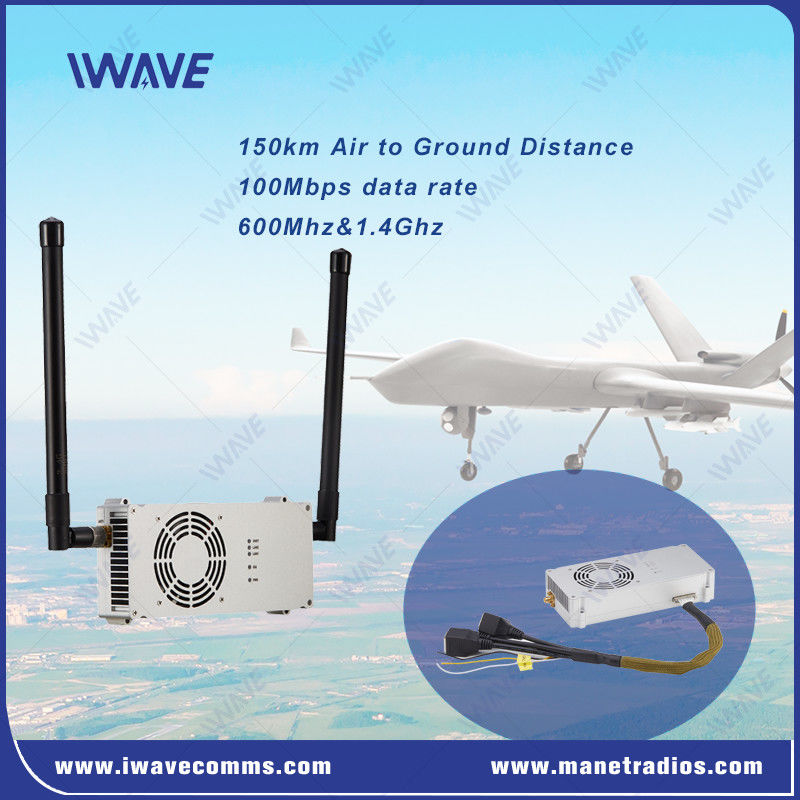

100Mbps 150km Long Range Drone Video And Control Data Transmitter
Description
The FDM-615PTM offers a robust and reliable wireless communication solution for fixed-wing drones and helicopters, enabling real-time HD video and TTL data transmission. Whether you're in the field of aerial surveillance, search and rescue, or remote monitoring, this system provides the connectivity you need for mission success.It is special designed for fixed wing drone/helicopter/Vehicles video downlink for 150km during fast moving.
Smart antenna MIMO make FDM-6810PTM provide real-time HD video and broadband Ethernet connection with 100Mbps transmission rate.
Key Features
|
|
Technology Advantage
FDM-6810PTM adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.
1. Supports a larger total bandwidth, supports 20MHz+20MHz carrier aggregation, and the data transmission peak rate exceeds 100Mbps.
2. Supports continuous carrier aggregation and non-continuous carrier aggregation, which is more flexible.
3. Supports carrier aggregation of different bandwidths, and can adjust the bandwidth of carrier aggregation
according to environmental interference and available spectrum resources, making it easier to adapt to different scenarios.
4. Retransmit on different carriers to avoid data interruption after a single carrier is interfered.
5. Supports frequency hopping of different carriers to more effectively find interference-free carriers.
Applications:
Aerial Surveillance: Real-time video downlink for fixed-wing drones and helicopters used in monitoring large areas such as borders, natural disasters, or critical infrastructure.
Remote Monitoring and Inspection: Ideal for power line inspection, pipeline monitoring, and environmental monitoring where video and data are transmitted over long distances.
Search and Rescue Operations: The low-latency video and TTL data make it a perfect tool for first responders, providing real-time situational awareness in remote or disaster-stricken areas.
Defense and Security: Essential for military and law enforcement applications, offering both secure communication and the ability to transmit live HD video for tactical operations.
Agricultural Monitoring: For precision farming, using drones and helicopters to monitor large agricultural fields, providing both video feedback and telemetry data for crop management.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
10watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
86*120*24.2mm |
600Mhz |
634Mhz-674Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
|
|
