| Brand Name: | IWAVE |
| Model Number: | FDM-615PTM |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

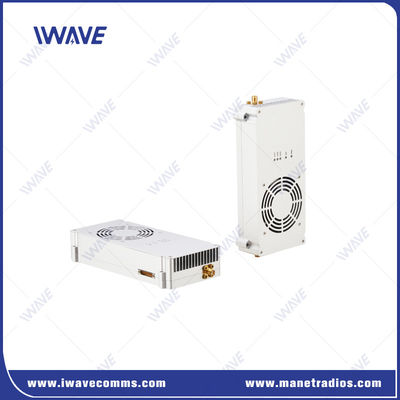

150km Long Range Drone Video Transmitter For Hd Video And Full Duplex Data
Description
Frequency hopping spread spectrum (FHSS) is the best choice for immunity to noise and interference.
FDM-615PTM use FHSS to deliver your video and data reliably over very long distances.
It is the smallest form factors with 10watts transmitting power offers robust full duplex Ethernet/Serial communications over very long distances.
With API document, IWAVE strong R&D support, OEMs can secondary develop it or integrate this unit quickly and efficiently into your autonomous unmanned platform.
New Dynamic Frequency Selection, automatic power control, Strong NLOS ability, Frequency Hopping & Ultra Wide L-band Range 1420-1530Mhz Frequency delivers robust interference and antijam immunity!

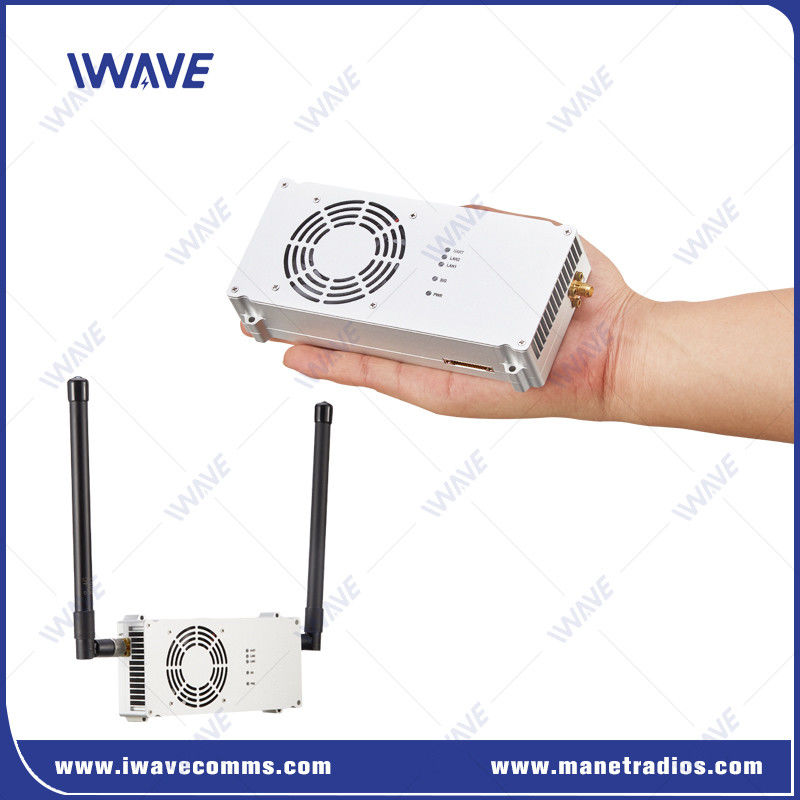

190g weight and small size make FDM-615PTM be an ideal candidate for high quality wireless video and telemetry communications on micro unmanned platforms.
Key Features
|
 |
Robust Long Range Communication
Up to 150km clear and stable radio signal with 2dbi fiber glass antenna.
HD Video Transmission
When distance is 150km, the real time data rate is about 8-12Mbps. It enable you get a full hd 1080P60 video streaming on ground.
Short Latency
Featuring less than 60ms-80msof latency for 150km, so that you can see and control what's happening live. Use FDM-615PTM video to help you fly, aim the camera, or operate the gimbal.
UHF, L Band and S Band Operation
FDM-615PTM uses offers multiple frequency options to meet different RF environment. 800MHz, 1.4Ghz and 2.4Ghz. Automatic Frequency Hopping Spread Sprectrum (FHSS) will choose the best available channel to be used, and will move seamlessly to an alternative channel on-the-fly if needed
Encrypted Transmission
FDM-615PTM adopts AES128 for the video encryption to prevent your video feed from unauthorized accessing and intercepting.
Plug and Play
FDM-615PTM offers 150km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter. It is designed to setup and get work without complicated binding procedures
Application
FDM-615PTM is special designed for fast moving big fixed wing drone and UAV for long range communication. It is the ultimate solution for first responders, power line patrol monitoring,emergency communications and maritime.
Specification
| GENERAL | ||
| Technology | Wireless based on TD-LTE Technology Standards | |
| Encryption | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| Data Rate | 30Mbps(Uplink and Downlink) | |
| Range | 100km-150km(Air to ground) | |
| Capacity | 32Nodes | |
| NLOS Range | 5-10km nlos ground to ground | |
| RF Power | 10Watts | |
| Latency | End to End: 60ms-80ms | |
| Modulation | QPSK, 16QAM, 64QAM | |
| Anti-jamming | Automatically frequency hopping | |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| POWER | ||
| Power Input | DC 24V±10% | |
| Power Consumption | 30watts | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | l Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:l The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-615PTM node can receive serial data.l If you want to distinguish between sending, receiving and control, you need to define the format yourself | ||

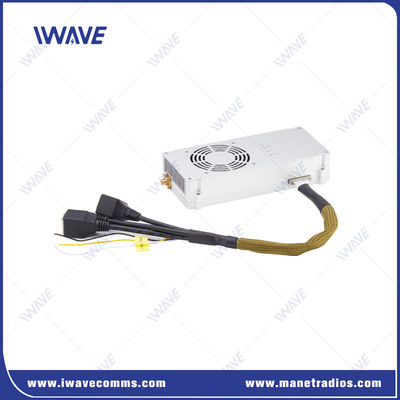

| INTERFACES | ||
| RF | 2 x SMA | |
| Ethernet | 1xJ30 | |
| COMUART | 1xJ30 | |
| Power | 1xJ30 | |
| Debug | 1xJ30 | |
|
|
