| Brand Name: | IWAVE |
| Model Number: | FNM-8416 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/P, T/T |

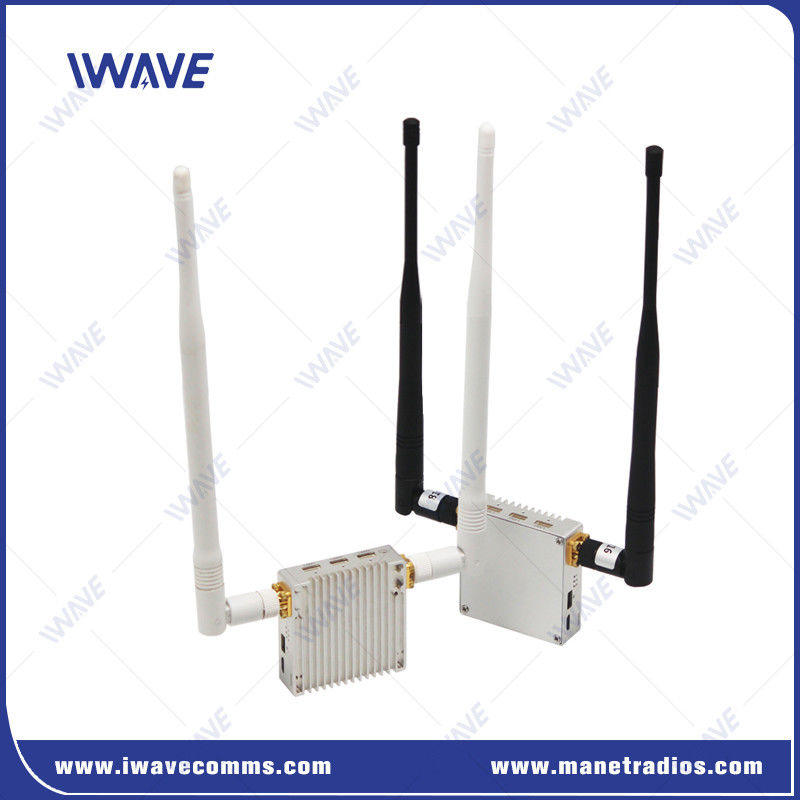

15km Drone Transmitter And Receiver Dual IP Camera With Mavlink Telemetry Data
Description
FNM-8416 UAVs dual IP camera video transmitter offers TCPIP/UDP signal and bi-directional Data wireless transmitting for 15km. The air unit is only 65g(2.3oz) and it can be easily integrated into any type of UAV, including multirotor, fixed-wing and VTOL.
FNM-8416 is an all-in-one drone data link that provides a convenient combined solution for ultra low-latency transmission of video, control and telemetry signals. It provides three LAN ports for IP camera and other IP data input and one full duplex serial port for users to connect drone flight controllers.
To avoid the interference, FNM-8416 provides 800Mhz and 1.4Ghz frequency options. The UHF frequency and COFDM technology enable FNM-8416 have NLOS ability to wireless transmit the full hd video to ground control station.
Features
|
 |
Various Ports

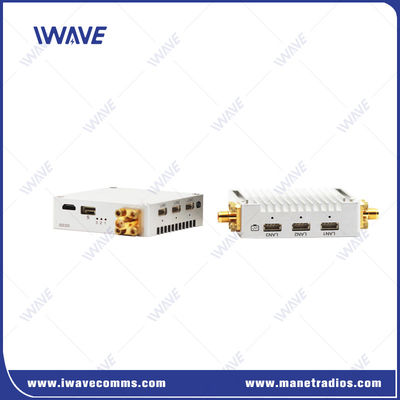

FNS-8408 digital UAV video link offers three LAN ports and one bi-directional serial port. With the LAN ports, users can get full hd IP video stream and connect with airborne PC for TCPIP/UDP data. With the serial port, the pilot can control the flight with pixhawk in real time.
Application
Super lightweight(65g) embedded bi-directional data link specially designed to enable autonomous operations for commercial and industrial drones.
Features an advanced proprietary encryption mechanism AES128 to prevent unauthorized access to your wireless video feed, and it is also compatible with a wide range of flight controllers, mission software and payloads.
Drones with real time wireless video streaming link have a variety of applications in photography, surveillance, agriculture, disaster rescue and transporting food in remote or difficult area of cities.
Specification
| Frequency | 800Mhz | 806~826 MHz |
| 1.4Ghz | 1428~1448 MHz | |
| Bandwidth | 8MHz | |
| RF Power | 0.6Watt (Bi-Amp, 0.6watt Peak Power of each power amplifier) |
|
| Transmit Range | 800Mhz: 14km 1400Mhz: 16km |
|
| Transmit Rate | 6Mbps (Video Stream, Ethernet Signal and serial data share) The best video stream: 2.5Mbps |
|
| Baud Rate | 115200bps(Adjustable) | |
| Rx Sensitivity | -104/-99dbm | |
| Fault Tolerance Algorithm | Wireless baseband FEC forward error correction | |
| Video Latency | The video not be compressed. No latency | |
| Link Rebuild Time | <1s | |
| Modulation | Uplink QNSK/Downlink QNSK | |
| Encryption | AES128 | |
| Start Time | 15s | |
| Power | DC-12V (7～18V) | |
| Interface | 1. Interfaces on Tx and Rx are same 2. Video input/Output: Ethernet×3 3. Power Input Interface×1 4. Antenna Interface: SMA×2 5. Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL) |
|
| Indicators | 1. Power 2. Ethernet Status Indicator 3. Wireless Connection Setup Indicator x 3 |
|
| Power Consumption | Tx: 4W Rx: 3W |
|
| Temperature | Working: -40 ~+ 85℃ Storage: -55 ~+85℃ |
|
| Dimension | Tx/Rx: 57 x 55.5 x 15.7 mm | |
| Weight | Tx/Rx: 65g | |
| Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
|
|
