| Brand Name: | IWAVE |
| Model Number: | FD-605MT |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/P, T/T |
30km Drone Wireless Video Transmitter TCPIP/UDP 30Mbps 2Watts IP MESH Link
Descryption

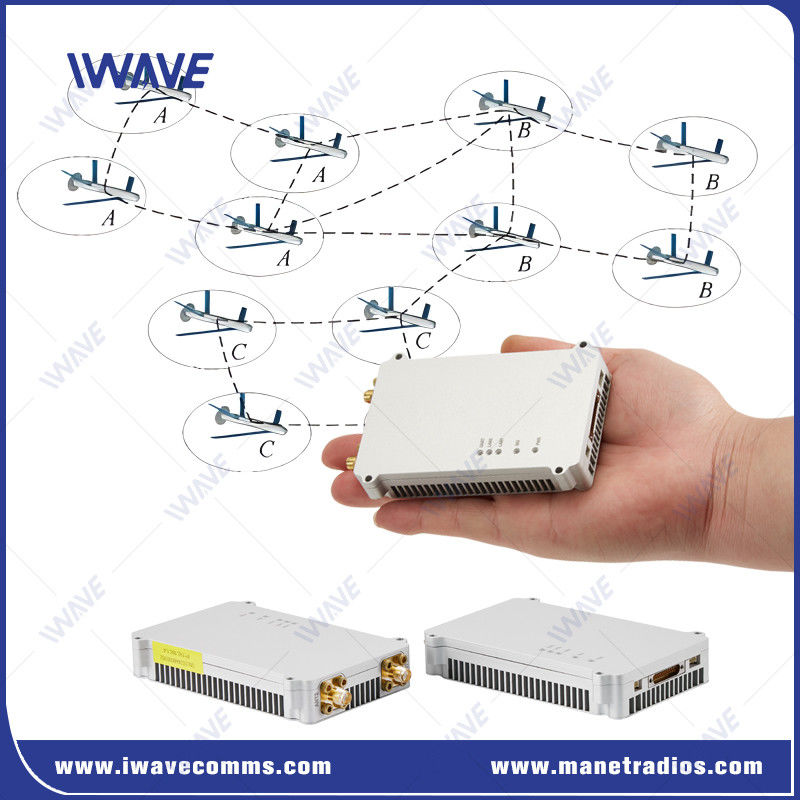

FD-605MT provides a seamless self-forming, self-healing MANET (Mobile
Ad-hoc Network) networking capability which can be relied on even in the toughest conditions, delivering ultra-low latency, end-to-end encryption and unrivalled robustness.
FD-605MT build a no center, self-forming, self-adapting and self-healing dynamic routing/automatic relay communication mesh network.
It achieves dynamic routing, multi-hop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications, such as fast movement and non-line-of-sight environmental distance.
Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make FD-605MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of NLOS 1-3km (ground to ground). It Is special for wireless communication in critical private networks.
Key Features
|
 |
Application
IWAVE’s solutions are in use with a variety of military, law enforcement and government entities, as well as unmanned systems manufacturers and system integrators, overcoming crucial connectivity and communication challenges on land, at sea and in the air.
It was widely applied in Power and hydrological line patrol monitoring, Emergency communications for firefighting, border defense, and Maritime communications. IP Mesh Technology high data rate connectivity for meshed UAVs, UGVs and autonomous marine vehicles
Specifications
| GENERAL | |||
| TECHNOLOGY | MESH based on TD-LTE | Latency | UART≤20ms |
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | Ethernet≤150ms | |
| Modulation | OFDM/QPSK/16QAM/64QAM | MECHANICAL | |
| Networking Time | ≤5s | TEMPERATURE | -20º to +55ºC |
| DATA RATE | 30Mbps | DIMENSIONS | 116*70*17mm |
| SENSITIVITY | 10MHz/-103dBm, 3Mhz/-106dBm | WEIGHT | 190g |
| RANGE | 20km-30km(Air to ground) NLOS 1km-3km(Ground to ground)(depends on the actual environment) |
MATERIAL | Silver Anodized Aluminum |
| MODULATION | QPSK, 16QAM, 64QAM | ||
| NODE | 32 | MOUNTING | Vehicle-mounted/Onboard |
| MIMO | 2x2 MIMO | POWER | |
| Anti-jamming | Automatically frequency hopping | ||
| POWER | 33dBm | VOLTAGE | DC 12V |
| LATENCY | One Hop Transmission≤30ms | POWER CONSUMPTION | 11watts |
| FREQUENCY(Option) | INTERFACES | ||
| 1.4Ghz | 1427.9-1447.9MHz | RF | 2 x SMA |
| ETHERNET | 1xJ30 | ||
| 800Mhz | 806-826 MHz | PWER INPUT | 1 x DC Input |
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
|
COMUART |
|
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level |
| Control Data | UART |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-605MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format. |
|
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
|
|
