| Brand Name: | IWAVE |
| Model Number: | FNM-8416 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/P, T/T |

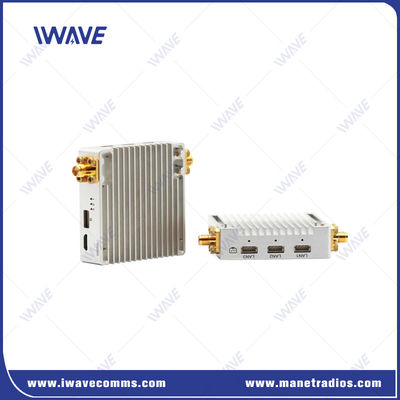

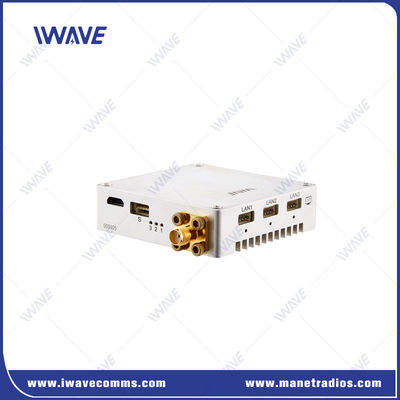

1.4GHz / 800Mhz 16km Drone Camera Transmitter TCPIP And UDP Long Range HD Video
Description
FNM-8416 uav video transmitter is an end-to-end encrypted low latency hd video transmission system for drones utilizing COFDM technology. It offers full hd IP camera video-link and a bi-directional command and control data link specifically designed for commercial and industrial drones and autonomous UAV systems. The Integrated Data Link System (FNM-8416) is an advanced single unit digital data link system specifically designed for providing reliable broadband communications under high-dynamics for critical UxV applications such as UAV, Drones, and other critical platforms which are sensitive to Size, Weight and Power (SWaP). FNM-8416 is only weighs 65g/2.3oz and it adopts private COFDM protocol, features long range transmission, high sensitivity and high throughput for 14-16km air to ground range.
Key Features
|
 |
The low-power RF solution(500mw) which includes the advanced frequency hopping algorithm and the remarkable anti-interference technology makes the communication distance up to 16 kilometers.
IWAVE team has its own algorithms and mechanisms for frequency hopping.
During operation, the FNM-8416 digital data link internally calculates and evaluates the current link based on received signal strength RSRP, signal-to-noise ratio SNR, bit error rate SER and other factors. If the judgment condition is satisfied, frequency hopping is performed and an optimal frequency point is selected from the list.
Effectively eliminate multipath interference in long-distance transmission
N-LOS communication provides a powerful radio signal while countering interference and overcoming blind spots.
Prevents the malicious attacks and unauthorized access your video feed in real time without operator intervention.
FNM-8416 the 1.4Ghz and 800Mhz data and video link supports UART data input and is also equipped with 3 LAN port. Via them users can connect UAV, drones or other unmanned aircraft platform with onboard PC, IP camera or other IP payloads.
Application
FNM-8416 800Mhz and 1.4Ghz datalink is designed to be a professional transmitting and receiving link for drones and uav on industrial application, such as aerial mapping, routing inspection and wildlife protection . It is applied with a brand new RF modulation technology which supports an anti-interference long communication distance at very low transmitting power.
Specification
| Specifications | ||
| Frequency | 800Mhz | 806~826 MHz |
| 1.4Ghz | 1428~1448 MHz | |
| Bandwidth | 8MHz | |
| RF Power | 0.6watt(Bi-Amp, 250mw average power of each power amplifier) | |
| Transmit Range | 800Mhz: 16km1400Mhz: 14km | |
| Transmit Rate | 6Mbps (Video Stream, Ethernet Signal and serial data share)The best video stream: 2.5Mbps | |
| Baud Rate | 115200bps(Adjustable) | |
| Rx Sensitivity | -104/-99dbm | |
| Fault Tolerance Algorithm | Wireless base band FEC forward error correction | |
| Video Latency | The video not be compressed. No latency | |
| Link Rebuild Time | <1s | |
| Modulation | Uplink QNSK/Downlink QNSK | |
| Encryption | AES128 | |
| Start Time | 15s | |
| Power | DC-12V (7～18V) | |
| Interface | 1. Interfaces on Tx and Rx are same 2. Video input/Output: Ethernet×3 3. Power Input Interface×1 4. Antenna Interface: SMA×2 5. Serial×1: (Voltage:±13V(RS232), 0~3.3V(TTL) |
|
| Indicators | 1. Power 2. Ethernet Status Indicator 3. Wireless Connection Setup Indicator x 3 |
|
| Power Consumption | Tx: 5WRx: 3.5W | |
| Temperature | Working: -40 ~+ 85℃Storage: -55 ~+85℃ | |
| Dimension | Tx/Rx: 57 x 55.5 x 15.7 mm | |
| Weight | Tx/Rx: 65g | |
| Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
|
|
