| Brand Name: | IWAVE |
| Model Number: | FIM-1440 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

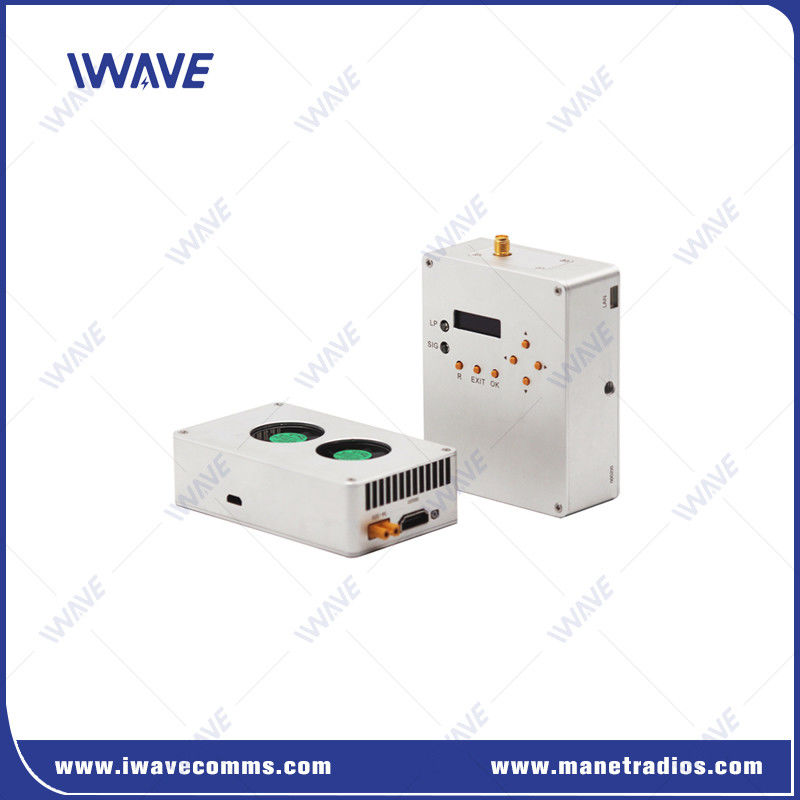

50km UHF 300Mhz Long Range VTOL HDMI Drone Video Transmitter and Receiver
Description
FIM-1440 VTOL HDMI Video Transmitter is developed based on COFDM technology with 300Mhz-2Ghz wide frequency option. This unique feature gives FIM-1440 an ability to transmit the 1080p 60fps video stream at 50ms low latency.
Equipped with the standard omni fiber antenna, FIM-1440′s effective range can reach up to 50-70km. FIM-1440 long range drone transmitter is an high cost effective video link. It only supports HDMI video input and output without control data.
We supply a whole complete system including transmitter on drones, receiver on ground, antennas and data cables, parameters configuration software, HDMI cable, power cable.
Key Features
|
● 50-70km+ LOS range Air to ground ●Antennas (transmitter and Receiver) easily connected through the SMA Port interface. ●One 1/4inch fixed Port connect Camera steady. ●One 100Mbps Ethernet Port for video output, and it supports TCP/IP/UDP. ● Conductive anodizing craft and CNC technology double aluminum alloy Shell have good impact resistance. Two cooling fans help heat dissipation. ●Mini size and Light weight only 200grams |
 |
Application
Specifications
| Wireless Channel | 300Mhz-2Ghz for your option |
| Communication Bandwidth | 2/4/8MHZ |
| RF Transmission Power | 2.5W |
| Data Rates | 1.5/3/6Mbps |
| RX Sensitivity | -108dbm@2Mhz/-103dbm@4Mhz/-97dbm@8Mhz |
| Encryption | AES128 |
| End to End latency | 50-70ms for 1080P60/720P60 encoding and decoding |
| Interfaces on Tx | 1080P60 HDMI RX×1 |
| Power Input Interface--XT30 Industrial Grade ×1 | |
| USB 2.0--Connecting with PC for configure | |
| SMA RF ×1 | |
| Interfaces on Rx | 1080P60 HDMI Mini ×1 |
| LCD--Displaying RSSI and link state. | |
| Buttons×5--For configuring receiver model. | |
| Power Input Interface--XT60 Industrial Grade ×1 | |
| SMA RF ×1 | |
| Ethernet to RJ45 ×1 | |
| Wireless Fault Tolerance | FEC/MPEG |
| Modulation | DVB-T/DVB-T2/DVB-T2 |
| Distance Range | Air to ground: 50-70kmNotes: True distance is related to the environment. |
| Ground to ground: NLOS 1-2km | |
| Start Time | 5s |
| Power Input | DC 14-18V(Tx) (DC16V is suggested)DC 10-14V(Rx) (DC12V is suggested) |
| Re-connection time | Less than 1s after signal has been recovered |
| COFDM | QPSK one-way |
| Power Consumption (Maximum) | Transmitter terminal: 25W Receiver terminal: 11W |
| Temperature Range | Operating temperature: -40—85℃Storage temperature: -55 - 125℃ |
| Dimensions | TX: 97×57x30mm RX: 91×72x30mm |
| Radiator | Fan cooler or aluminum heat sink |
| Gram | TX: 200g RX: 202g |
| Metal Case | Conductive anodizing craft |
| CNC Technology | |
| Double Aluminum Alloy Shell |
|
|
