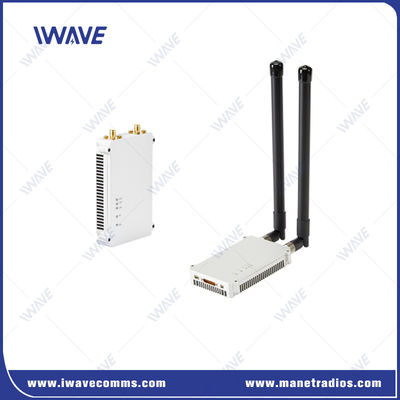

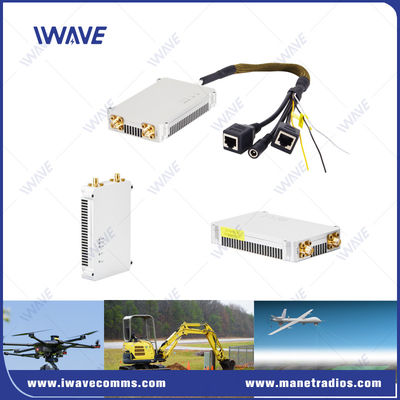

50km 30Mbps TCP UDP Point To Multi- Point Transmitter And Receiver For Drone
Description
FDM-605PTM is a point to multi-point network board for long range video and data downlink to ground. It supports multi transmitters in air sending HD video and TTL data to one receiver on ground. It is special designed for fixed wing drone/helicopter/Vehicles video downlink for 50km during fast moving.
Smart antenna MIMO make FDM-605PTM provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate. It Is special for wireless communication in critical private networks.
It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 280g weight.
It comes in 10W and 20W version to create an encrypted communications link for UAV swarm beyond line of sight in complex RF environments.
Key Features
|
 |
Long Range HD Video Communication and low latency
Offers 50km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter.
Featuring less than 60ms-80msof latency for 150km, so that you can see and control what's happening live.
Automatic Power Control
The transmit power of each node is automatically adjusted and controlled according to its signal quality.
Frequency-Hopping Spread Spectrum (FHSS)
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
Automatic Frequency Point Control
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
Application
• Point to multiple- point long-distance communication
• Power and hydrological line patrol monitoring
• Emergency communications for firefighting, border defense, and military
• Maritime communications, Digital oilfield, Fleet formation
Specification
|
GENERAL |
MECHANICAL |
||
| TECHNOLOGY | Wireless based on TD-LTE Access Technology | TEMPERATURE | -20º to +55ºC |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | DIMENSIONS | 116*70*17mm |
| DATE RATE | 30Mbps | WEIGHT | 100g |
| SENSITIVITY | -103dBm | ||
| RANGE | 50km (Air to ground) | MATERIAL | Silver Anodized Aluminum |
| MODE | Point to multi-point | MOUNTING | Onboard |
| MIMO | 2x2 MIMO |
POWER |
|
| MODULATION | QPSK, 16QAM, 64QAM | ||
| RF POWER | 33dbm | VOLTAGE | DC 12V |
| LATENCY | End to END: 60ms-80ms | POWER CONSUMPTION | 11watts |
| ANTI-JAM | Automatically frequency hopping | ||
|
FREQUENCY |
INTERFACES |
||
| 1.4Ghz | 1427.9-1447.9MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | ETHERNET | 1xJ30 |
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| PWER INPUT | 1xJ30 | ||
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
|
COMUART |
|
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | RS232 |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note: 1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-605PTM unit can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
|
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
|
|
