| Brand Name: | IWAVE |
| Model Number: | FDM-615PTM |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

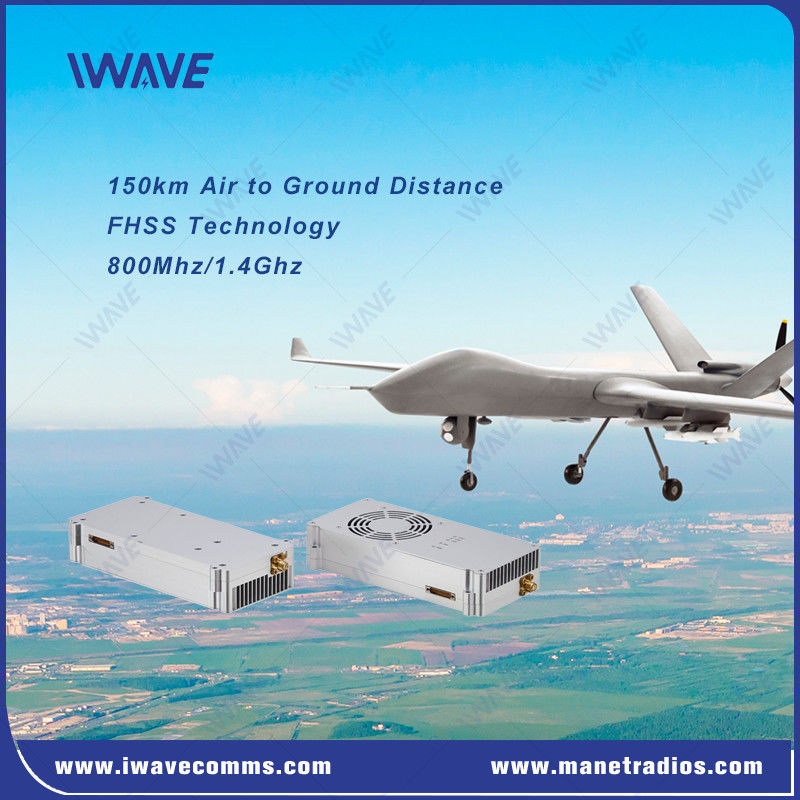

150km Long Distance Wireless HD Video Transmitter For Drone
Description
The FDM-615PTM is a cutting-edge wireless transmission unit designed for long-range video and data downlink, with a particular focus on unmanned aerial vehicles (UAVs), including fixed-wing drones and helicopters. This solution is ideal for applications like emergency communications, power line patrol monitoring, maritime operations, and first responders.
New Dynamic Frequency Selection, automatic power control, Strong NLOS ability, Frequency Hopping & Ultra Wide L-band Range 1420-1530Mhz Frequency delivers robust interference and antijam immunity!
280g weight and small size make FDM-615PTM be an ideal candidate for high quality wireless video and telemetry communications on micro unmanned platforms.
Key Features
|
 |
Frequency Hopping Spread Spectrum (FHSS):
The FDM-615PTM uses FHSS for reliable data transmission over long distances, offering excellent immunity to noise and interference. This ensures robust performance even in challenging environments.
Long Range and NLOS Capabilities:
The unit offers stable communication over up to 150 km (clear line-of-sight) with its 2dBi fiber glass antenna, making it ideal for high-performance UAVs, including VTOL and fixed-wing drones.
High Data Rate for HD Video Transmission:
At a distance of 150 km, the FDM-615PTM provides 8-12 Mbps data throughput, enabling full HD 1080P60 video streaming. This is crucial for real-time video applications like surveillance, remote monitoring, and mission control.
Low Latency:
The device offers short latency (60-80ms) even at long ranges, ensuring real-time feedback and control. This feature is especially important for tasks like remote gimbal control or camera aiming.
Application
UAVs: Long-range communication for fixed-wing drones, VTOLs, and helicopters.
First Responders: Emergency communications for rapid deployment in critical situations.
Power Line Monitoring: Long-range data and video transmission for remote inspection.
Specification
| GENERAL | ||
| Technology | Wireless based on TD-LTE Technology Standards | |
| Encryption | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| Data Rate | 30Mbps(Uplink and Downlink) | |
| Range | 100km-150km(Air to ground) | |
| Capacity | 32Nodes | |
| NLOS Range | 5-10km nlos ground to ground | |
| RF Power | 10Watts | |
| Latency | End to End: 60ms-80ms | |
| Modulation | QPSK, 16QAM, 64QAM | |
| Anti-jamming | Automatically frequency hopping | |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| POWER | ||
| Power Input | DC 24V±10% | |
| Power Consumption | 30watts | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | l Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:l The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-615PTM node can receive serial data.l If you want to distinguish between sending, receiving and control, you need to define the format yourself | ||
| INTERFACES | ||
| RF | 2 x SMA | |
| Ethernet | 1xJ30 | |
| COMUART | 1xJ30 | |
| Power | 1xJ30 | |
| Debug | 1xJ30 | |
|
|
