| Brand Name: | IWAVE |
| Model Number: | FDM-6802PTM |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
50km 100Mbps TCP UDP IP Digital Data Link For Drone
Description

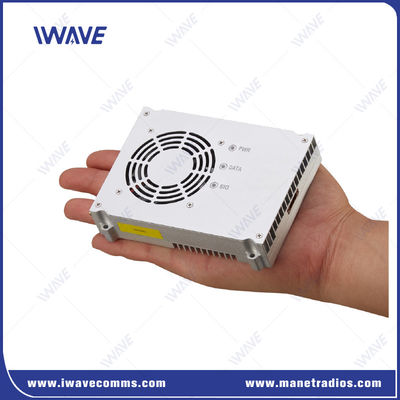

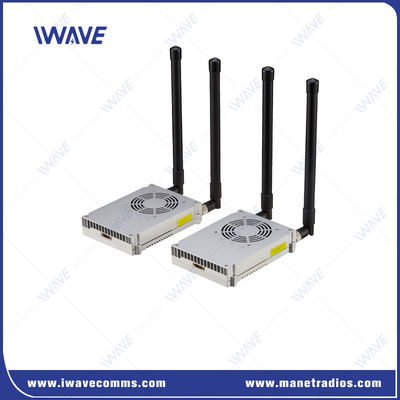

FDM-6802PTM is a point to multi-point network board for long range video and data downlink to ground. It supports multi transmitters in air sending HD video and TTL data to one receiver on ground. It is special designed for fixed wing drone/helicopter/Vehicles video downlink for 50km during fast moving.
Smart antenna MIMO make FDM-6802PTM provide real-time HD video and broadband Ethernet connection with 100Mbps transmission rate.
It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 273g weight.
Key Features
|
|
Long Range HD Video Communication and low latency
Offers 50km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter.
Featuring less than 60ms-80msof latency for 50km, so that you can see and control what's happening live.
Automatic Power Control
The transmit power of each node is automatically adjusted and controlled according to its signal quality.
HD Video and Data Transmission: Ensures stable and secure communication links for video streaming, telemetry, and control.
Dynamic Network Environments: Ideal for rapidly changing, high-demand wireless environments.
Industrial and Tactical Use: Supports applications in drones, autonomous vehicles, and other critical systems requiring robust, long-range communication.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
86*120*24.2mm |
600Mhz |
634Mhz-674Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
|
|
