High-Performance Wireless Transmission System for HD Video and Data Communication
Description

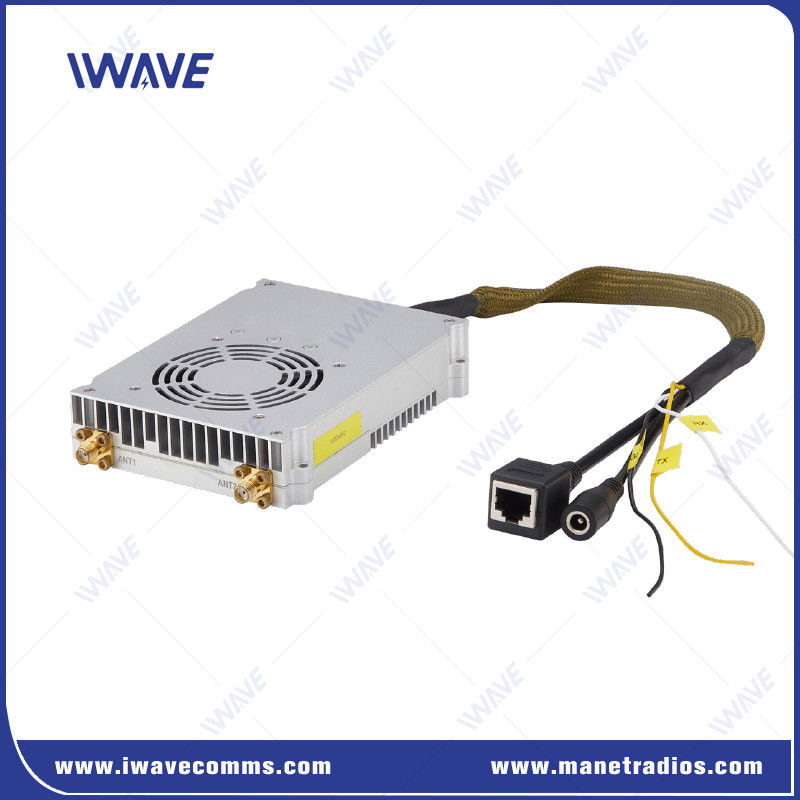

The FDM-6802PTM, designed by IWAVE, is a cutting-edge wireless transmission solution based on a mature SOC chipset. Featuring 2 watts power output and 2x2 MIMO, it provides robust and secure IP-based communication for HD video, data, and serial control.

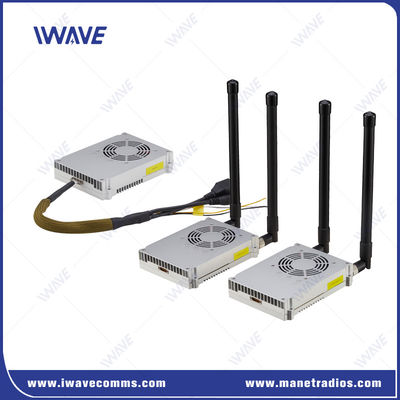

It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 273g weight.
It comes in 10W and 20W version to create an encrypted communications link for UAV swarm beyond line of sight in complex RF environments.
Key Features
|
|
Frequency-Hopping Spread Spectrum (FHSS)
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
Automatic Frequency Point Control
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
Why Choose FDM-6802PTM?
High Bandwidth: Efficiently handles video and data communication with low latency.
Anti-Interference: Advanced FHSS and adaptive modulation ensure uninterrupted operation in challenging RF environments.
Plug-and-Play: Simplifies deployment with automatic configuration and dynamic networking.
Durable and Flexible: The J30 aviation plug interface and multiple communication options make it suitable for various rugged applications.
The FDM-6802PTM is an ideal solution for industries requiring a reliable, adaptable, and high-performance wireless transmission system for critical video and data communication tasks.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
86*120*24.2mm |
600Mhz |
634Mhz-674Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
|
|
