Video And Control Signal Transmission For Unmanned Industrial Machinery In NLOS
Description

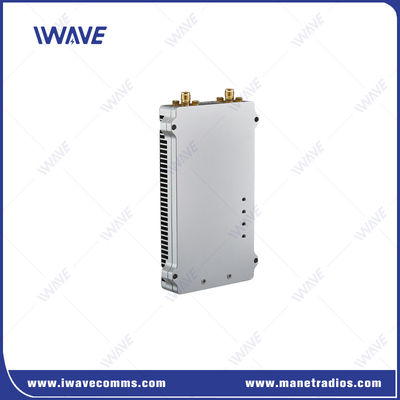

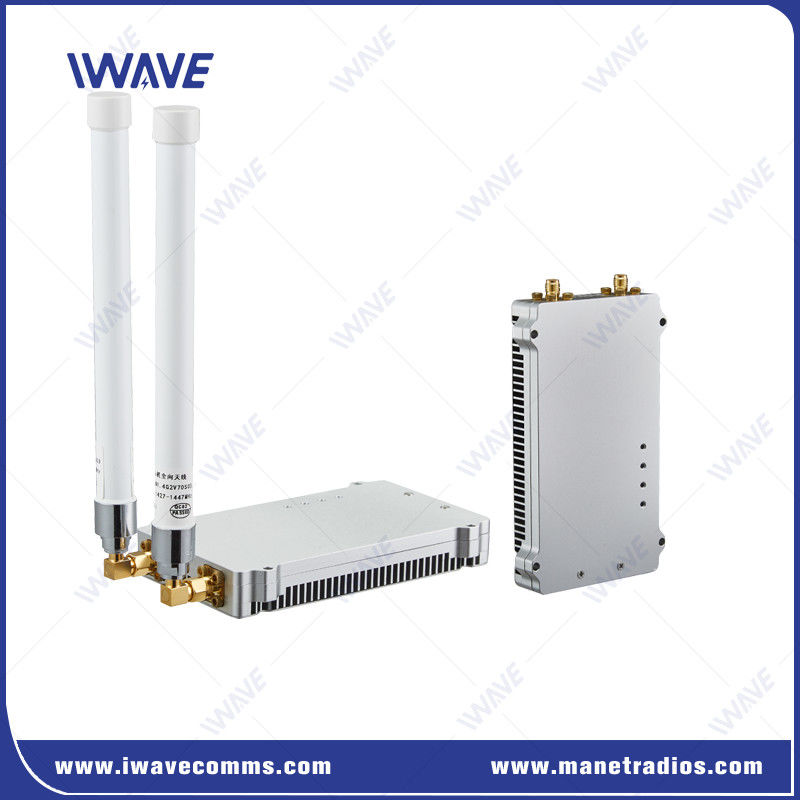

FDM-605PTM is a point to multi-point network board for long range video and data downlink to ground. It supports multi transmitters in air sending HD video and TTL data to one receiver on ground. It is special designed for fixed wing drone/helicopter/Vehicles video downlink for 50km during fast moving.
The FDM-605PTM is a cutting-edge network board designed for long-range video and data downlink applications, offering robust performance in challenging Non-Line-of-Sight (NLOS) environments. Specifically tailored for unmanned excavators, tractors, cranes, and vehicles, this solution ensures seamless communication over distances of 1-5 km in forests, harsh terrains, and urban settings.
Key Features
|
Advantage Technology
Automatic Power Control
The transmit power of each node is automatically adjusted and controlled according to its signal quality.
Frequency-Hopping Spread Spectrum (FHSS)
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
Automatic Frequency Point Control
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
Applications:
Unmanned Industrial Machinery
Enables real-time video monitoring and data transfer for excavators, tractors, cranes, and vehicles, improving operational efficiency and safety.
Wireless Transmission in Challenging Environments
Designed for NLOS operations in areas with dense obstacles or harsh conditions.
Critical Private Networks
Ideal for establishing secure communication links in industrial and tactical operations, ensuring uninterrupted data flow.
Remote Control and Monitoring
Provides long-range, secure, and high-speed connectivity, empowering remote operations and surveillance.
Specification
|
GENERAL |
MECHANICAL |
||
| TECHNOLOGY | Wireless based on TD-LTE Access Technology | TEMPERATURE | -20+55 |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | DIMENSIONS | 116*70*17mm |
| DATE RATE | 30Mbps | WEIGHT | 100g |
| SENSITIVITY | -103dBm | ||
| RANGE | 50km (Air to ground) | MATERIAL | Silver Anodized Aluminum |
| MODE | Point to multi-point | MOUNTING | Onboard |
| MIMO | 2x2 MIMO |
POWER |
|
| MODULATION | QPSK, 16QAM, 64QAM | ||
| RF POWER | 33dbm | VOLTAGE | DC 12V |
| LATENCY | End to END: 60ms-80ms | POWER CONSUMPTION | 11watts |
| ANTI-JAM | Automatically frequency hopping | ||
|
FREQUENCY |
INTERFACES |
||
| 1.4Ghz | 1427.9-1447.9MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | ETHERNET | 1xJ30 |
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| PWER INPUT | 1xJ30 | ||
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
|
COMUART |
|
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | RS232 |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note: 1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-605PTM unit can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
|
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
|
|
