| Brand Name: | IWAVE |
| Model Number: | FIM-2410 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

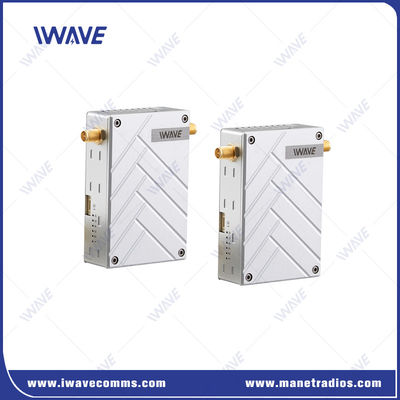

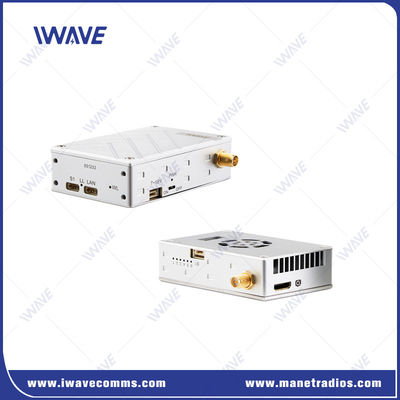

10km UAV VIDEO Transmitter And Bi-Directional Data Radio Links
Description
FIM-2410 mini transceiver is a new designed OFDM wireless communication equipment based on military standard for UAVs. It adopts H.264 technology + H.265's Algorithms video compression technology to achieve Utra-high resolution(1080P) video and bi-directional data transmitting simultaneously with low delay(15-30ms) for 5km range.
Key Features
|
|
 |
FAQ
About video storage
Wireshark can be used to record, Google Wireshark runs on windows. Wireshark can record and playback any video stream on Ethernet. You need to do some research on how to do it, google "wireshark recod play video" and try.
About SDI interface type.
Question 1: Please tell me type of SDI for these links?
Answer: It is standard 3G SDI
Question 2: If I the out put of camera will be to EX_SDI or HD_SDI for out put video of TX link is without noise?
Answer: HD-SDI works with FIM-2450, but EX-SDI doesn't. Because EX-SDI isn't standard SDI, it compresses standard SDI video to JPEG format to transport, standard SDI doesn't compress video.
About Max flight speed
Question: What is the maximum flight speed supported?
Answer: Maximum flight speed supported: 120km/h
Application
Speical designed for UAV air to ground LOS 5km HD video and flight control data transmitting for aerial photography, News, sports events, hidden investigation,video surveillance, real-time wireless video transmission and other fields.
Secure transmission kit for surveillance drone for Law Enforcement and civil rescue.
Crisis management solution by encrypted wireless transmission living video streaming.
Specification
| Frequency | 2.4GHz(2402Mhz-2482MHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 1W (Air to ground 8km-12km) |
| Power Consumption | TX: 10Watts |
| RX: 6Watts | |
| Bandwidth | 4MHz/8Mhz |
| Latency | ≤15-30ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz |
| Video Color Space | Default 4:2:0 |
| Antenna | 1T2R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264+H.265's Algorithms |
| Bit Rate | Software adjustment, Max 115200bps |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 8-12km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support bi-directional TTL |
| Power supply | DC 7- 18V |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
| S1 TTL bi-directional serial port x1 | |
| Power Input x1 | |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| HDMI | HDMI mini |
| Temperature Range | Operating temperature:-40°C ~+ 85°C |
| Storage temperature:-55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell |
| Dimension | 72×47×19mm |
| Weight | Tx: 94g/Rx: 94g |
|
|
