| Brand Name: | IWAVE |
| Model Number: | FIM-2450 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

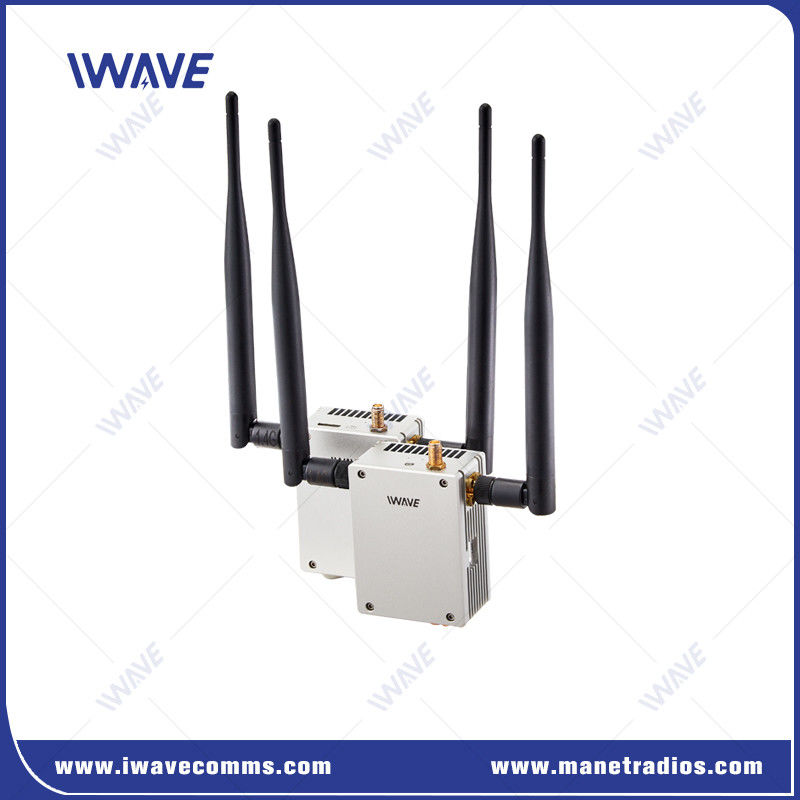

50KM Drones SDI and HDMI Video And Bi-directional Data Radio Links
Introduction

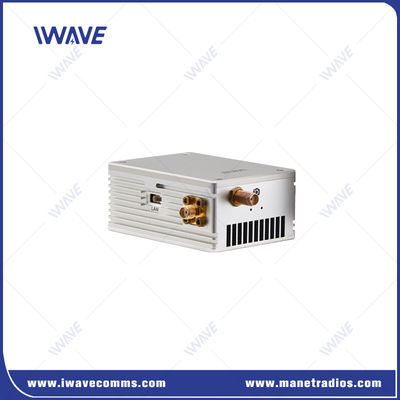

FIM-2450 mini transceiver is a new designed TDD-COFDM wireless communication equipment based on military standard for drones. It supports 2.3/2.4/2.5Ghz adjustable by software. With a HDMI interface, one Ethernet interface and one Serial port The system provides superior performance in 50km long range HD video, Ethernet and bi-directional data transmission with 50ms latency.
The IFLY FIM-2450 Airborne Video Downlink System is a comprehensive aerial-based video transmission solution that delivers real-time surveillance that enhances law enforcement, emergency and critical infrastructure operations. It is comprised of an integrated suite of downlink transmitters, receivers and antennas that capture real-time, reliable high-definition video from drones, helicopters and other aircraft for display at command centers, mobile units and on video management systems.
Key Features
|  |
Application
FIM-2450, which has been deployed by law enforcement agencies, adds an additional layer of safety and security to missions being carried out on the ground. It can play an essential role in surveillance, assessment and deployment operations. It is a critical tool for improving situational awareness by giving those on the ground a clear and reliable picture of what is being captured from airborne units.
Specification
| 800MHZ | 806~826 MHz | |
| Frequency | 1.4Ghz | 1430~1444 MHz |
| Bandwidth | 4/8MHz | |
| RF Power | 2W | |
| Transmit Range | 50km | |
| Transmit Rate | 1.5/3/6Mbps (Video code stream and serial data)The best video stream: 2.5Mbps | |
| Baud Rate | 115200(Adjustable by software) | |
| Rx Sensitivity | -102dBm@4Mhz/-97@8Mhz | |
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction/video codec super error correction | |
| Video Latency | Latency for encoding + transmission + decoding 720P60 <40 ms 1080P30 <60ms | |
| Link Rebuild Time | <1s | |
| Modulation | Uplink QPSK/Downlink QPSK | |
| Video Compression Format | H.264 | |
| Video Color Space | 4:2:0 (Option 4:2:2) | |
| Encryption | AES128 | |
| Start Time | 25s | |
| Power | DC-12V (10～18V) | |
| Interface | Interfaces on Tx and Rx are same 1. Video input/Output: Mini HDMI*1, SMAX1(SDI, Ethernet) 2. Power Input*1 3. Antenna Interface: 4. SMA*2 5. Serial*2: (±13V(RS232)) 6. LAN: 100Mbps x 1 | |
| Indicators | 1. Power 2. Tx and Rx Working Indicator 3. Ethernet Working Indicator | |
| Power Consumption | Tx: 17W(Max)/Rx: 6W | |
| Temperature | Working: -40 ~+ 85℃Storage: -55 ~+100℃ | |
| Dimension | Tx/Rx: 73.8 x 54 x 31 mm | |
| Weight | Tx/Rx: 160g | |
| Metal Case Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
Package List
|
|
