| Brand Name: | IWAVE |
| Model Number: | FD-615MT |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

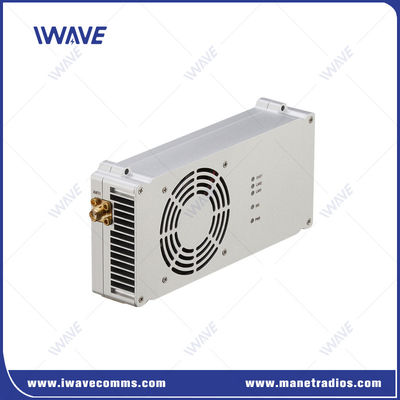

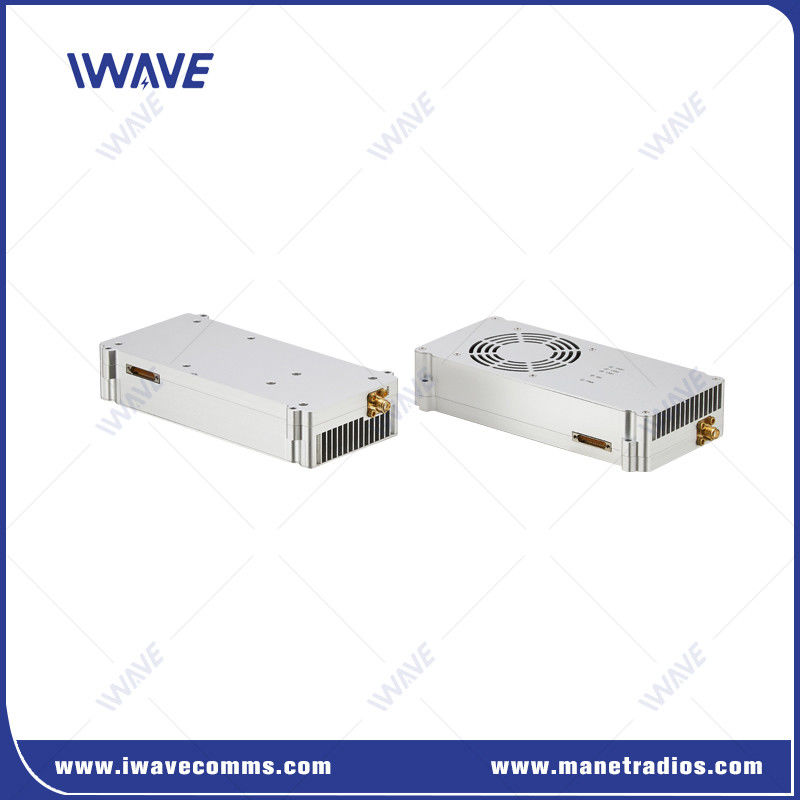

50km Drone IP MESH Video Downlink
Introduction
FD-615MT build a no center, self-forming, self-adapting and self-healing dynamic routing/
automatic relay communication mesh network. It achieves dynamic routing, multihop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications, such as fast movement and non-line-of-sight environmental distance.
Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 100km-150km or more. It Is speical for wireless communication in critical private networks.
Key Features of 50km Drone IP MESH Video Downlink
|
|
Application
Logistics and Delivery
Package Delivery: Drones are increasingly being used to deliver small packages, especially in remote or hard-to-reach areas.
Disaster Relief
Rescue Operations: Drones can be used to locate trapped individuals in disaster zones, such as earthquakes, floods, and avalanches.
Assessment and Mapping: They can provide real-time imagery and data to assess damage and plan relief efforts.
Aid Delivery: Drones can deliver food, water, and medical supplies to affected areas.
Infrastructure Inspection
Power Line Inspection: Drones can inspect power lines, transmission towers, and substations for damage and maintenance needs.
Pipeline Monitoring: They can monitor oil and gas pipelines for leaks and other issues.
Bridge and Building Inspection: Drones are used to inspect bridges, buildings, and other structures for safety and structural integrity.
Specification
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature | -20º to +55ºC |
| Encryption | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | ||
| Data Rate | 30Mbps (Uplink downlink) | Dimension | 116*70*17mm |
| Sensitivity | 10MHz/-103dBm | Weight | 190g |
| Range | 50km (Air to ground) NLSO 3km-10km(Ground to ground)(Depends on the actual environment) |
Material | Silver Anodized Aluminum |
| Node | 16 nodes | Mounting | Vehicle-mounted/Onboard |
| Modulation | QPSK, 16QAM, 64QAM | ||
| MIMO | 2x2 MIMO | Power | |
| Anti-jamming | Automatically frequency hopping | ||
| RF Power | 10watts | Voltage Input | DC 24V±10% |
| Latency | One Hop Transmission≤30ms | Power Consumption | 30watts |
|
Frequency |
Interafce |
||
| 1.4Ghz | 1420-1530MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | Ethernet | 1xJ30 |
| Note: The frequency band supports customized | Power Input | 1 x J30 | |
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
| Comuart | |
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | TTL |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format. |
|
Interface Definition
|
|
