| Brand Name: | IWAVE |
| Model Number: | Defensor-T9 |
| MOQ: | 1Set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

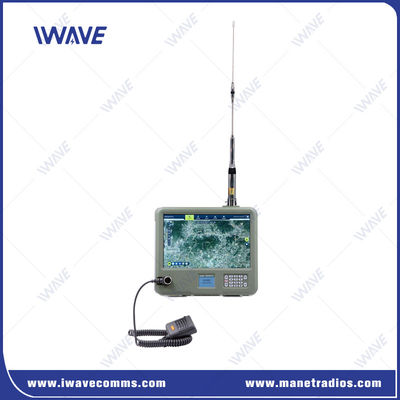

Portable Mobile Monitoring and Command Center
Introduction
Compared with traditional command and dispatcher, T9 temporary command centers can be quickly established at the scene of various emergencies, the light weight(3kg) and 24hours continuously working time with big capacity battery, which enable team leaders can move freely on-site and get all the vital information quickly.
As a dispatching platform, it not only supports multimedia dispatching, but also offer users to directly access maps through IP to display radio location in real time and provides point trajectory query to facilitate tracking of radio location.

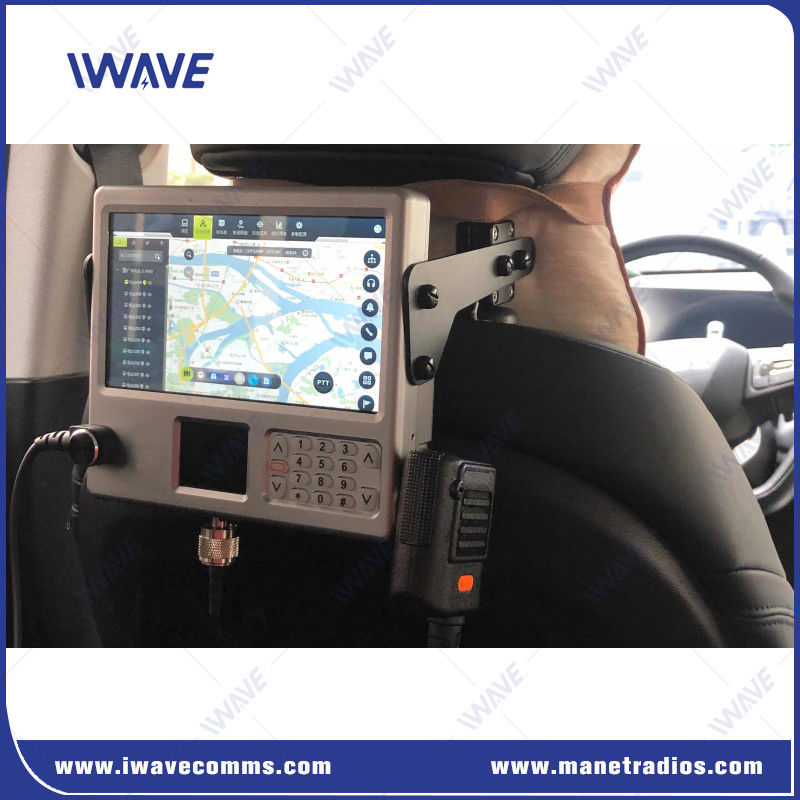

As a radio terminal, T9 is designed with a palm microphone offering multiple calling methods such as single call and group call. The external palm microphone enable officers to easily and quickly give a voice command.
Features
24-Hours Continuous Working
● The T9 has a built-in backup battery that ensures two days of standby time during a power outage, or 24 hours of continuous operation during busy communications
● Features a standard 110Wh battery that supports fast recharging.
Ultra Portable
●The light weight and small size enable T9 can be easily taken by hands in different envoironment.
Data Statistics & Voice Recording
●Data Statistics: Detailed history for each radios track and GPS location.
●Voice Recording: Whole network voice/conversation recording.Voice recording is designed for capturing, storing and sharing audio evidence gathered from the field, which will greatly help to settle disputes, provide key information for analysis, and maximize management effectiveness.
Versatile Voice Calls
● Besides the built-in microphone and speaker, the T9 can also connect to external palm microphone to initiate a single call or a group call.
Multiple Connectivities

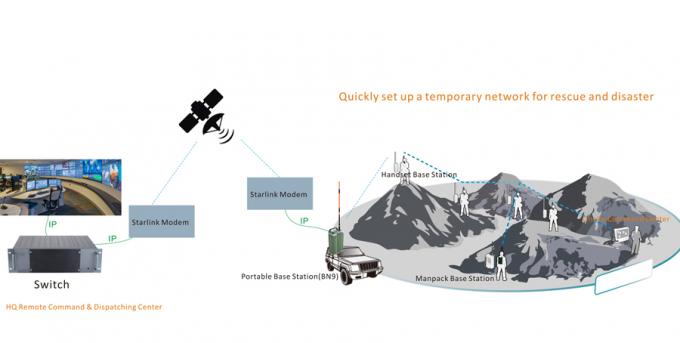

●T9 integrates the WLAN modules and supports satellite links. The remote command center can directly access maps through IP to achieve radio location in real time and point trajectory query to facilitate tracking of radio location for improved situational awareness.
Rugged and Durable
● Aluminium alloy shell, rugged industrial keyboard, plus multifunction keys and IP67 protection design ensure easy operation and long service life in harsh environments.
Specifications
| Portable On-Site Command And Dispatch Center(Defensor-T9) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 25W(2/5/10/15/20/25W adjustable ) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Case Material | Aluminum Alloy | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 257*241*46.5mm(without antenna) | Audio Distortion | 5% |
| Weight | 3kg | Environment | |
| Battery | 9600mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | VHF: 28h(RT, max power) UHF1: 24h(RT, max power) UHF2: 24h(RT, max power) |
Storage Temperature | -40°C ~ +85°C |
| Operation Voltage | 10.8V(rated) | IP Grade | IP67 |
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz/Digital | TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
