| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |
Multi Hop Wireless Emergency Radio Communication For Mission Critical
Introduction
RCS-1 is a rugged, small, and lightweight tri-channel radio that provides users with tactical command and control communications in a variety of challenging radio-operating environments. Using the VHF, RCS-1 provides narrowband MANET coverage, regardless of the environment, and superior voice and data communications across harsh multipath and highly dynamic environments, such as shipboard, caves and urban operational settings.
Features
High power Radio capacity 20W
AES encrypted waveform
Removable/Re-chargeable Battery
Supports VHF, UHF Communications
Embedded GPS and Beidou
Independency – allow independent operation without any access to public network
Multi bubble – allow'box to box' communication using a single frequency band for coverage extension and multi-user groups communication
Advanced application – integrated Mission Critical for voice communication
Immediate networking in the face of unforeseen circumstances
Infrastructure-less MANET, Self-Forming, self-healing
Fast deployment, create network in seconds

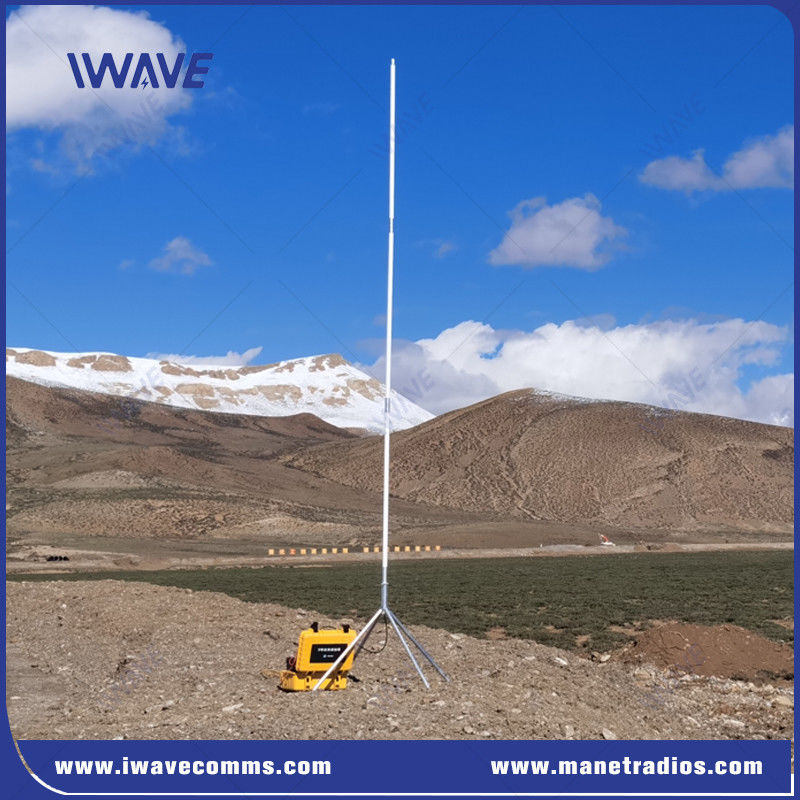

In emergency situations, every second counts. The RCS-1 supports push-to-start for quickly and automatically establishing an independent network after power-on so as to efficiently extend radio coverage.
Bubble-to-bubble Network

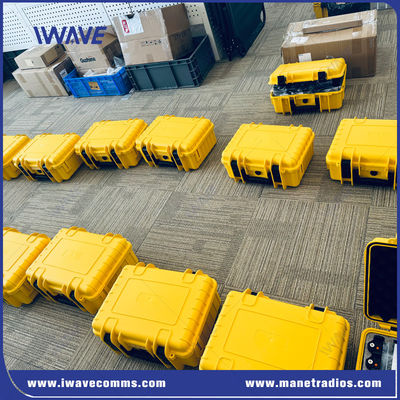

Each box contains a portable base station and 8units handsets and 4pcs standby battery. multiple MANET Radio stations automatically communicate each otherto create a virtual voice communication network. All handset radio devices can talk together inside the virtual bubble. Multiples hops can be created.The LTE box is ideal for vehicle mounted solution. It can be powered by the battery of the vehicle and be mounted in a rack or in a car boot.
Specifications
| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
Video
Video
Video
|
|
