| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |
Fast Deployment Tactical MANET Radio Suite For Rescue and Disaster Response
Introduction

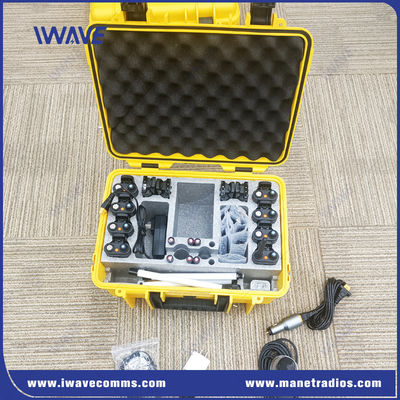

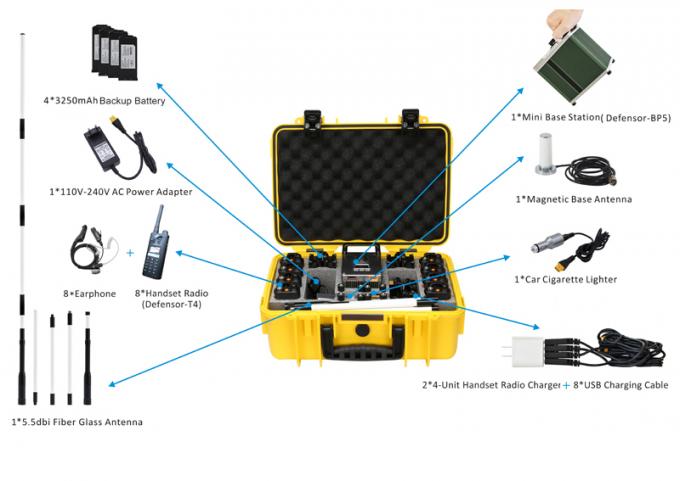

When people perform missions in a hostile environment, Once the special event happend, the box can rapidly build a voice communication network. The box already consists all the units required including different types of antennas, portable base stations, handheld radios, batteries and the standby batteries, micrphones, battery charger.
The base station is light weight and mini size, it can be put any location required and multiple units can be turned on to extend the communication network or cover the blind spot.
Features
Multi-set base stations automatic combination for large communciation system
Supports Individual Call, Group Call and All call to realize cross-department collaboration.
After a special event happened, emergency people carried IWAVE RCS-1 box come from different locations, department or teams arrive at same site.
All of their emergency boxes can be rapidly deployed and builds a whole communication system without any manual configuration.
Application
Emergency event response
Rescue and disaster response
Public Safety Management
VIP Security
Disaster Relief
Specifications
| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
