| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |
Tactical MANET Radio Box For Emergency Communication
Introduction

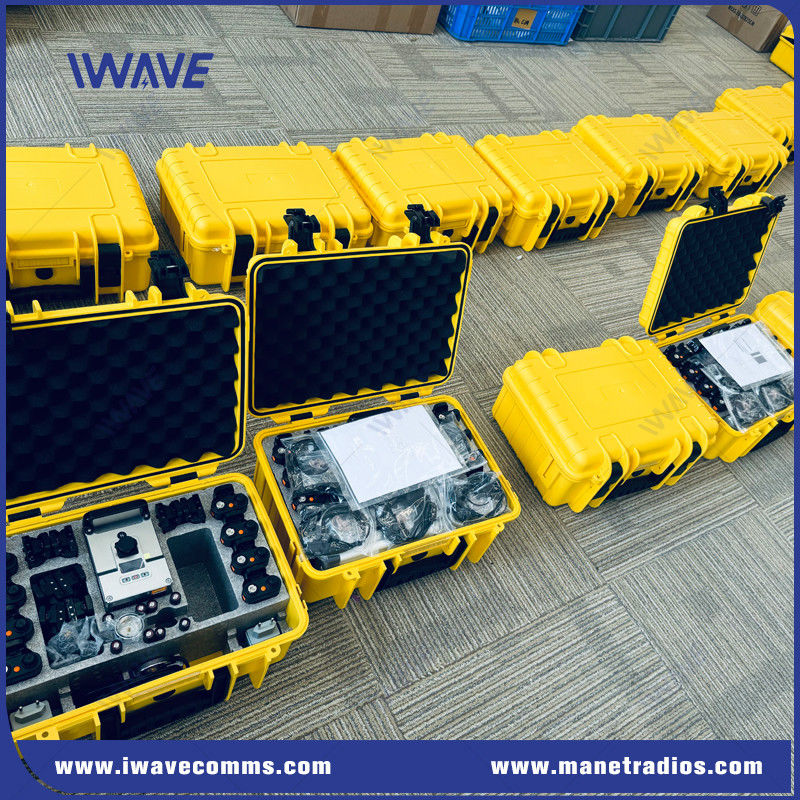

When people perform missions in a hostile environment, Once the special event happend, the box can rapidly build a voice communication network. The box already consists all the units required including different types of antennas, portable base stations, handheld radios, batteries and the standby batteries, micrphones, battery charger.
IWAVE Tactical MANET box is all-in-one solution that provides tactical communication in the field. It is designed for Public safety, Military, Disaster recovery or any other first responder. It is easy to start and support push-to-talk functionality.
Features
High power Radio capacity 25 W
Compact and light weight vehicle mount design
Portable – easily carried out of the vehicle
Independency – allow independent operation without any access to public network
Multi bubble – allow 'box to box' communication using a single frequency band for coverage extension and multi-user groups communication
Advanced application – integrated Mission Critical for voice communication
Immediate networking in the face of unforeseen circumstances
Lightweight, portable and quick to assemble
Independent network with a high level of security
Bubble-to-bubble Network
Each box contains a portable base station and 8units handsets and 4pcs standby battery. multiple MANET Radio stations automatically communicate each otherto create a virtual voice communication network. All handset radio devices can talk together inside the
virtual bubble. Multiples hops can be created.
The LTE box is ideal for vehicle mounted solution. It can be powered by the
battery of the vehicle and be mounted in a rack or in a car boot
Specifications

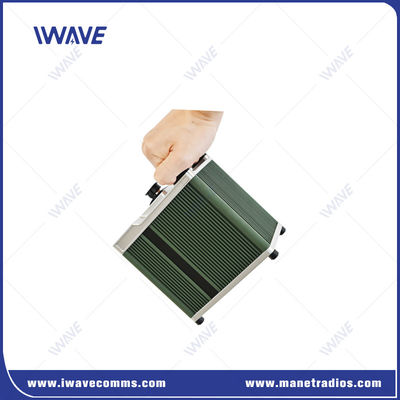

| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
Video
Video
Video
|
|
