| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |

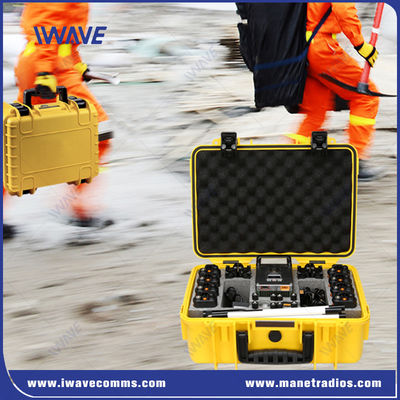

Ad-hoc Six Channels Portable Radio Repeater
Introduction
The unique feature of RCS-1 is dynamic data routing and MANET functionality over narrowband V/UHF radio networks.
Mobile Ad Hoc Network or MANET technology enable the group of base station can connect with each other wirelessly, providing needed network functionality without an existing fixed infrastructure, and can change locations freely as demand.
Features
Long Range LOS/NLOS Voice and Data Communication
Any manet radio base station in RCS-1 can join in or leave the network any time. If longer communication distance is required, just turn multiple units the portable base station and they will be immediately join in the network to extend the communication range as demand.
High Frequency Utilization
1 frequency carrier supports 6ch/3ch/2ch/1ch simultaneously. No need to apply multiple frequency certificate from Telecom Organization for more channels.
Full duplex communication: free the hands of first-responders
Half-duplex and full duplex mixed networking. Press or speak directly via transparent earpiece for duplex voice communication.
Built In Large Capacity Battery For 72Hours Continuous Working
Supports more than 72 hours continuous operation with high traffic and build-in 13AH Li-ion battery.
Precise Positioning
Support Beidou and GPS for positioning
Specifications
| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
Video
Video
|
