| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |
Narrowband MESH Portable Radio Base Station Repeater
Introduction
Defensor-BP5 mobile communications case is a narrowband Mobile ad-hoc networks for a self-healing, mobile and flexible network, bringing narrowband data and voice to mobile troops. Different base stations will wireless communicate with each other to expand the network for larger area. And each base station can join in or leave the system at any time, which ensure the max flexibility for troops on-the-move during operations and tactical communications.
The radios supports VHF and UHF frequency bands. Together with flexible configuration options and routing networks, even thousands of radios in one network are supported. All the handheld radios and base stations and repeaters works in nlos environment will simultaneously to improves compatibility and enables operations on different levels and missions.

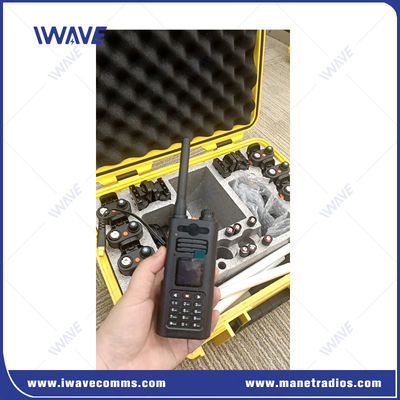

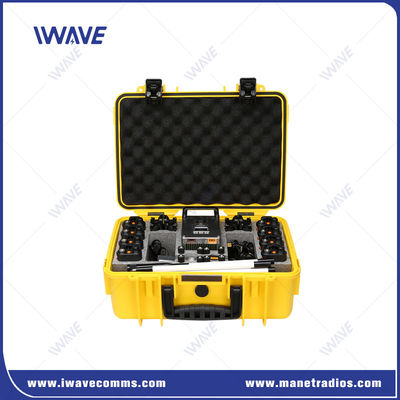

The mobile communications case was designed in a wheeled suitcase with all the accessories needed during emergency events.
Features
|

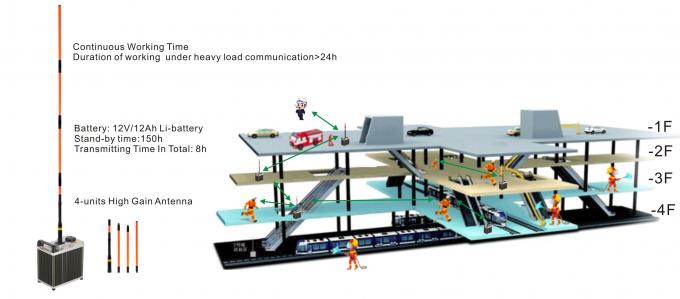

The Ideal Rapid Deployable Communication System During Disasters Full Site Covered Communication Network In 5 minutes Fully configured communication system in record time, easy to transport NLOS Audio Communication Good performance in dense forest, mountains, indoor, caves and underground
Doesnt Rely on Any Infrastructure Special designed for remote area without Telcom infrastructure, GSM and Power.
Flexibility For Extended Network Coverage All the repeater can leave or join in the network at any time. The whole network will automatically and continuously adapt its topology as each base station/repeater move in relation to one another.
Reduce frequency license costs 1-frequency carrier supports 3ch/2ch/1ch simultaneously. No need to apply multiple frequency certificate from Telecom Organization for more channels.

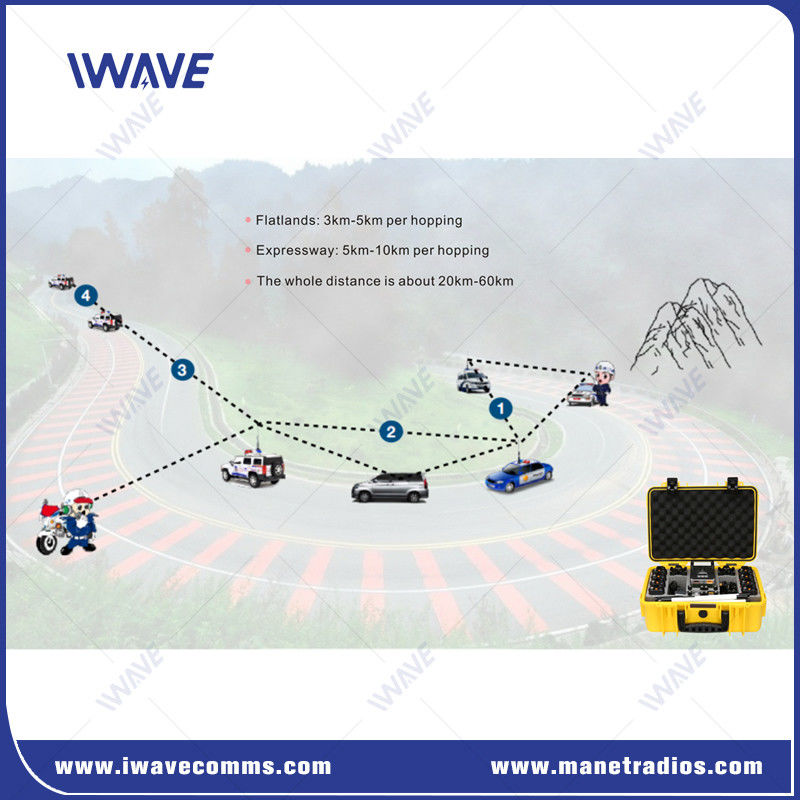

LONG RANGE COMMUNICATION RANGE Wireless ad hoc network is a multi-hop networks. One hop is about 5km-10km |
 |
Specifications
| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
Video
Video
|
