| Brand Name: | IWAVE |
| Model Number: | RCS-1 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T,L/C,D/P |
Portable Tactical VHF MANET Radio Base Station for Secure Voice and Data Communication
Introduction
RCS-1 is a rugged manet radios for secure on-the-move voice and data communication with long range LOS and NLOS.
When perform a variety of missions in a hostile environment, the RCS-1 can be rapidly provides secure self-forming and self-healing voice communication network over greater distances with greater numbers of terminal radios.

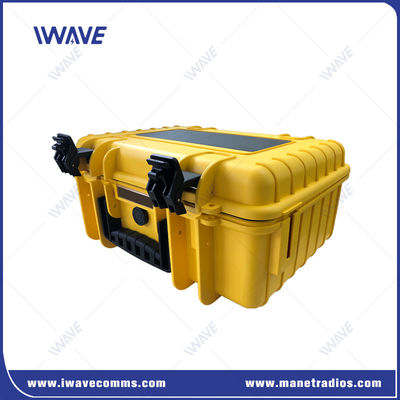

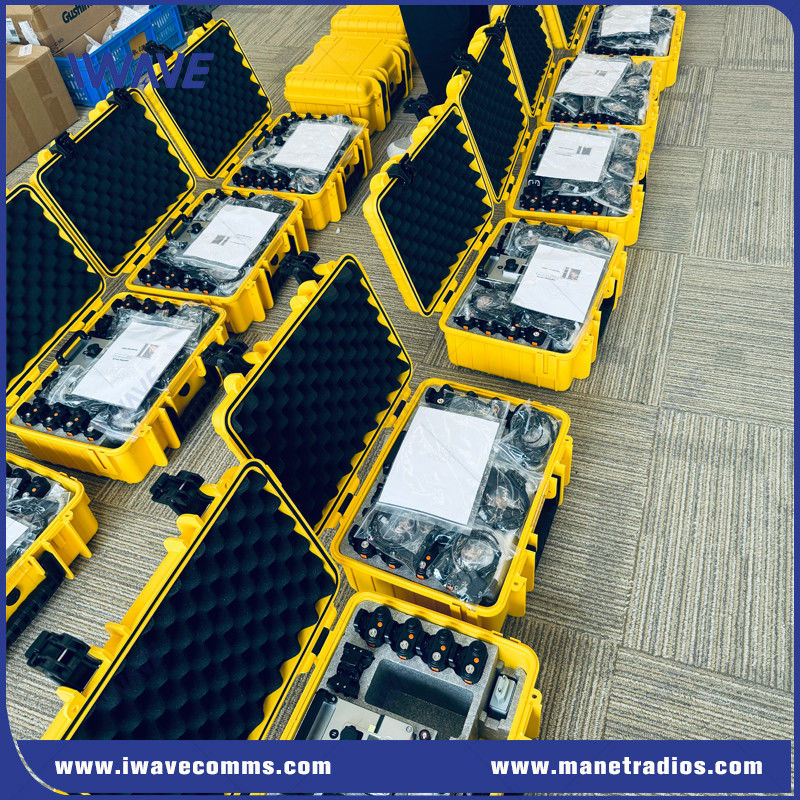

One box design contains all the accessories required such as portable manet base station, handheld radios, different types of antennas, batteries, battery charger, microphones, cables,etc.
Features
Secure voice and data wireless communication via an“infrastructureless"network
RCS-1 is base on wireless ad hoc multi-hop network. Each mobile base station works as a router to forward data packets to each other. The whole system doesnt rely on any fixed infrastructure, such as cellular coverage, fiber cable, IP connectivity, power cable,etc. It is non-routing (where no IP addressing or gateways are needed) for building a self-forming and self-healing voice communication networks.
Strong Resistance to Destruction
Wireless manet radio base stations can be powered by solar energy and built-in batteries. They do not require fiber optics, wired links, or computer rooms. They can withstand major natural disasters, including major earthquakes, floods, wind disasters, etc. At the same time, daily maintenance costs are also greatly reduced.
Self-Forming / Self-Healings Ad-Hoc Networking
MANET functionality over narrowband VHF, UHF radio networks. Each node transmits, receives, and relays information simultaneously.
Specifications
| Mini Portable Base Station(Defensor-BP5) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 5W-20W |
| Channel Interval | 25khz(Digital) | Frequency Stability | ±1.5ppm |
| Modulation | 4FSK/FFSK/FM | Adjacent Channel Power | ≤-60dB (±12.5KHz)≤-70dB (±25KHz) |
| Digital Vocoder Type | NVOC/AMBE | Power Ratio of Transient Switching Adjacent Channel | ≤-50dB (±12.5KHz)≤-60dB (±25KHz) |
| Dimension | 186X137X58mm | 4FSK modulation frequency deviation error | ≤10.0% |
| Weight | 2.5kg | 4FSK Transmission BER | ≤0.01% |
| Battery | 13Ah | Spurious Emission(Antenna Port) | 9khz~1GHz: -36dBm1GHz~12.75Ghz: ≤ -30dBm |
| Battery Life | 72hours | Spurious Emission(Host) | 30Mhz~1GHz: ≤-36dBm1GHz~12.75GHz: ≤ -30dBm |
| Operation Voltage | DC12V | Environment | |
| Receiver | Operating Temperature | -20°C ~ +55°C | |
| Digital Sensitivity (5% BER) | -117dBm | Storage Temperature | -40°C ~ +65°C |
| Adjacent Channnel Selectivity | ≥60dB | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-12dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Spurious Emission(Host) | 30Mhz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| Spurious Emission(Antenna) | 9kHz~1GHz: ≤-57dBm1GHz~12.75GHz: ≤ -47dBm | Horizontal Accuracy | <10metres |
Video
Video
|
