| Brand Name: | IWAVE |
| Model Number: | FD-615MT |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

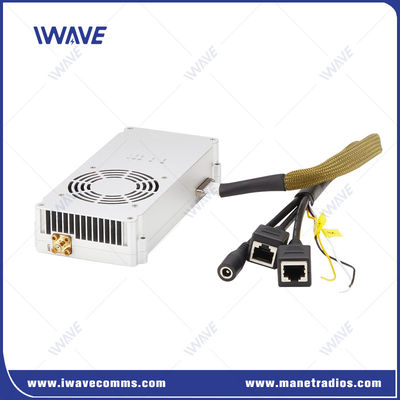

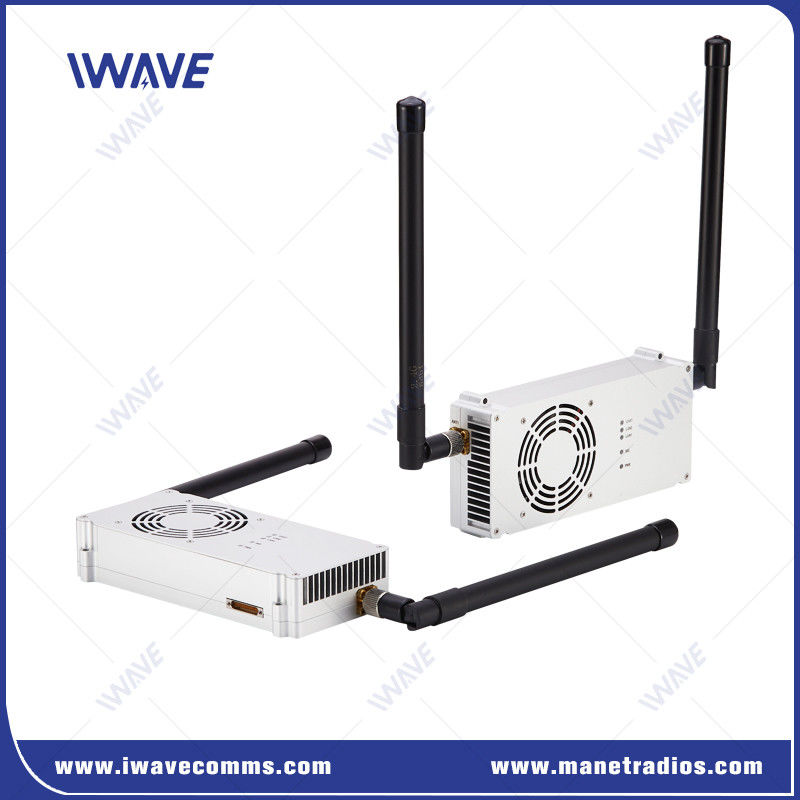

50KM Drone Long Range TCPIP/UDP MIMO IP MESH Link
Introduction
FD-615MT 50KM drone long range TCPIP/UDP MIMO IP MESH link builds a no center, self-forming, self-adapting and self-healing dynamic routing/
automatic relay communication mesh network. It achieves dynamic routing, multi-hop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications.
FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 50km (Air to Ground) with smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH.
It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 280g weight.
It comes in 10W and 20W version to create an encrypted communications link for UAV swarm beyond line of sight in complex RF environments.
Key Features
It designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It doesn't rely on any carrier's base station. Self-forming, self-healing mesh architecture. The network automatically switches routes based on factors such as the number of transceiving and channel environment.
Offers 50km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter. Featuring less than 60ms-80msof latency for 150km, so that you can see and control what's happening live.
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list. Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
The transmit power of each node is automatically adjusted and controlled according to its signal quality. |
|
Application
MESH long-distance communication
Power and hydrological line patrol monitoring
Emergency communications for firefighting, border defense, and military
Maritime communications, Digital oilfield, Fleet formation
Specification
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature | -20º to +55ºC |
| Encryption | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | ||
| Data Rate | 30Mbps (Uplink downlink) | Dimension | 116*70*17mm |
| Sensitivity | 10MHz/-103dBm | Weight | 190g |
| Range | 50km (Air to ground) NLSO 3km-10km(Ground to ground)(Depends on the actual environment) |
Material | Silver Anodized Aluminum |
| Node | 16 nodes | Mounting | Vehicle-mounted/Onboard |
| Modulation | QPSK, 16QAM, 64QAM | ||
| MIMO | 2x2 MIMO | Power | |
| Anti-jamming | Automatically frequency hopping | ||
| RF Power | 10watts | Voltage Input | DC 24V±10% |
| Latency | One Hop Transmission≤30ms | Power Consumption | 30watts |
|
Frequency |
Interafce |
||
| 1.4Ghz | 1420-1530MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | Ethernet | 1xJ30 |
| Note: The frequency band supports customized | Power Input | 1 x J30 | |
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
| Comuart | |
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | TTL |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format. |
|

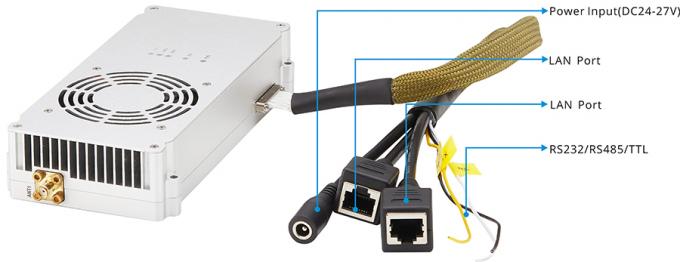

Interface Definition
|
|
| Brand Name: | IWAVE |
| Model Number: | FD-615MT |
| MOQ: | 2units |
| Price: | Negotiable |
| Packaging Details: | Standard Carton Box |
| Payment Terms: | L/C,D/P,T/T |
50KM Drone Long Range TCPIP/UDP MIMO IP MESH Link
Introduction
FD-615MT 50KM drone long range TCPIP/UDP MIMO IP MESH link builds a no center, self-forming, self-adapting and self-healing dynamic routing/
automatic relay communication mesh network. It achieves dynamic routing, multi-hop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications.
FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 50km (Air to Ground) with smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH.
It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 280g weight.
It comes in 10W and 20W version to create an encrypted communications link for UAV swarm beyond line of sight in complex RF environments.
Key Features
It designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It doesn't rely on any carrier's base station. Self-forming, self-healing mesh architecture. The network automatically switches routes based on factors such as the number of transceiving and channel environment.
Offers 50km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter. Featuring less than 60ms-80msof latency for 150km, so that you can see and control what's happening live.
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list. Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
The transmit power of each node is automatically adjusted and controlled according to its signal quality. |
|
Application
MESH long-distance communication
Power and hydrological line patrol monitoring
Emergency communications for firefighting, border defense, and military
Maritime communications, Digital oilfield, Fleet formation
Specification
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature | -20º to +55ºC |
| Encryption | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | ||
| Data Rate | 30Mbps (Uplink downlink) | Dimension | 116*70*17mm |
| Sensitivity | 10MHz/-103dBm | Weight | 190g |
| Range | 50km (Air to ground) NLSO 3km-10km(Ground to ground)(Depends on the actual environment) |
Material | Silver Anodized Aluminum |
| Node | 16 nodes | Mounting | Vehicle-mounted/Onboard |
| Modulation | QPSK, 16QAM, 64QAM | ||
| MIMO | 2x2 MIMO | Power | |
| Anti-jamming | Automatically frequency hopping | ||
| RF Power | 10watts | Voltage Input | DC 24V±10% |
| Latency | One Hop Transmission≤30ms | Power Consumption | 30watts |
|
Frequency |
Interafce |
||
| 1.4Ghz | 1420-1530MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | Ethernet | 1xJ30 |
| Note: The frequency band supports customized | Power Input | 1 x J30 | |
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
| Comuart | |
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | TTL |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format. |
|
Interface Definition
