| Brand Name: | IWAVE |
| Model Number: | FIM-2410 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
10km Drone Video Transmitter for HDMI Camera and Telemetry
Introduction
FIM-2410 is a 10km drone video transmitter for real time HD video and telemetry data down link with 2.4Ghz band.
Because many wireless signals have broadcasted over the 2.4GHz bands, in order to avoid the interference, FIM-2410 utilizes TDD-COFDM technology and high sensitivity to ensure stable wireless linking in urban and cluttered environments.
Lightweight(93g) embedded bi-directional data link specially designed to enable autonomous operations for commercial and industrial drones.
Features an advanced proprietary encryption mechanism AES128 to prevent unauthorized access to your wireless video feed, and it is also compatible with a wide range of flight controllers, mission software and payloads.
Key Features ● Special algorithm enables 12km with better 1080P image quality ● Connects to Smart monitors via HDMI for living video monitoring ● Short delay end to end 15ms-30ms ● Supports 2.3Ghz, 2.4Ghz and 2.5Ghz unlicensed bands ● HD video and Telemetry receiver ● Supports Pixhawk2/cube/V2.4.8/4 and Apm 2.8 ● Support Ground Software: Mission planner and QGround ● Drone Communication + Video Processing & Analytics ● Embedded bi-directional data link for autonomous UAVs and drones ● Ethernet interface support TCPIP/UDP ● CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation ● Working Temperature: -40℃—+85℃ ● Overall Dimension: 72*47x19mm ● Weight: 93g |
|
Coded Orthogonal Frequency Division Multiplexing (COFDM)
Effectively eliminate multipath interference, resolve the efficiency problem and improve the reliability of transmission.
End to End Low Latency
● Latency from tx to rx less than 33ms.
● CABAC entropy encoding and high compression rate to guarantee high video quality at low bitrate
● Each frame is encoded to same size to ensure no additional latency in wireless channel caused by large I frame.
● Ultra fast decoding to display engine.
Long Range Communication
Advanced modulation, FEC alogrithm, high performance PA and ultra sensitive receiver RF module to keep a stable and long range wireless link between air unit to ground control station.
-40℃~+85℃ working temperature
All chips and electronic components are special designed with industrial grade tolerating -40℃~85℃

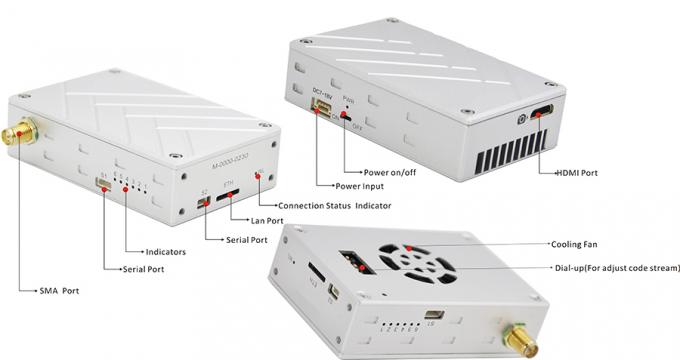

Various Ports
FIM-2410 UAV video transmitter offer various ports HDMI, LAN and two bi-directional serial ports. These ports enable HD video and telemetry data to be transmitted upto 10km between the ground station and air unit. The serial port is designed to be used with the Cube Autopilot, pixhawk 2/V2.4.8/4 , Apm 2.8.
Application
Drones with real time wireless video streaming link have a variety of applications in photography, surveillance, agriculture, disaster rescue and transporting food in remote or difficult area of cities.
Specification of Drone Video Transmitter
| Frequency | 2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 1Watt (Air to ground 10-16km) |
| Power Consumption | TX: 10Watts |
| RX: 6Watts | |
| Frequency Bandwidth | 4/8MHz |
| Latency | ≤15-25ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz, -95dbm@8Mhz |
| Video Color Space | Default 4:2:0 |
| Antenna | 1T1R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264+H.265 |
| Bitrate | Up to 115200bps (Software adjustment) |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 10km-12km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL |
| Power supply | DC 7- 18V |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows * 1 | |
| S1 TTL bidirectional serial port x1 | |
| Power Input x1 | |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Temperature Range | Operating temperature: -40°C ~+ 85°C |
| Storage temperature: -55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 72*47*19mm |
| Weight | Tx: 93g/Rx: 93g |
Package
|
|
