| Brand Name: | IWAVE |
| Model Number: | FPM-8416 |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

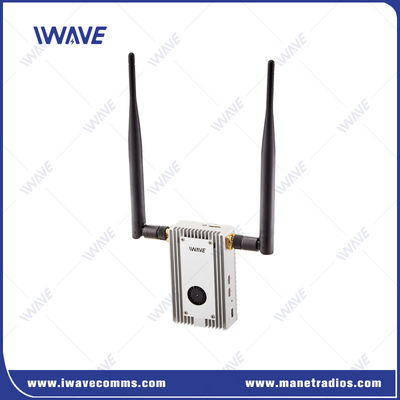

16km Drone Transmitter Receiver With 800Mhz And 1.4Ghz For Video And Data
Description
FPM-8416 is a lightweight drone video transmitter embedded bi-directional data link and specially designed to enable autonomous operations for commercial and industrial drones. It allows you to wirelessly control and real time video monitoring the UAV/Drone at a range of up to 10miles.
Using the core of 4th generation mobile communication COFDM multi carrier modulation technique offers outstanding security and performance in harsh environments.
Key Features
|
● Bi-Directional control ● 80ms Latency for 1080P/60 ● 128AES Encrypted ● Support HDMI and IP video input and output ● 1080P/60 video quality at range of 14-16km ● 800Mhz and 1.4Ghz frequency option to avoid crowded 2.4Ghz ● Output HDMI to display for real time monitoring ● 14-16km air to ground full hd video downlink system ● CNC machined aluminum actuator case ● Fully configuration by the customer ● Configure settings by software ● 130g light weight special for drone |
 |
ROBUST LONG-RANGE COMMUNICATION
The FPM-8416 datalink provides full HD video and two way control data communication upto 10miles.
The transceiver utilize COFDM technique for demodulation and provides strong nlos link performance with high fade margin.
SAFE LINK FOR VARIOUS APPLICATION
The wireless communication system supports encryption using an internal AES.128 encryption algorithm (CBC). The encryption block may be bypassed to enable unencrypted mode of operation.
ROBUST UNDER HARSH CONDITIONS
Utilizing FHSS(Frequency-Hopping spread spectrum) anti jamming to ensure a stable link.
Advanced algorithms are used to ensure operation in complex working scenarios.
Various Ports
FPM-8416 HD Image Transmission System is equipped with HDMI, two LAN ports and one bi-directional serial port by which users can get full hd video stream and control the flight with pixhawk at same time.
HDMI port and LAN port make your drone have more camera types option.
Application
Miniature size and weight 130g uav drone video link is ideal for small drones. It has been widely used in police forces, first responders, security services, Oil pipeline inspection, forest fire prevention, high voltage power line inspection, homeland security, traffic management, police technical support units, special forces, military command and control posts, airport, border control, major incident supported.
Specification
| Specifications | |||
| Frequency | 800Mhz | 806~826 MHz | |
| 1.4Ghz | 1428~1448 MHz | ||
| Bandwidth | 8MHz | ||
| RF Power | 0.6watt(Bi-Amp, 0.6watt Peak Power of each power amplifier) | ||
| Transmit Range | 800Mhz: 16km1400Mhz: 14km | ||
| Antenna | 800Mhz | TX:Omni Antenna/25cm Length/ 2dbiRX:Omni Antenna/60cm Length/6dbi | |
| 1.4Ghz | TX:Omni Antenna/35cm Length/3.5dbiRX:Omni Antenna/60cm Length/5dbi | ||
| Transmit Rate | 3Mbps (HDMI Video Stream, Ethernet Signal and serial data share) | ||
| Baud Rate | 115200bps(Adjustable) | ||
| Sensitivity | -106@4Mhz | ||
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction/ video codec super error correction | ||
| End to End Latency | Latency for encoding + transmission + decoding 720P/60 <50 ms 1080P/60 <80ms |
||
| Link Rebuild Time | <1s | ||
| Modulation | Uplink QPSK/Downlink QPSK | ||
| Video Compression | H.264 | ||
| Video Color Space | 4:2:0 (Option 4:2:2) | ||
| Encryption | AES128 | ||
| Start Time | 15s | ||
| Power | DC12V (7～18V) | ||
| Interface | Interfaces on Tx and Rx are same Video input/Output: Mini HDMI*1 Power Input Interface*1 Antenna Interface:SMA*2 Serial*1: (Voltage:+-13V(RS232), 0~3.3V(TTL)² Ethernet: 100Mbps x 3 |
||
| Indicators | Power Wireless Connection Setup Indicator |
||
| Power Consumption | Tx: 9W(Max)Rx: 6W | ||
| Temperature | Working: -40 ~+ 85℃Storage: -55 ~+100℃ | ||
| Dimension | Tx/Rx: 93 x 55.5 x 23.5 mm | ||
| Weight | Tx/Rx: 130g | ||
| Metal Case Design | CNC technology/ double aluminum alloy shell | ||
| Double Aluminum Alloy Shell | |||
| Conductive anodizing craft | |||
|
|
