| Brand Name: | IWAVE |
| Model Number: | FPM-8416S |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/P, T/T |

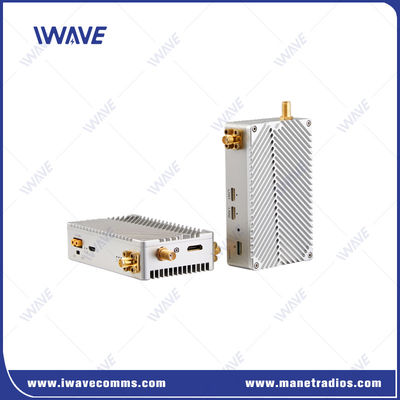

16km SDI HDMI Full HD Digital Image Transmission System with Mavlink Telemetry
Description
FPM-8416S Digital Image Transmission System is a 14-16km full HD uav video link base on COFDM technology. It transmits 1080P 30fps video stream at 80ms low latency and 720P 60fps video stream at 50ms latency. IWAVE FHSS technology makes its frequency bands has the least interference. To avoid the crowded 2.4Ghz, FPM-8416S adopts the UHF 800Mhz and 1.4Ghz.
Besides the video stream, FPM-8416S drone video link also allows the flight control data to be transmitted up to 16km together with video stream. It works well with pixhawk Mission planner and QGround.
Air unit of FPM-8416S is only 130gram(4.6oz). The mini size and better heat dissipation performance is special designed for UAV, drone or other unmanned Systems.
Key Features
● HDMI and SDI Input and Output ● 1*100Mbps Ethernet port for TCPIP/UDP data transmitting ● Remote Control |  |
FPM-8416S Uav Video Link has two bi-directional serial ports for connecting with pixhawk. So you can use FPM-8416S to simultaneously get video from the drone and control the drone via Mission planner and QGround on the ground.
● 800Mhz and 1.4G Band Operation
Two frequency options 800MHz and 1.4GHz so you can avoid the 2.4Ghz signal congestion.
● Coded Orthogonal Frequency-Division Multiplexing (COFDM)
Effectively eliminate multi-path interference under long-distance transmission and enable FPM-8416S drone video transmission link has strong stability for long range.
● FHSS for Anti-interference
Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.
During working FPM-8416S uav digital video transmitter will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list.
● Encrypted Transmission
FPM-8416S UAV video link employs AES128 for the video encryption to avoid some one intercept your video stream without authorization.
Various Ports
FPM-8416S digital drone video link is equipped with HDMI port, SDI port, two LAN ports and one bi-directional serial port by which users can get full hd video stream and control the flight with pixhawk at same time.
Application
Wireless drone video transmitters is the “eye” drone pilot for critical applications such as intelligence, surveillance and reconnaissance need to transmit live HD video to make a quickly response. Besides that, COFDM video transmitter for UAV also act important role in process industry & mining, drone delivery, infrastructure inspections and first responders to enables quicker, more efficient decision.
Specification
| 800Mhz | 806~826 MHz | |
| 1.4Ghz | 1428~1448 MHz | |
| Bandwidth | 8MHz | |
| RF Power | 0.6watt | |
| Transmit Range | 800Mhz: 16km1400Mhz: 14km | |

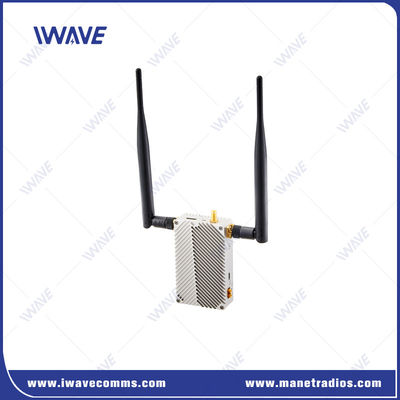

| Antenna | 800Mhz | TX: Omni Antenna/25cm Length/ 2dbi RX: Omni Antenna/60cm Length/6dbi |
| 1.4Ghz | TX: Omni Antenna/35cm Length/3.5dbi RX: Omni Antenna/60cm Length/5dbi | |
| Transmit Rate | 3Mbps (HDMI or SDI Video Stream, Ethernet Signal and serial data share) | |
| Baud Rate | 115200bps(Adjustable) | |
| Sensitivity | -106@4Mhz | |
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction/ video codec super error correction | |
| End to End Latency | Latency for encoding + transmission + decoding720P/60 <50 ms1080P/60 <80ms | |
| Link Rebuild Time | <1s | |
| Modulation | Uplink QPSK/Downlink QPSK | |
| Video Compression | H.264 | |
| Video Color Space | 4:2:0 (Option 4:2:2) | |
| Encryption | AES128 | |
| Start Time | 15s | |
| Power | DC12V (7～18V) | |
| Interface | Interfaces on Tx and Rx are same ●Video input/Output: Mini HDMI×1 ●Video input/Output: SDI(SMA)×1 ●Power Input Interface×1 ●Antenna Interface: SMA×2 ●Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL) ●Ethernet: 100Mbps x 3 | |
| Indicators | ●Power ●Wireless Connection ●Setup Indicator | |
| Power Consumption | Tx: 9W(Max) Rx: 6W | |
| Temperature | ●Working: -40 ~+ 85℃ ●Storage: -55 ~+100℃ | |
| Dimension | Tx/Rx: 93 x 55.5 x 23.5 mm | |
| Weight | Tx/Rx: 130g | |
| Metal Case Design | CNC technology/double aluminum alloy shell | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
|
|
