| Brand Name: | IWAVE |
| Model Number: | FDM-66MN |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
Software Defined Radios (SDRs) For UAV And Drones Video And Mavlink
Introduction

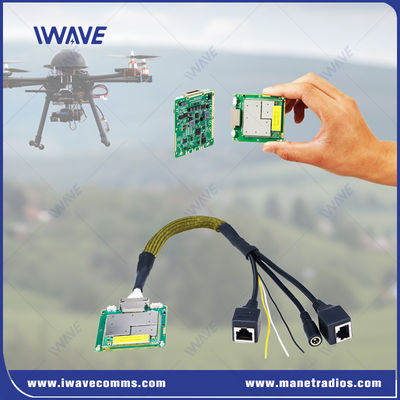

FDM-66MN is the most advanced broadband digital data link designed for mobile robotics and unmanned systems. It provides a secure wireless link in triple frequency 800Mhz/1.4Ghz/2.4Ghz management software selectable.
FDM-66MN provides a long-range and high-throughput wireless video and telemetry communications between one or more mobile units and a control station in off-grid and disconnected environments.
Obtain serial port information via IP allows one control station to control multiple mobile robotics. It is particularly suited to use on swarming drones, UGV, unmanded vehicles and other short to medium range robotics applications.
Key Features
High Data Rate
Uplink and downlink speeds of 30Mbps.
Long Communication Distance
High Security
Utilizes proprietary waveforms along with AES 128 encryption for enhanced security.
Easy Integration
API Documentation Provided
FDM-66MN offers API support for compatibility with various operating systems and platforms.
Application
The compact, lightweight, and software-defined radio link module serves as a dependable communication companion for unmanned systems, including Unmanned BVLoS (Beyond Visual Line of Sight) missions, UGVs (Unmanned Ground Vehicles), robotics, UASs (Unmanned Aerial Systems), and USVs (Unmanned Surface Vehicles). The FDM-66MN boasts high-speed, long-range capabilities, enabling simultaneous, high-quality duplex transmission of multiple full HD video streams along with control and telemetry data. When equipped with an external power amplifier, it facilitates communication over a 50km range. Even in congested urban environments with non-line-of-sight conditions, it ensures a communication distance of over 20km.
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES128 Optional Layer-2 |
| Data Rate | Max 30Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 32node |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 60*55*5.7mm |
| Weight | 26g |
| Tri-Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 800Mhz: 806Mhz-826Mhz | |
| 2.4Ghz: 2402-2481 MHz | |

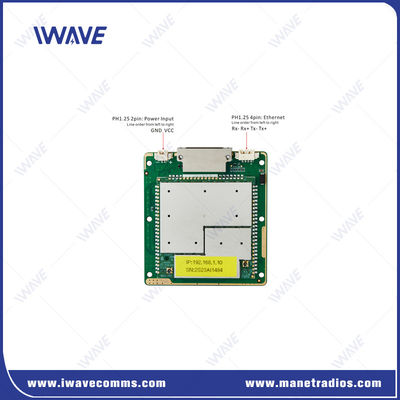

| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 1xCOMUART |
| Power Input | 1*DC5-32V |
|
|
