| Brand Name: | IWAVE |
| Model Number: | FPM-8416S |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
15km SDI And HDMI Drone Video Transmitter 1080P60fps Compatible With Pixhaw
Description

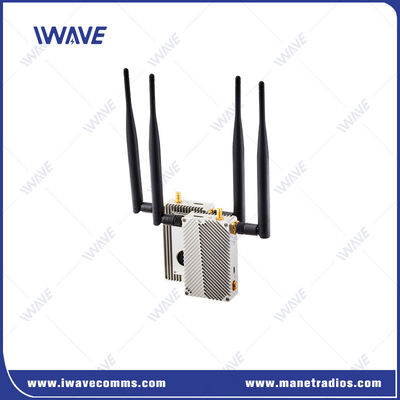

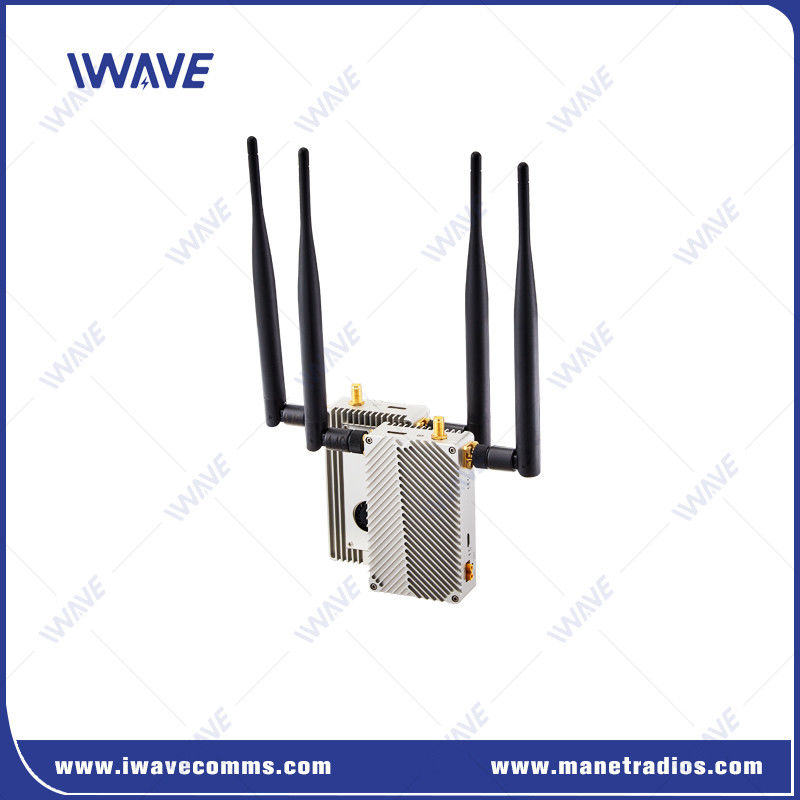

FPS-8408 is a 8km full hd digital image transmission system for drones that combines real-time Full HD video channel and telemetry into one convenient device. With a 1080p60 video streaming, it is ideal for drone downlink.
It utilizes TDD-COFDM technology and frequency-hopping spread spectrum(FHSS) to ensure stable wireless linking in urban and cluttered environment to ensure a stable wireless link.
Besides the video stream, FPM-8416S mini COFDM video transmitter also allows the flight control data to be transmitted up to 8km together with video stream. It works well with pixhawk, Mission planner and QGround.
Key Features
Drone Communication + Video Processing & Analytics+ Embedded bi-directional data link for UAVs
Conductive anodizing craft improves the integrity of RF signals.
|
 |
Various Ports

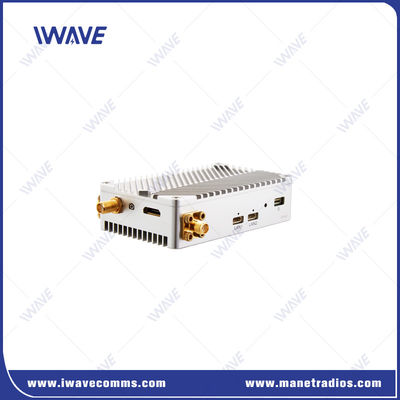

FPS-8408 HD Image Transmission System is equipped with HDMI, two LAN ports and one bi-directional serial port.
The mini HDMI and LAN port enable uav have two types camera option.
The serial port support mavlink telemetry for pixhawk. With it you can control the UAV on ground with a living hd video stream.
Application
Drone Video Transmitter is widely applied to the fields of aerial emergency and disaster relief, fire-fighting command, and electric power inspection, transporting, and receives many good comments of customers.
FPS-8408 is especially have a good performance in following Scenarios.
In the suburbs where communication is not good, it is used to transport coal and mineral materials.
It is an ideal choice for drone emergency fire rescue.
When a natural disaster occurs, it can be applied to ensure emergency communication.
Specification
| Frequency | 800Mhz | 806~826 MHz |
| 1.4Ghz | 1428~1448 MHz | |
| Bandwidth | 8MHz | |
| RF Power | 0.6Watt(Bi-Amp, 0.4watt Peak Power of each power amplifier) | |
| Transmit Range | 800Mhz: 14km | |
| 1400Mhz: 16km | ||
| Transmit Rate | 6Mbps (Video Stream, Ethernet Signal and serial data share) | |
| The best video stream: 2.5Mbps | ||
| Baud Rate | 115200bps(Adjustable) | |
| Rx Sensitivity | -104/-99dbm | |
| Fault Tolerance Algorithm | Wireless baseband FEC forward error correction | |
| End to End Latency | 50-80ms for 1080P60/720P60 video encoding and decoding | |
| Link Rebuild Time | <1s | |
| Modulation | Uplink QNSK/Downlink QNSK | |
| Encryption | AES128 | |
| Start Time | 15s | |
| Power | DC-12V (7～18V) | |
| Interface | Interfaces on Tx and Rx are same | |
| Video input/Output: Ethernet×3 | ||
| Power Input Interface×1 | ||
| Antenna Interface: SMA×2 | ||
| Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL) | ||
| Indicators | Power | |
| Ethernet Status Indicator | ||
| Wireless Connection Setup Indicator x 3 | ||
| Power Consumption | Tx: 4W(Max) | |
| Rx: 3W | ||
| Temperature | Working: -40 ~+ 85℃ | |
| Storage: -55 ~+100℃ | ||
| Dimension | Tx/Rx: 57 x 55.5 x 15.7 mm | |
| Weight | Tx/Rx: 130g | |
| Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
|
|
