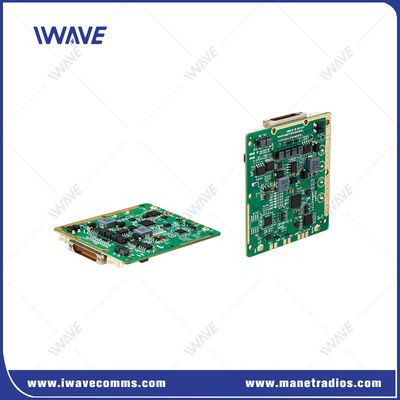

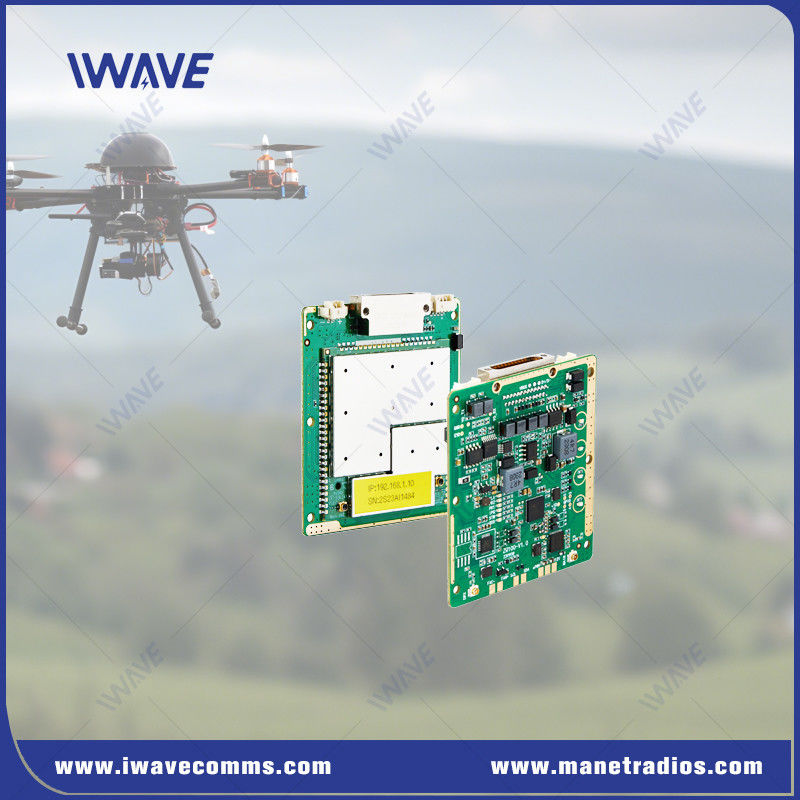

4K Video And Telemetry Data OEM MINI Mesh Modules
Introduction
IWAVE has launched the FD-61MN software defined radio designed to deliver cybersecure mesh networking for mini-sized, 10km mid-range uncrewed communications including high-speed, high-definition video and data.
FD-61MN data link can form ad-hoc networks. Each participant can automatically join, rejoin or leave network. Time slot reallocation can be made in order to provide high bandwidth 4k video streaming and mavlink telemetry data for a specific participant.
Key Features
FD-61MN is an advanced intelligent MANET SDR module that enables the creation of robust, self-forming and self-healing wireless mesh networks. Based on our state-of-the-art technology, it provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.
●High-standard aviation plug-in interface
J30JZ connectors have the advantages of small installation space, light weight, reliable connection, good electromagnetic shielding, good impact resistance, etc to ensure a stable and reliable communication.
Configure different pins and sockets to meet various connection and communication needs
●Security
1. ZUC/SNOW3G/AES128 encryption
2. Support end user define password
●Wide Power Input
Wide voltage input: DV5-32V
●Miniature Design For Easy Integration
1. Dimension: 60*55*5.7mm
2. Weight: 26g

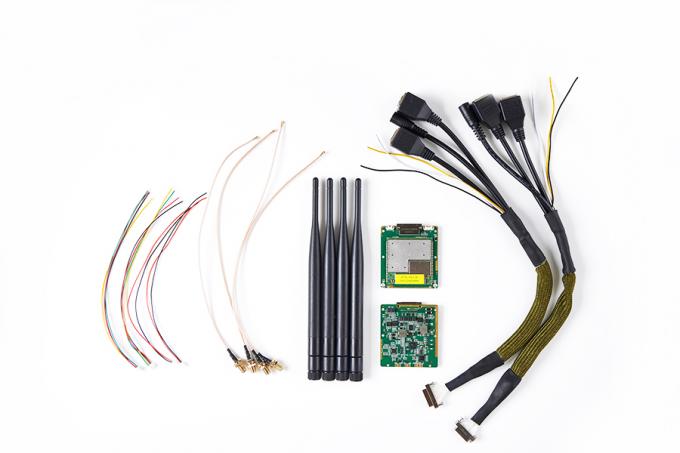

3. IPX RF Pot: Adopts IPX to replace the traditional SMA connector for space saving
4. J30JZ connectors save much pace for integration with small space requirements
Application
Mini UAS
UAV swarm
Drone UAS
UGV
Ethernet Wireless Extension
Wireless Telemetry
NLOS Wireless Video Transmitting
Wireless Control Systems
Specification
| GENERAL | ||
| Technology | MESH base on TD-LTE Wireless technology standard | |
| Encryption | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| Data Rate | 30Mbps(Uplink and Downlink) | |
| Adaptive average distribution of system rate | ||
| Support users to set speed limit | ||
| Range | 10km(Air to ground) 1km-3km(NLOS Ground to ground) | |
| Capacity | 16nodes | |
| Bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz | |
| Power | 25dBm±2 (2w or 10w on request) | |
| Modulation | QPSK, 16QAM, 64QAM | |
| Anti-Jamming | Automatically Cross-Band frequency hopping | |
| Power Consumption | Average: 4-4.5Watts Max: 8Watts | |
| Power Input | DC5V-32V | |
| Receiver Sensitivity | Sensitivity(BLER≤3%) | ||||
| 2.4GHZ | 20MHZ | -99dBm | 1.4Ghz | 10MHz | -91dBm(10Mbps) |
| 10MHZ | -103dBm | 10MHz | -96dBm(5Mbps) | ||
| 5MHZ | -104dBm | 5MHz | -82dBm(10Mbps) | ||
| 3MHZ | -106dBm | 5MHz | -91dBm(5Mbps) | ||
| 1.4GHZ | 20MHZ | -100dBm | 3MHz | -86dBm(5Mbps) | |
| 10MHZ | -103dBm | 3MHz | -97dBm(2Mbps) | ||
| 5MHZ | -104dBm | 2MHz | -84dBm(2Mbps) | ||
| 3MHZ | -106dBm | 800Mhz | 10MHz | -91dBm(10Mbps) | |
| 800MHZ | 20MHZ | -100dBm | 10MHz | -97dBm(5Mbps) | |
| 10MHZ | -103dBm | 5MHz | -84dBm(10Mbps) | ||
| 5MHZ | -104dBm | 5MHz | -94dBm(5Mbps) | ||
| 3MHZ | -106dBm | 3MHz | -87dBm(5Mbps) | ||
| 3MHz | -98dBm(2Mbps) | ||||
| 2MHz | -84dBm(2Mbps) | ||||
| CONTROL DATA TRANSMISSION | |||||
| Command Interface | AT command configuration | Support VCOM port/UART and other ports for AT command configuration | |||
| Configuration | Support configuration via WEBUI, API, and software | ||||
| Working Mode | TCP server mode TCP client mode UDP mode UDP multicast MQTT Modbus | ●When set as a TCP server, the serial port server waits for computer connection. ●When set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP. ●TCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT | |||
| Baud Rate | 1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 | ||||
| Transmission Mode | Pass-through mode | ||||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645 | ||||
|
|
