| Brand Name: | IWAVE |
| Model Number: | Defensor-BL8 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

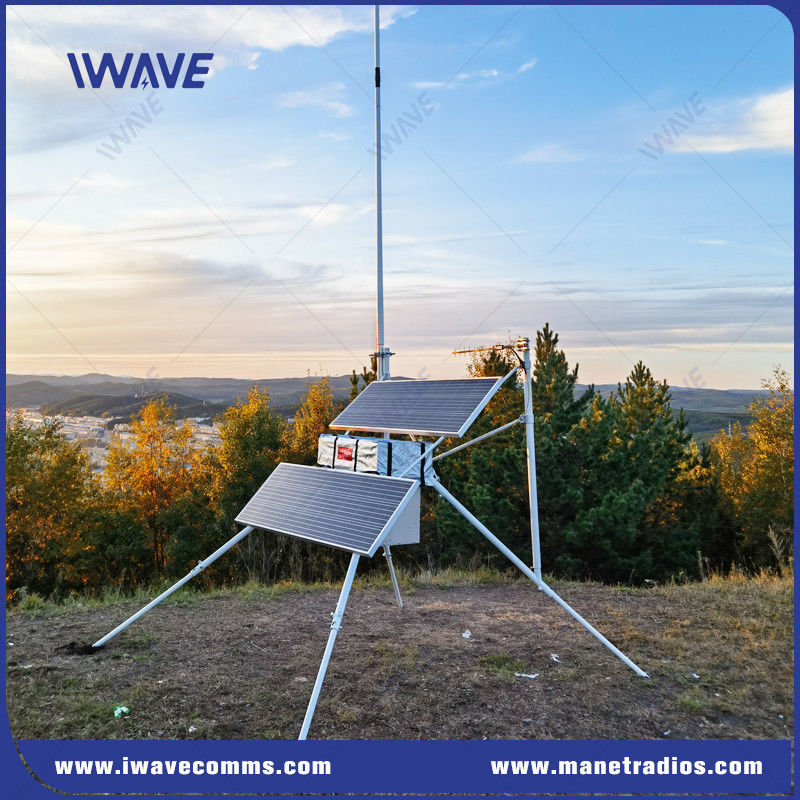

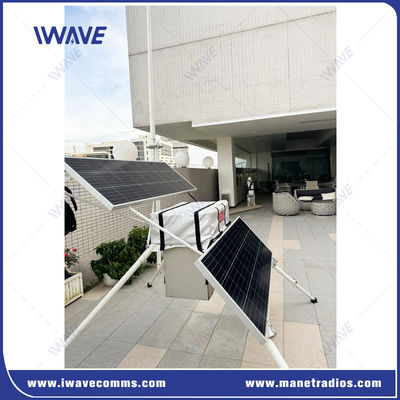

Solar Powered Tactical VHF UHF MANET Radio Base Station
Introduction
Rapidly Deploy a Voice and Data Communication System Covering Hundreds of Kilometers Via an “Infrastructureless" Adhoc Network.
BL8 creates a multi-hop MESH Radio system as soon as it is powered on. In the manet network every base station node connects with each other automatically and wirelessly to build a huge and stable voice communication network.
Features
Large Area Coverage: Hundreds of Kilometers
● One unit BL8 placed at a commanding height can cover 70km-80km.
● Two units BL8 placed at different command height can cover 200km area.
● BL8 also supports multiple hops to expand the manet radio systems coverage to wider area and longer distance.
Self-forming, Self-healing Wireless Network
● All the connection between different types base stations and terminals and command dispatching radios are wirelessly and automatically without requiring any 4G/5G network, fiber cable, network cable, power cable or other infrastructures.
Cross Platform Connectivity
● BL8 solar powered radio base station wirelessly connects with all present IWAVE's manet mesh radio terminals, manet radio base station, manet radio repeaters, command and dispatcher.
The smooth interoperable communications allow the end users on land to to automatically mesh with individuals, vehicles, aircraft and maritime assets to create a robust and huge critical communication system.
Application
Take your network where you need it:
●Enable critical communications in areas with limited or no coverage: rural, mountain/canyons, forests, over water, in-buildings, tunnels, or in disasters/communications outage scenarios.
●Designed for rapid, flexible deployment by emergency responders: easy for first responders to launch the network in minutes.
Specifications
| Solar Powered Adhoc Radio Base Station(Defensor-BL8) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 25W(50W on request) |
| Standards Supported | Adhoc | Frequency Stability | ±1.5ppm |
| Battery | 100Ah/200Ah/300Ah for option | Adjacent Channel Power | ≤-60dB (12.5KHz) ≤-70dB (25KHz) |
| Operation Voltage | DC12V | Spurious Emission | <1GHz: ≤-36dBm >1GHz: ≤ -30dBm |
| Solar Panel Power | 150Watts | Digital Vocoder Type | NVOC&Ambe++ |
| Solar Panel Quantity | 2Pcs | Environment | |
| Receiver | Operating Temperature | -40°C ~ +70°C | |
| Digital Sensitivity (5% BER) | -126dBm(0.11μV) | Storage Temperature | -40°C ~ +80°C |
| Adjacent Channnel Selectivity | ≥60dB(12.5KHz)≤70dB(25KHz) | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-8dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Conducted Spurious Emission | 9kHz~1GHz: ≤-36dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| 1GHz~12.75GHz: ≤ -30dBm | Horizontal Accuracy | <5metres CEP | |
Video
Video
Video
|
|
