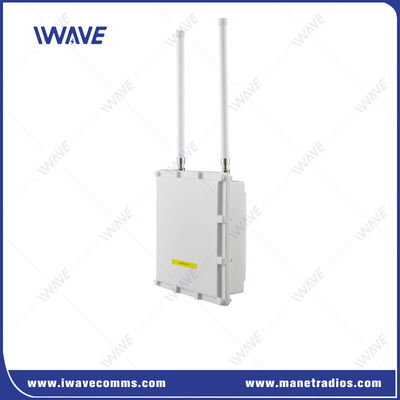

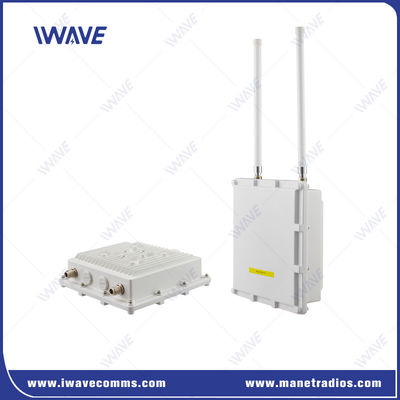

Model: FD-6710T

The FD-6710T is an High-Performance Broadband IP MESH Radio For Real-Time HD Video With Ethernet Connection designed for creating a decentralized, self-forming, self-adapting, and self-healing dynamic routing communication mesh network. It excels in complex environments, providing reliable connectivity even under challenging conditions.Key Features

• Dynamic Routing:Supports multi-hop relay of HD video and multi-channel data among nodes within the same network, ensuring efficient communication.

• Smart Antenna MIMO:

  Utilizes Multiple Input Multiple Output (MIMO) technology to enhance data transmission rates and reliability.

• High Transmission Rate:

  Delivers real-time HD video and broadband Ethernet connections with a transmission rate of 30 Mbps.

• Flexible Bandwidth Options:

  Offers bandwidth choices of 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, and 20 MHz.

• Frequency Options:

  Supports frequency bands of 800 MHz and 1.4 GHz, allowing adaptability to various operational environments.

• Automatic Frequency Hopping:

  Implements technology to mitigate interference, enhancing communication reliability in dense environments.

• Self-Forming and Self-Healing Mesh Architecture:

  Automatically adjusts and repairs the network topology, ensuring continuous connectivity.

• Low Latency:

  Provides end-to-end latency of 60-80 ms, suitable for real-time applications.

• User-Friendly Management:

  Features a WEB UI for easy network management and parameter configuration.

• NLOS Communication:

  Capable of ground-to-ground distances of 10 km to 30 km even in non-line-of-sight (NLOS) conditions.

• Automatic Power Control:

  Optimizes power usage based on network conditions to enhance performance and energy efficiency.

• Supports UDP/TCPIP:

  Facilitates full HD video transmission over both UDP and TCPIP protocols.

• Automatic Frequency Point Control

  After booting, it will try to build network with the pre-stroed frequency points before the last shutdown. If the prestored frequency points are not suitable for building network, it willl automatically try to use other available frequency for network deployment.

• Automatic Power Control

  The transmit power of each node is automatically adjusted and controlled according to its signal quality.

• Frequency-Hopping Spread Spectrum(FHSS)

  Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
