| Brand Name: | IWAVE |
| Model Number: | FD-6705BW |
| MOQ: | 2units |
| Price: | Negotiation |
| Delivery Time: | 15-20working days |
| Payment Terms: | T/T |
Model: FD-6705BW

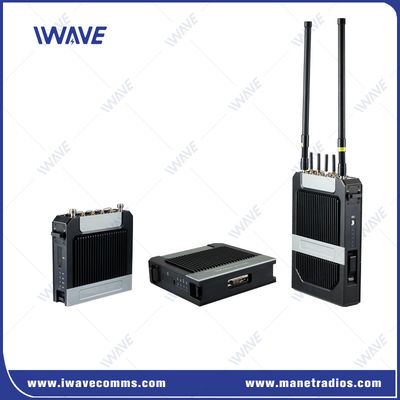

Body-worn MANET IP Mesh wireless Radio for NLOS video communication
The FD-6705BW is a rugged, body-worn mesh transceiver that provides reliable, real-time communication for teams working in challenging environments. Whether used for public safety, military, or field operations, the FD-6705BW ensures that personnel stay connected and can easily share video, audio, and data, enhancing coordination and situational awareness in critical situations. Its versatility, robustness, and range of connectivity options make it an essential tool for any team working in demanding, high-risk environments.
Key Features:
Broadband Wireless Communication:
The FD-6705BW leverages MANET (Mobile Ad-Hoc Network) technology to create a flexible, self-healing mesh network that allows seamless connectivity across a team of individuals. This is ideal for situations where infrastructure is lacking or disrupted, such as in emergency response or military operations.
Real-Time Video and Audio Transmission:

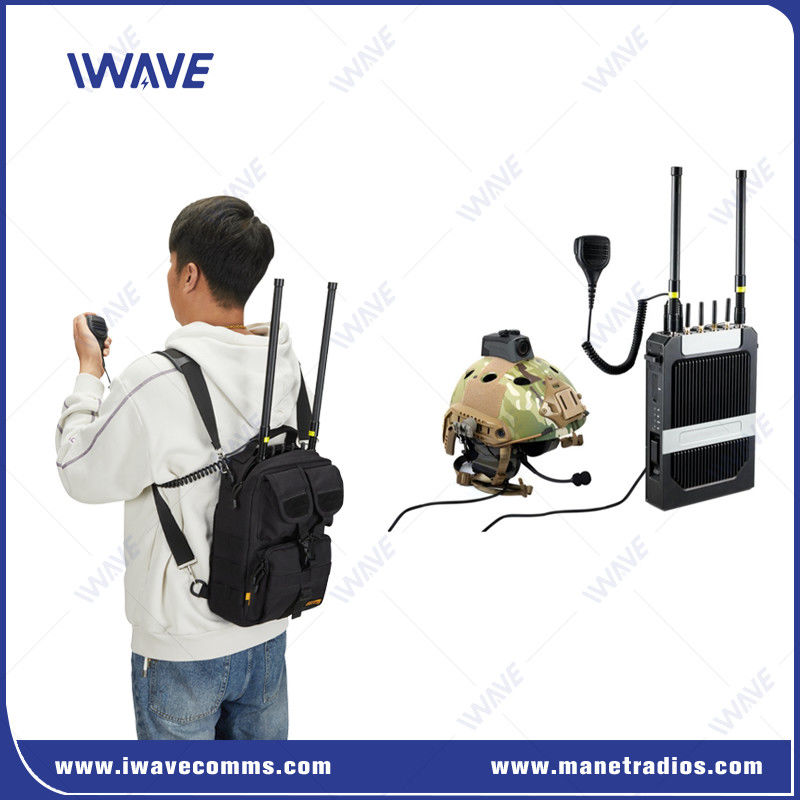

Equipped with (Push-to-Talk) headsets and helmet cameras, the FD-6705BW allows teams to transmit real-time video and audio feeds, ensuring that team members can see and hear each other clearly during field operations. This improves situational awareness and enhances collaboration among team members.
Enhanced Communication Coverage:
The FD-6705BW ensures stable connectivity over a wide operational range, supporting non-line-of-sight (NLOS) communication and providing reliable communication coverage for teams working in difficult environments, such as emergency response situations, crowd control at major events, or field operations in remote areas.
Applications:
The FD-6705BW is ideal for a variety of critical mission scenarios, including:
Public Safety: Ensures reliable communication during disaster response, search and rescue, and other high-risk operations.
Major Events: Supports live video and audio feeds for crowd management, security, and real-time event coordination.
Military and Tactical Operations: Enables real-time communication among team members, enhancing situational awareness and coordination in hostile or urban environments.
Field Operations: Facilitates the sharing of critical information among dispersed teams in locations without reliable infrastructure.
specification
|
Rich Interfaces ●4G Antenna Connector Easy To Carry And Deploy ●312*198*53mm (without antenna) ●3.8 kg (with battery) ●Robust handle for easy carry ●Deployable on the back or vehicle
Stylish Yet Sturdy ●Magnesium-aluminum alloy case ●State-of-the-art craftsmanship ●Anti-corrosion, anti-drop, and anti-heat Various Power Supplies ●7000ma battery (8-hour continuous working, buckle design, fast-charging) ●Vehicle power ●Solar energy
Intuitive And Audible
|
 |
Mission Command Platform
It combines visual intercom technology, real-time video transmission technology and GIS positioning technology to display voice, images, videos, data and the positioning of each MESH node through a single interface.
●
Specifications
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature |
-20 to +55C |
| Encription | ZUC/SNOW3G/AES(128)Layer-2 Encryption | Color | Black |
| Date Rate | 30Mbps(uplink+downlink) | Dimension | 312*198*53mm |
| Sensitivity | 10MHz/-103dBm | Weight | 3.8kg |
| Range | 2km-10km(nlos ground to ground) | Material | Anodized Aluminum |
| Node | 16nodes | Mounting | Bodyworn |
| Modulation | QPSK, 16QAM, 64QAM | Power Input | DC18-36V |
| Anti-jamming | Automatically frequency hopping | Power Consumption | 45W |
| RF Power | 5Watts | Protection Grade | IP65 |
| Latency | 20-50ms | Anti-Vibration | Anti-vibration design for fast moving |
| Frequency | Antenna | ||
| 1.4Ghz | 1427.9-1447.9MHz | Tx | 4dbi omni antenna |
| 800Mhz | 806-826 MHz | Rx | 6dbi omni antenna |
| Interfaces | |||
| UART | 1 x RS232 | LAN | 1xRJ45 |
| RF | 2 x N Type Connector | HDMI | 1 x HDMI video port |
| GPS/Beidou | 1 x SMA | WIFI Antenna | 1 x SMA |
| Indicator | Battery level and network quality | 4G Antenna | 1 x SMA |
| 1x | Power Charge | 1x Power input | |
Video
|
