| Brand Name: | IWAVE |
| Model Number: | FD-6705BW |
| MOQ: | 2units |
| Price: | Negotiation |
| Delivery Time: | 15-20working days |
| Payment Terms: | T/T |

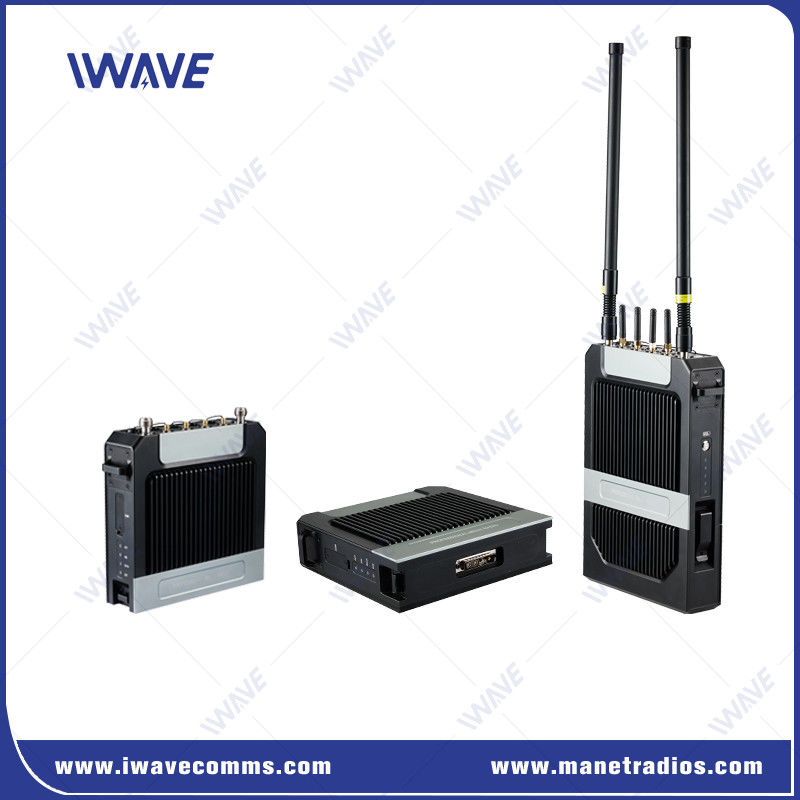

Tactical IP Mesh Radio For Wireless Communication
Tactical IP Mesh Radio For Wireless Communication With Dispatcher System

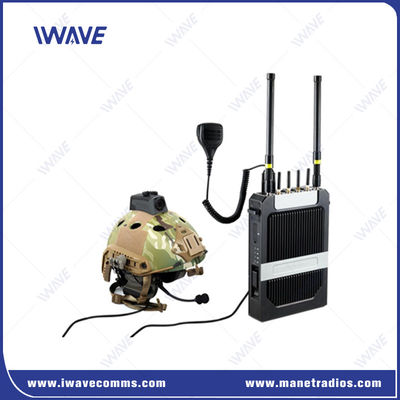

FD-6705BW comes with headsets, helmet cameras, WIFI, 4G and GPS. Standard IP and RS232 interface are also available. The FD-6705BW supports a variety of different camera interfaces including HDMI and IP.
With a wide range of video, data and audio connectivity, It provides wider communication coverage to ensure stable connectivity for public safety, major events, emergency response, field operation, and more.
Key Features:
Cross Platform Connectivity
FD-6705BW can connect with all present IWAVE's MESH models, which allows the end users on land to to automatically mesh with manned and unmanned vehicles, UAVs, maritime assets and infrastructure nodes to create a robust connectivity.
Real Time Video
FD-6705BW offers a variety of different camera interfaces including HDMI and IP. With the IWAVE provided special HDMI cable to connect a helmet camera
()
FD-6705BW comes with a simplified that allows voice communication with other team members to share the critical information.
Mission Command Platform
Visual Command and Dispatching Platform for IP MESH Solution (CDP-100) is an advanced software suite that runs on a desktop or tablet.
Removable Battery for 8hours Continuous Working
Working Hours: 8hours,
Vol: DC28.8V
Capacity: 7000mAh
Applications:
The FD-6705BW is ideal for a variety of critical mission scenarios, including:
Public Safety: Ensures reliable communication during disaster response, search and rescue, and other high-risk operations.
Major Events: Supports live video and audio feeds for crowd management, security, and real-time event coordination.
Military and Tactical Operations: Enables real-time communication among team members, enhancing situational awareness and coordination in hostile or urban environments.
Field Operations: Facilitates the sharing of critical information among dispersed teams in locations without reliable infrastructure.
Interface
|
Rich Interfaces ●4G Antenna Connector Easy To Carry And Deploy ●312*198*53mm (without antenna) ●3.8 kg (with battery) ●Robust handle for easy carry ●Deployable on the back or vehicle
Stylish Yet Sturdy ●Magnesium-aluminum alloy case ●State-of-the-art craftsmanship ●Anti-corrosion, anti-drop, and anti-heat Various Power Supplies ●7000ma battery (8-hour continuous working, buckle design, fast-charging) ●Vehicle power ●Solar energy
Intuitive And Audible
|
 |
Specifications
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature |
-20 to +55C |
| Encription | ZUC/SNOW3G/AES(128)Layer-2 Encryption | Color | Black |
| Date Rate | 30Mbps(uplink+downlink) | Dimension | 312*198*53mm |
| Sensitivity | 10MHz/-103dBm | Weight | 3.8kg |
| Range | 2km-10km(nlos ground to ground) | Material | Anodized Aluminum |
| Node | 16nodes | Mounting | Bodyworn |
| Modulation | QPSK, 16QAM, 64QAM | Power Input | DC18-36V |
| Anti-jamming | Automatically frequency hopping | Power Consumption | 45W |
| RF Power | 5Watts | Protection Grade | IP65 |
| Latency | 20-50ms | Anti-Vibration | Anti-vibration design for fast moving |
| Frequency | Antenna | ||
| 1.4Ghz | 1427.9-1447.9MHz | Tx | 4dbi omni antenna |
| 800Mhz | 806-826 MHz | Rx | 6dbi omni antenna |
| Interfaces | |||
| UART | 1 x RS232 | LAN | 1xRJ45 |
| RF | 2 x N Type Connector | HDMI | 1 x HDMI video port |
| GPS/Beidou | 1 x SMA | WIFI Antenna | 1 x SMA |
| Indicator | Battery level and network quality | 4G Antenna | 1 x SMA |
| 1x | Power Charge | 1x Power input | |
Video
|
|
