| Brand Name: | IWAVE |
| Model Number: | FD-6700WG |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
Tactical Handheld IP Mesh Smart Radio for Video Transmitting In NLOS

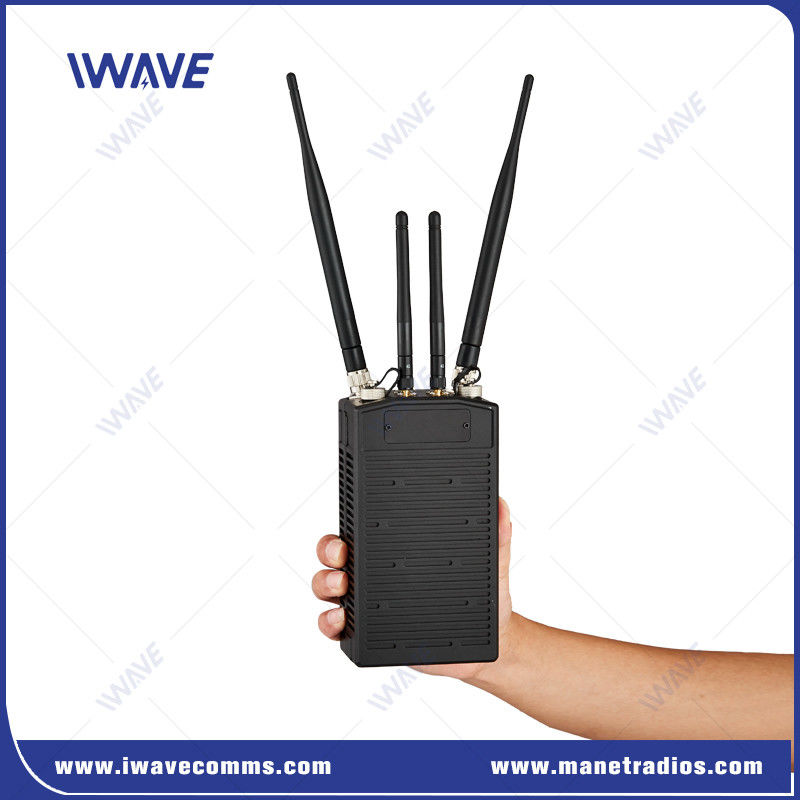

FD-6700WG tactical handheld MIMO MESH radio is an easy-to-carry, easy-to-use Mesh Radio with 4G function. It is special designed to be worn by personnel in order to connect individuals to a mesh network. Its built-in WiFi hot spot makes it easy to connect any internet-enabled device to the same mesh network.
FD-6700WG is built to create powerful, secure networks anywhere, which unites all your critical data sources in real time and enable you access to the most advanced, most scalable Mobile Ad Hoc Network (MANET).
It provides interoperable communications to peopel on the move with other IWAVE IP MESH products such as big power vehicle type IP MESH and 50km drone ip mesh node in Beyond the Line of Sight (BLOS) challenging mountain and jungles environment.
Key Features
800Mhz/1.4Ghz/2.4Ghz selectable on software depend on your application.
One hop distance up to 17KM Chain network can reach longer distance(50KM).

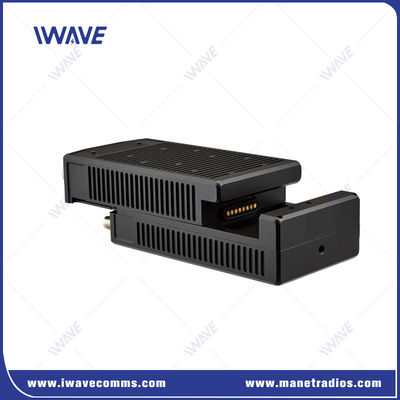

It is equipped with a large-capacity battery, with long-term battery life, and can work continuously for 10 hours. The Capacity of battery is 5400mAh/55.5Wh
According to the channel conditions, adaptively adjust the transmitting and receiving power to reduce power consumption and network interference. It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.
The topology can be switched between linear, star, and mesh topologies or multiple topologies coexisting.
FD-6700WG can smoothly work with IWAVE other type IP MESH device such as high-power vehicle type, airborne type and UGV mount IP MESH Radio forming a big communication network. |
|
MESH Network Management Software
IWAVE self-developed MESH network management software is a Windows-based software suite. It allows manual and automated configuration, management and integration of IWAE IP MESH transmission equipment. With it you can real time get the topology, RSRP, SNR, distance, IP address and other information of all the nodes. The software is WebUi based and you can login it anytime anywhere with IE browser. From the software, you can configure the settings per your requirement, such as working frequency, bandwidth, IP address, dynamic topology, real time distance between nodes, algorithm setting, up-down sub-frame ratio, AT commands, etc.
Application

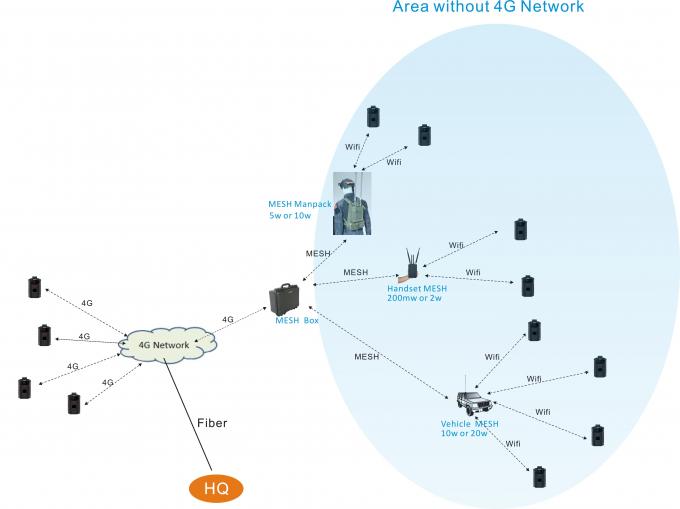

Based on our advanced algorithm, FD-6700WG provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.
It supports a variety of application forms such as manpack / vehicle mounted.
It supports up to 32 nodes, work with cluster mode and form a multifunctional, all-weather communication system.
Specification
| GENERAL | MECHANICAL | ||
| WIRELESS | MESH(Based on TD-LTE terminal access technology) | TEMPERATURE | -25º to +75ºC |
| NETWORKING | MESH | IPRATING | IP65 |
| MODULATION | QPSK/16QAM/64QAM | DIMENSIONS | 175*90*60mm |
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | WEIGHT | 1.3kg |
| DATA RATE | 30Mbps | MATERIAL | Black Anodized Aluminum |
| SENSITIVITY | -103dBm/10MHz | MOUNTING | Handheld Pattern |
| BANDWIDTH | 1.4MHz/3MHz/5MHz/10MHz/20MHz(adjustable) | FREQUENCY (Software Selectable) | |
| RANGE | 1km-3km(LOS)/500meters~1km(NLOS) | 1.4Ghz | 1427.9-1467.9MHz |
| NODE | 32 | 800Mhz | 806-826 MHz |
| MIMO | Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming | 2.4Ghz | 2401.5-2481.5 MHz |
| POWER | 25dBm±2 | POWER | |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| WLAN | WLAN 802.11 b/g/n/a | BATTERY LIFE | 10Hours(External Battery) |
| ANTIINTERFERENCE | Frequency hopping within working frequency band | INTERFACES | |
| NETWORKING TIME | <1min | RF | 2 x TNC2 x SMS(4G+WIFI Ant) |
| START TIME | <30s | ETHERNET | 1xEthernet |
| 4G | 4G full Netcom | POWER | DC INPUT |
| Networking Time | <1min(stable linking) | ||
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 2.4Ghz | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
Video
|
|
