| Brand Name: | IWAVE |
| Model Number: | FD-6705BW |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
Tactical Body Worn IP MESH Radio With Real Voice Communication And HD Video
Description
FD-6705BW broadband wireless MANET Mesh Transceiver in a rugged body worn form, which is designed to quickly establish a reliable network when communications infrastructure does not exist or is not reliable and lives are on the line.

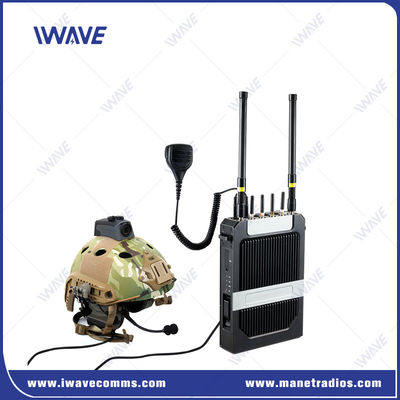

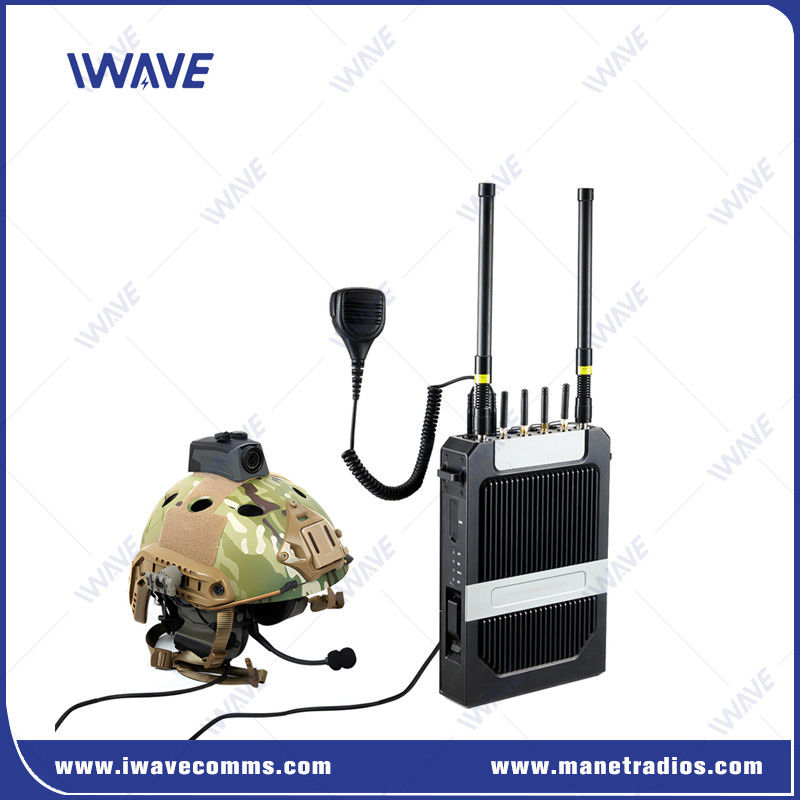

FD-6705BW comes with headsets, helmet cameras, WIFI, 4G and GPS. Standard IP and RS232 interface are also available. The FD-6705BW supports a variety of different camera interfaces including HDMI and IP.
With a wide range of video, data and audio connectivity, It provides wider communication coverage to ensure stable connectivity for public safety, major events, emergency response, field operation, and more.
Teams equipped with the FD-6705BW will stay connected and share critical information as assignments unfold, which enables each members see, hear, and coordinate their team.
Features
L-MESH Technology |  |
Real Time Video
●FD-6705BW offers a variety of different camera interfaces including HDMI and IP. With the IWAVE provided special HDMI cable to connect a helmet camera
()
●FD-6705BW comes with a simplified that allows voice communication with other team members to share the critical information.

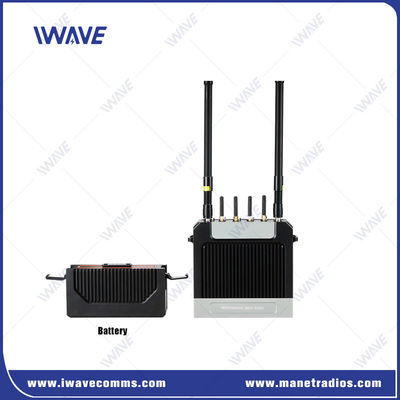

Physical Characteristics
Rich Interfaces

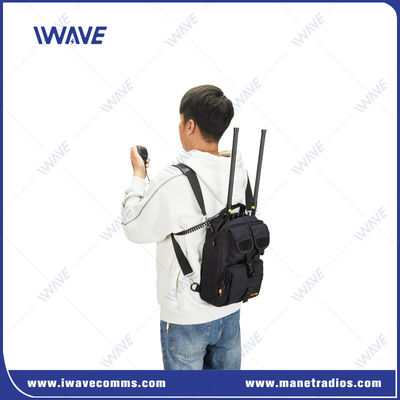

● Port Easy To Carry And Deploy | Stylish Yet Sturdy |  |
Mission Commander: Mission Command Platform
●Visual Command and Dispatching Platform For IP MESH Solution (CDP-100) is an advanced software suite that runs on a desktop or tablet.
●It combines visual intercom technology, real-time video transmission technology and GIS positioning technology to display voice, images, videos, data and the positioning of each MESH node through a single interface.
●It provides the vital information required to make informed real-time decisions.
Specifications
| General | Mechanical | ||
| Technology | MESH based on TD-LTE Technology Standard | Temperature | -20º to +55ºC |
| Encription | ZUC/SNOW3G/AES(128)Layer-2 Encryption | Color | Black |
| Date Rate | 30Mbps(uplink+downlink) | Dimension | 312*198*53mm |
| Sensitivity | 10MHz/-103dBm | Weight | 3.8kg |
| Range | 2km-10km(nlos ground to ground) | Material | Anodized Aluminum |
| Node | 16nodes | Mounting | Bodyworn |
| Modulation | QPSK, 16QAM, 64QAM | Power Input | DC18-36V |
| Anti-jamming | Automatically frequency hopping | Power Consumption | 45W |
| RF Power | 5Watts | Protection Grade | IP65 |
| Latency | 20-50ms | Anti-Vibration | Anti-vibration design for fast moving |
| Frequency | Antenna | ||
| 1.4Ghz | 1427.9-1447.9MHz | Tx | 4dbi omni antenna |
| 800Mhz | 806-826 MHz | Rx | 6dbi omni antenna |
| Interfaces | |||
| UART | 1 x RS232 | LAN | 1xRJ45 |
| RF | 2 x N Type Connector | HDMI | 1 x HDMI video port |
| GPS/Beidou | 1 x SMA | WIFI Antenna | 1 x SMA |
| Indicator | Battery level and network quality | 4G Antenna | 1 x SMA |
| 1x | Power Charge | 1x Power input | |
Video
|
|
