| Brand Name: | IWAVE |
| Model Number: | FD-6710T |
| MOQ: | 2units |
| Price: | Negotiation |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
Model: FD-6710T

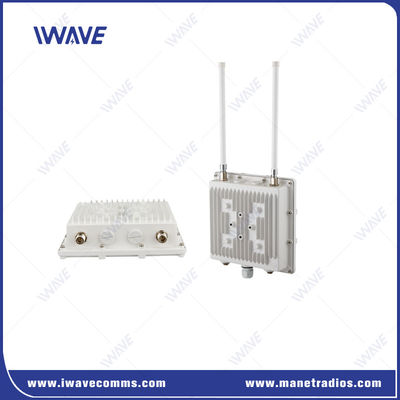

MIMO Broadband IP MESH Repeater For Outdoor
The FD-6710T is a highly reliable and versatile wireless MESH communication system designed to operate in challenging environments. With its dynamic routing capabilities, HD video transmission, and self-healing mesh architecture, it ensures seamless, high-quality communication across remote or obstructed areas, making it essential for military, emergency response, and private network applications.
Key Features:
Dynamic Routing and Multi-Hop Relay:
The FD-6710T supports dynamic routing and multi-hop relay, enabling the transmission of HD video and multi-channel data across various nodes in a complex network. This makes it suitable for environments where mobility and obstacles like buildings or natural terrains (forests, mountains) pose challenges.
Frequency Options:
Supports 800 MHz and 1.4 GHz frequency bands, providing flexibility depending on the specific environmental conditions and application requirements.
Non-Line-of-Sight (NLOS) Capability:
The device offers a 10-30 km NLOS (ground-to-ground) range, making it suitable for challenging terrains and environments where line-of-sight (LOS) is not feasible, such as in forests or mountainous regions.
Low Latency:
The FD-6710T provides low latency (60-80ms) for real-time communication, ensuring minimal delay in video or data transmission—crucial for applications like surveillance, tactical operations, or emergency response.
Full HD Video Transmission:
The FD-6710T supports UDP/TCPIP-based Full HD video transmission, making it ideal for critical communications in private networks, security, surveillance, and remote operations.
Frequency-Hopping Spread Spectrum(FHSS)
Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
Applications:
Tactical Operations:
Ensures reliable, high-speed communication for tactical units in field operations, disaster response, and search and rescue missions, where continuous communication is vital.
Infrastructure-less Communication:
Ideal for temporary deployments where traditional communication infrastructure is unavailable or non-existent, such as events, disasters, or emergency operations.
Specification
|
GENERAL |
|||
| TECHNOLOGY | MESH | MOUNTING | POLE MOUNT |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 | ||
|
MECHANICAL |
|||
| NETWORKING TIME | ≤5s | TEMPERATURE | -20º to +55ºC |
| DATE RATE | 30Mbps (Uplink and Downlink) | Waterproof | IP66 |
| DIMENSIONS | 216*216*70mm | ||
| SENSITIVITY | 10MHz/-103dBm | WEIGHT | 1.3kg |
| RANGE | NLSO 10km-30km (Ground to ground)(Depends on the actual environment) | MATERIAL | Aluminum Alloy |

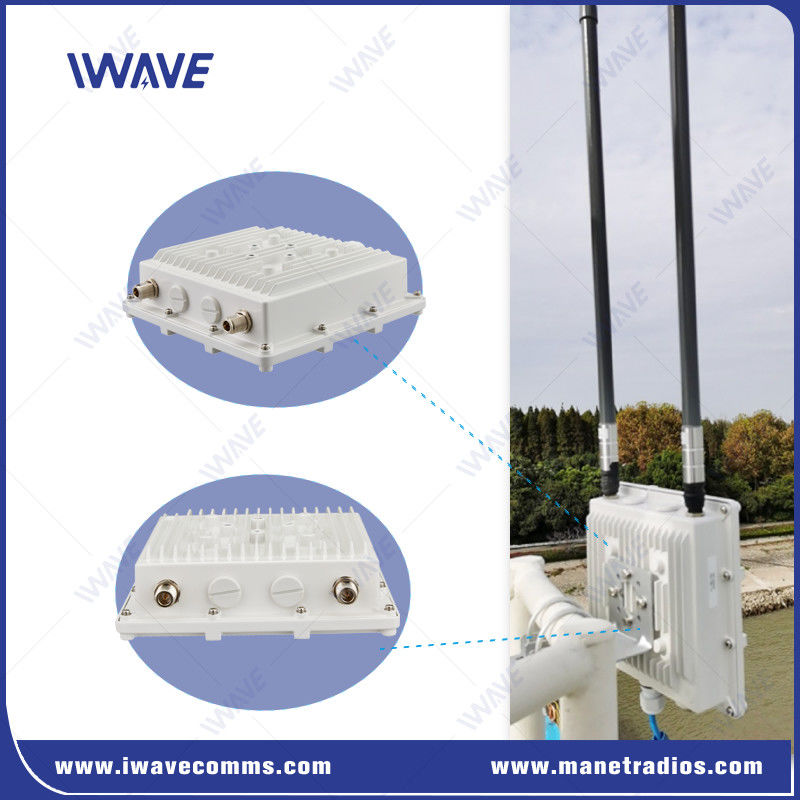

| NODE | 16 nodes | MOUNTING | Pole-mounted |
| MIMO | 2*2 MIMO |
POWER |
|
| POWER | 10watts | VOLTAGE | DC24V POE |
| MODULATION | QPSK, 16QAM, 64QAM | POWER CONSUMPTION | 30watts |
| ANTI-JAM | Automatically frequency hopping |
INTERFACES |
|
| LATENCY | End to END: 60ms-80ms | RF | 2 x N-Type |
|
FREQUENCY |
ETHERNET | 1xRJ45 | |
| 1.4Ghz | 1427.9-1447.9MHz | ||
| 800Mhz | 806-826 MHz | ||
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| INTERFACES | |||
| RF | 2 x N-Type Antenna Port | ||
| PWER INPUT | 1 x Ethernet Port(POE 24V) | ||
| Other | 4*Mounting Holes | ||
