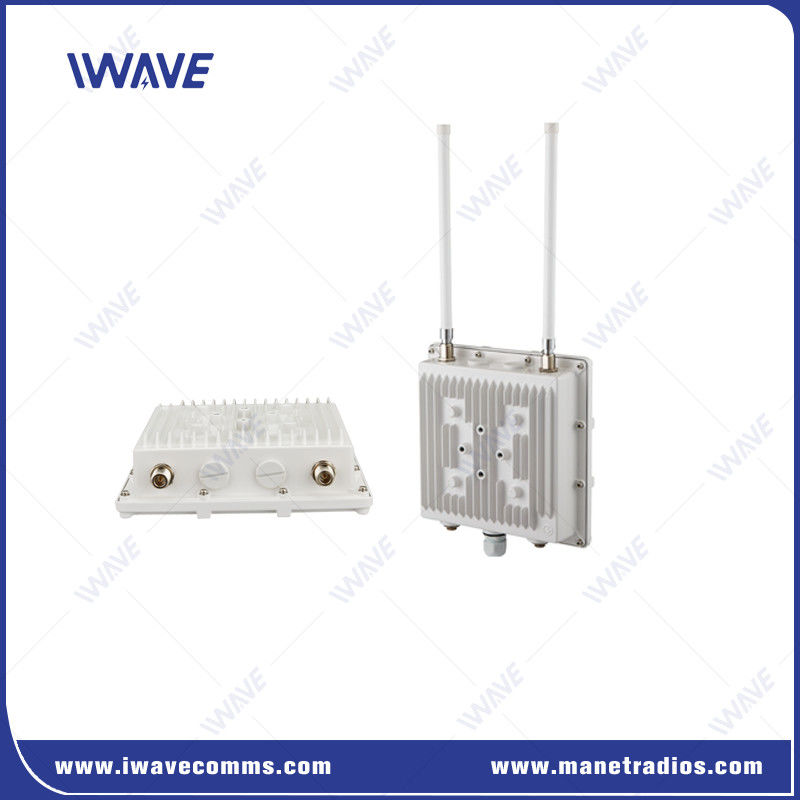

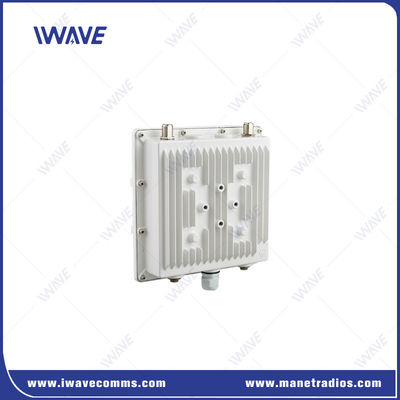

Model: FD-6710T

Real-Time HD Video and Broadband Ethernet Connection IP MESH Radio

The FD-6710T is an IP66-rated outdoor fixed wireless IP MESH link designed to build a self-forming, self-adapting, and self-healing dynamic routing mesh network. It is ideal for environments where communication infrastructure is challenging or unavailable, such as fast-moving operations, dense forests, or non-line-of-sight (NLOS) conditions.

This solution leverages MIMO (Multiple Input Multiple Output) technology and a self-forming packet wireless mesh network (AD-HOC/MESH) to provide real-time HD video and broadband Ethernet connectivity, ensuring reliablecommunication in critical applications.

Key Features:

• Dynamic Routing and Multi-Hop Relay:
  The FD-6710T supports dynamic routing and multi-hop relay, enabling the transmission of HD video and multi-channel data across various nodes in a complex network. This makes it suitable for environments where mobility and obstacles like buildings or natural terrains (forests, mountains) pose challenges.

• High-Speed Communication:
  The device delivers a 30Mbps transmission rate, ensuring the reliable delivery of high-definition video and broadband Ethernet connections, making it highly suitable for critical private networks that require robust, real-time data.

• Frequency Options:
  Supports 800 MHz and 1.4 GHz frequency bands, providing flexibility depending on the specific environmental conditions and application requirements.

• Automatic Frequency Hopping:
  Employing automatic frequency hopping technology, the FD-6710T mitigates interference from external sources, enhancing network stability and reducing communication disruptions.

• Self-Forming and Self-Healing Network:
  The FD-6710T features a self-forming mesh architecture, allowing nodes to automatically join and leave the network. Its self-healing capability ensures continuous communication even if some nodes fail or are obstructed.

Applications:
