IP MESH Radio
Created with Pixso. Handheld IP MESH Radio For Wireless Video Communication In Tactics

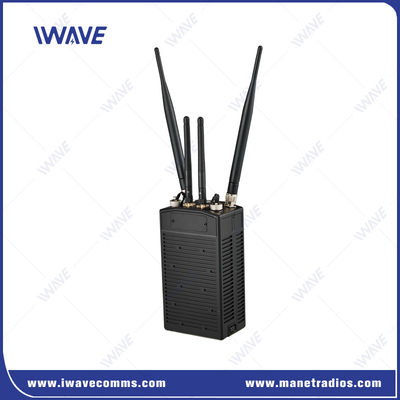

Handheld IP MESH Radio For Wireless Video Communication In Tactics

Brand Name: IWAVE
Model Number: FD-6700WG
MOQ: 2units
Price: Negotiable
Delivery Time: 5-8work days
Payment Terms: L/C,D/P,T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE, MIC
Name:
Handheld IP Mesh Smart Radio
Network:
Mobile Ad Hoc Network
Node:
16 Node
Interference:
FHSS
Video Input:
IP HD Video
Battery Life:
10Hours
Weight:
1.3kg
Data Rate:
30Mbps
Packaging Details:
Standard Carton Box
Supply Ability:
500units/month
Highlight:

Handheld IP MESH Radio

,

Wireless IP MESH Radio

,

IP Mesh Smart Radio

Product Description

Handheld IP Mesh Radio For Video Transmitting In NLOS



Handheld IP MESH Radio For Wireless Video Communication In Tactics

The FD-6700WG Handheld IP MESH Radio is a compact and powerful communication device designed for wireless video transmission and tactical communication in challenging, high-stakes environments. Utilizing an IP MESH network, this device ensures seamless connectivity in real-time, allowing teams to transmit video, voice, and data for enhanced situational awareness and operational effectiveness.

The FD-6700WG Handheld IP MESH Radio is a powerful, flexible, and secure wireless communication tool for tactical operations. Its real-time video and data communication capabilities, combined with a long-range IP MESH network, make it ideal for military, security, and emergency response applications. With its compact design, adaptive power management, and robust network connectivity, the FD-6700WG is an invaluable asset for teams that require reliable communication in challenging environments.



Key Features


  • Real-Time Video Communication:
    The FD-6700WG supports high-quality video streaming, enabling tactical teams to share live visual feeds from the field. This is crucial for decision-making, situational awareness, and coordination during missions.

  • IP MESH Network:
    The device uses a Mobile Ad-Hoc Network (MANET), forming a decentralized network where each unit connects dynamically with others. This ensures robust, secure, and reliable communication even in environments with no fixed infrastructure or challenging terrain, such as urban settings or remote locations.

  • Compact Handheld Design:
    Weighing just a few hundred grams, the FD-6700WG is lightweight and ergonomically designed for easy handheld use. It is perfect for individual personnel, allowing for flexible and mobile communication while on the move.

  • Long-Range Communication:
    With its long-range capabilities, the FD-6700WG offers reliable wireless communication even in non-line-of-sight (NLOS) situations. It supports communication over distances up to 17 km with a single hop, and extended distances with multi-hop mesh networking, covering up to 150 km.

  • Secure and Adaptive Power Management:
    Equipped with adaptive power control, the FD-6700WG adjusts transmit and receive power according to the environment, reducing power consumption and interference. It also includes automatic frequency hopping to further minimize interference and optimize performance.

  • Flexible Network Topology:
    The device supports a variety of network configurations, including linear, star, and mesh topologies. This flexibility allows the system to adapt dynamically to changing operational needs and terrain.

  • Multifunctional Communication:
    Beyond video streaming, the FD-6700WG allows for the transmission of audio, GPS data, and sensor data, providing a comprehensive communication solution for tactical teams.

  • Battery-Powered Operation:
    It comes with a removable and rechargeable battery (5400mAh, 55.5Wh) that ensures up to 10 hours of continuous operation in the field, supporting long-duration missions without the need for constant recharging.

  • Interoperability with Other IWAVE Devices:
    The FD-6700WG seamlessly integrates with other IWAVE MESH radios (such as those for vehicles, drones, or UGVs), creating a larger communication network that supports multiple devices and team coordination over extended areas.






 MESH Network Management Software








Application





  • Military and Tactical Operations:
    Ideal for military personnel in combat zones, the FD-6700WG provides a portable solution for real-time video communication, enabling personnel to stay connected with the command center and other team members.

  • Emergency Response:
    First responders can use the FD-6700WG to relay video and data from disaster zones, improving the efficiency of rescue operations and enabling rapid decision-making from remote command centers.

  • Surveillance and Reconnaissance:
    The device supports live video feeds for surveillance and intelligence gathering, allowing teams to monitor activities in real-time without exposing personnel to unnecessary risks.

  • Drone and Robotics Operations:
    The FD-6700WG can be integrated with Unmanned Aerial Vehicles (UAVs) or Unmanned Ground Vehicles (UGVs), providing video and telemetry transmission for remote operation and monitoring.

  • Public Safety and Law Enforcement:
    Used in crowd control, border security, or riot control, it enhances communication and situational awareness by providing reliable video feeds and real-time data transmission.

Specification



GENERAL MECHANICAL
WIRELESS MESH(Based on TD-LTE terminal access technology) TEMPERATURE -25º to +75ºC
NETWORKING MESH IPRATING IP65
MODULATION QPSK/16QAM/64QAM DIMENSIONS 175*90*60mm
ENCRYPTION ZUC/SNOW3G/AES(128/256) OptionalLayer-2 WEIGHT 1.3kg
DATA RATE 30Mbps MATERIAL Black Anodized Aluminum
SENSITIVITY -103dBm/10MHz MOUNTING Handheld Pattern
BANDWIDTH 1.4MHz/3MHz/5MHz/10MHz/20MHz(adjustable) FREQUENCY (Software Selectable)
RANGE 1km-3km(LOS)/500meters~1km(NLOS) 1.4Ghz 1427.9-1467.9MHz
NODE 32 800Mhz 806-826 MHz
MIMO Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming 2.4Ghz 2401.5-2481.5 MHz
POWER 25dBm POWER
AIR INTERFACE DELAY ≤200ms VOLTAGE DC12V
AIR INTERFACE DELAY ≤200ms VOLTAGE DC12V
WLAN WLAN 802.11 b/g/n/a BATTERY LIFE 10Hours(External Battery)
ANTIINTERFERENCE Frequency hopping within working frequency band INTERFACES
NETWORKING TIME <1min RF 2 x TNC2 x SMS(4G+WIFI Ant)
START TIME <30s ETHERNET 1xEthernet
4G 4G full Netcom POWER DC INPUT
Networking Time <1min(stable linking)
SENSITIVITY
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
2.4Ghz 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm



图片 1.png
