| Brand Name: | IWAVE |
| Model Number: | FD-6700WG |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

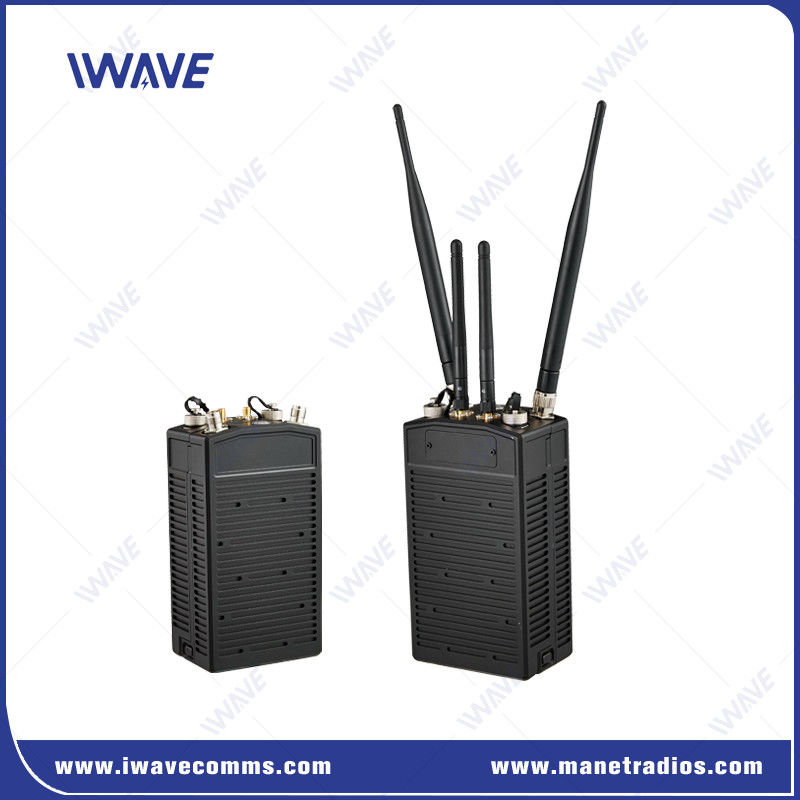

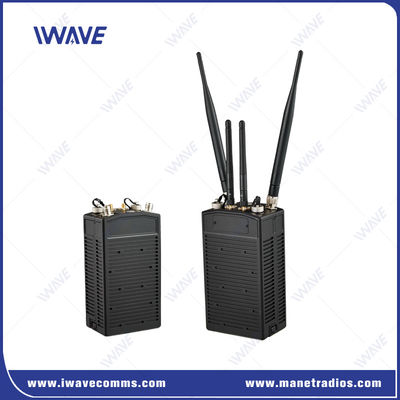

Tactical Handheld IP Mesh Radio With 4G And WIFI
FD-6700WG tactical handheld MIMO MESH radio is an easy-to-carry, easy-to-use Mesh Radio with 4G function. It is special designed to be worn by personnel in order to connect individuals to a mesh network. Its built-in WiFi hot spot makes it easy to connect any internet-enabled device to the same mesh network.
FD-6700WG is a wireless transmission product based on mature SOC chipset, which supports MESH Ethernet data transmission with 30Mbps.it is designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It adopts a handheld design, which is convenient for individual combat personnel to better penetrate the front end. The product provides wired Ethernet, 4G full Netcom and WIFI, which is convenient for various terminal equipment to access. The 4G full Netcom function can facilitate remote data transmission, monitoring, command, and dispatch in the headquarters.
Key Features
800Mhz/1.4Ghz/2.4Ghz selectable on software depend on your application.
One hop distance up to 17KM Chain network can reach longer distance(50KM).

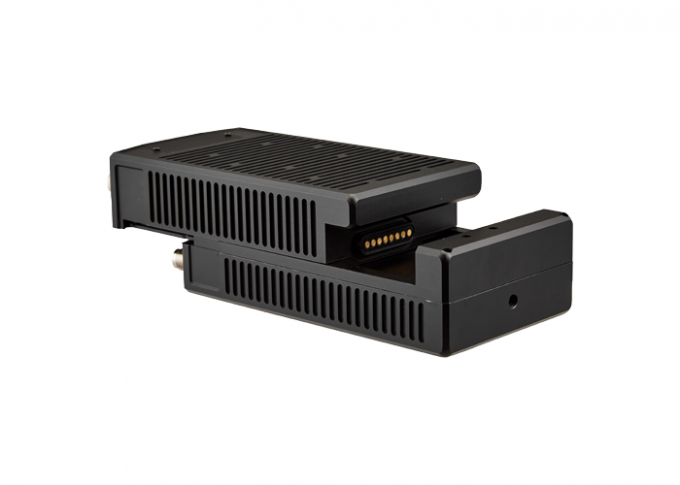

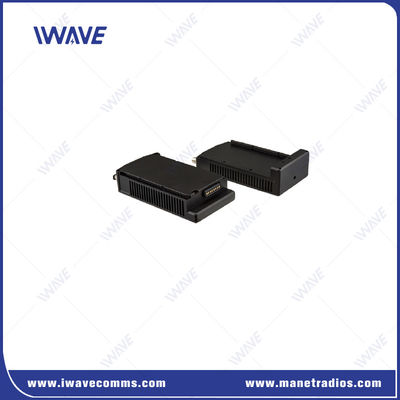

It is equipped with a large-capacity battery, with long-term battery life, and can work continuously for 10 hours. The Capacity of battery is 5400mAh/55.5Wh
According to the channel conditions, adaptively adjust the transmitting and receiving power to reduce power consumption and network interference. It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.
The topology can be switched between linear, star, and mesh topologies or multiple topologies coexisting.
FD-6700WG can smoothly work with IWAVE other type IP MESH device such as high-power vehicle type, airborne type and UGV mount IP MESH Radio forming a big communication network. |
|
MESH Network Management Software
Application
The FD-6700WG is a highly flexible and reliable wireless communication system, optimized for tactical communications in challenging, remote environments. Its support for multiple network topologies, long NLOS range, adaptive power management, and seamless integration with other IWAVE Mesh devices makes it an excellent choice for military, security, and disaster recovery applications where real-time data and continuous communication are critical. With full 4G connectivity, battery-powered portability, and multi-device compatibility, it provides a robust solution for teams on the move
Specification
| GENERAL | MECHANICAL | ||
| WIRELESS | MESH(Based on TD-LTE terminal access technology) | TEMPERATURE | -25º to +75ºC |
| NETWORKING | MESH | IPRATING | IP65 |
| MODULATION | QPSK/16QAM/64QAM | DIMENSIONS | 175*90*60mm |
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | WEIGHT | 1.3kg |
| DATA RATE | 30Mbps | MATERIAL | Black Anodized Aluminum |
| SENSITIVITY | -103dBm/10MHz | MOUNTING | Handheld Pattern |
| BANDWIDTH | 1.4MHz/3MHz/5MHz/10MHz/20MHz(adjustable) | FREQUENCY (Software Selectable) | |
| RANGE | 1km-3km(LOS)/500meters~1km(NLOS) | 1.4Ghz | 1427.9-1467.9MHz |
| NODE | 16 | 800Mhz | 806-826 MHz |
| MIMO | Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming | 2.4Ghz | 2401.5-2481.5 MHz |
| POWER | 25dBm | POWER | |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| WLAN | WLAN 802.11 b/g/n/a | BATTERY LIFE | 10Hours(External Battery) |
| ANTIINTERFERENCE | Frequency hopping within working frequency band | INTERFACES | |
| NETWORKING TIME | <1min | RF | 2 x TNC2 x SMS(4G+WIFI Ant) |
| START TIME | <30s | ETHERNET | 1xEthernet |
| 4G | 4G full Netcom | POWER | DC INPUT |
| Networking Time | <1min(stable linking) | ||
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 2.4Ghz | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
Video
|
|
