| Brand Name: | IWAVE |
| Model Number: | FD-61MN |
| MOQ: | 2Pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

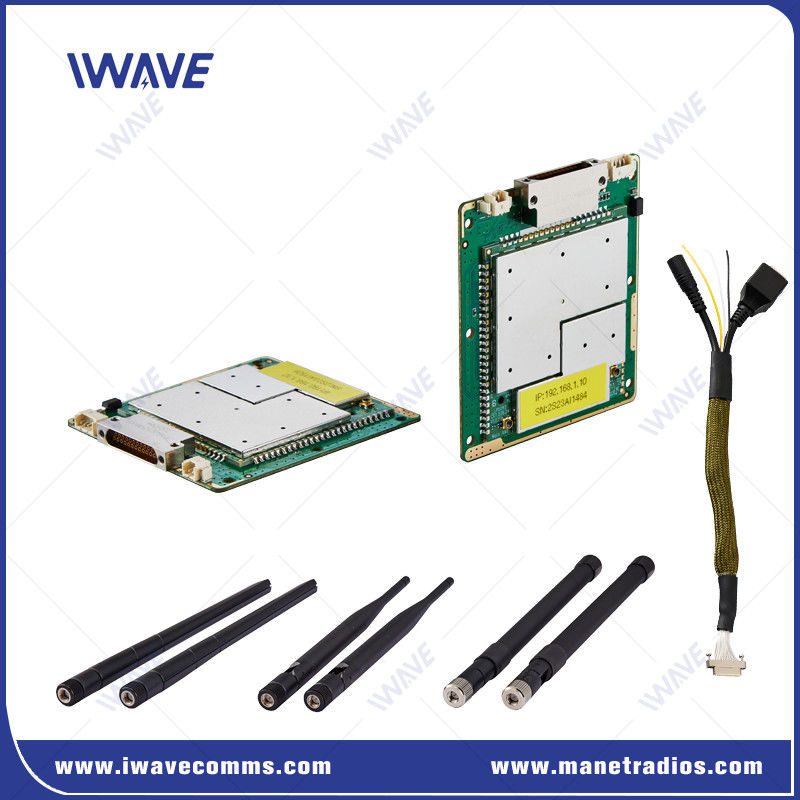

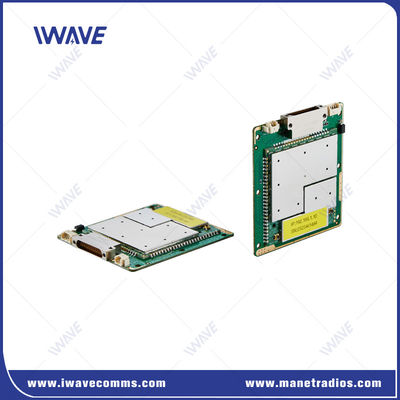

Super Miniature Tri-band Digital IP MESH Data Transmission Module for UAV
Introduction
FD-61MN is a miniature OEM tri-band Digital IP MESH data transmission module for Drones, UAV, UGV, USV and other autonomous unmanned vehicles. This digital mesh link streams video and data via an "infrastructureless" network in in three software-selectable frequency bands 800Mhz, 1.4Ghz and 2.4Ghz.
As a compact Software-Defined Radio (SDR), the FD-61MN is ideal for a variety of drones, robotic systems, and autonomous vehicles, offering an impressive operational range of up to 10 km. Its self-forming and self-healing capabilities, along with unlimited frequency hops, ensure reliable communication, while intelligent time-based blacklisting algorithms enhance its performance.
Features
Communication Standard:
Based on the TD-LTE wireless communication standard.
Operates independently of any carrier's base station.
Data Services:
Provides wireless communication links for HD video, data, and serial control data based on IP.
Anti-Interference Technologies:
Utilizes automatic frequency hopping technology (FHSS).
Employs adaptive modulation to enhance resistance to interference.
Self-Forming and Self-Healing Network:
Constructs a continually adapting mesh network.
Allows nodes to join or leave dynamically, ensuring continuity even when nodes are lost.
Application
Advanced Wireless Video and Data Links
Provides HD video and data services based on IP for highly mobile tactical units in security and defense fields.
OEM Format for Platform Integration
The FD-61MN is available in an OEM (bare board) format, making it suitable for integration into a wide variety of robotic systems.
Telemetry Control Data Transmission
Capable of receiving and transmitting telemetry control data via IP address and port, enabling accurate control of individual units in multi-robot systems.
Scalable Range
Additional range can be achieved through the addition of booster amplifiers, enhancing operational capabilities.
Specification
| Technology | Adhoc based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES128 Optional Layer-2 |
| Data Rate | Max 30Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 16node |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 60*55*5.7mm |
| Weight | 26g |
| Tri-Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 800Mhz: 806Mhz-826Mhz | |
| 2.4Ghz: 2402-2481 MHz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 1xCOMUART |
| Power Input | 1*DC5-32V |
Powerful Serial Port Functions For Data Services
1.High-rate serial port data transmission: the baud rate is up to 460800
2.Multiple working modes of the serial port: TCP Server mode, TCP Client mode, UDP mode, UDP multicast mode, transparent transmission mode, etc.
3.MQTT, Modbus and other protocols. Supports serial port IoT networking mode, which can be used flexibly for networking. For example, users can accurately send control instructions to another node (drone, robot dog or other unmanned robotics) through a remote controller instead of using broadcast or multicast mode.
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode TCP client mode UDP mode UDP multicast MQTT Modbus |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
Video
|
|
