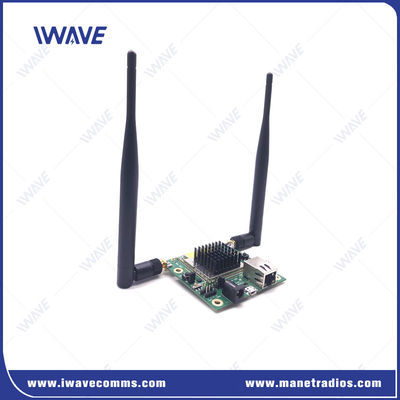

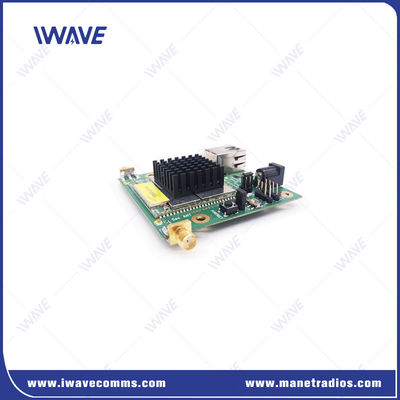

IP Mesh Oem Digital Data Link For Ugv Transmitting Video And Control Data
FD-6100 is a miniature Tri-band OEM 800MHz, 1.4Ghz and 2.4Ghz MIMO Digital Data Link.
It is ideal for UAV(Unmanned Aerial Vehicle) and UGV(Unmanned Ground Vehicle) surveillance and video broadcasting, IP Mesh radios provide a proven and flexible MANET solution for the most challenging environments.
It provides a robust and secure link in all the 800MHz, 1.4Ghz and 2.4Ghz frequency band. The FD-6100 adopt FHSS(Frequency Hopping Spread Sprectrum) and high sensitivity base on TD-LTE technology standard to achieve robust RF performance.
The high speed, long range capabilities of FD-6100 allow for high quality wireless video and telemetry communications.
Key Features
|
 |
Application
FD-6100 enables self-forming and self-healing mesh networks. Mesh networks improve robustness, extend range and simplify collaborative communication. It is ideal for size and weight critical UxV applications, offering the SWaP of a bare-board solution for platform and system integration.
Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics
Tactical communications
Unmanned land vehicles wireless video transmission
Specification
| GENERAL | ||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 16nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
|
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need todefine the format yourself |
||
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
