OEM Wireless IP Mesh Module For HD Video Transmitting For UAV And UGV
Introduction
The FD-6100 provides highly integrated MESH self-organizing network data transmission, and it is featured with automatic networking, automatic routing, automatic frequency modulation, automatic healing, and anti-jamming. At the same time, its low power consumption and mini size meet the variety application needs, such as industry production, emergency communication, image transmission, driverless and video surveillance.
Based on mature SOC chipset and TD-LTE wireless communication standard, FD-6100 supports MESH Ad-Hoc network and does not rely on the public network. It adopts OFDM and MIMO technologies to support multiple bandwidths:3MHz/5MHz/10MHz/20MHz. Its flat system architecture design can effectively reduce system delay, improve system transmission capacity to achieve long transmission distance, large data throughput and strong anti-interference ability.

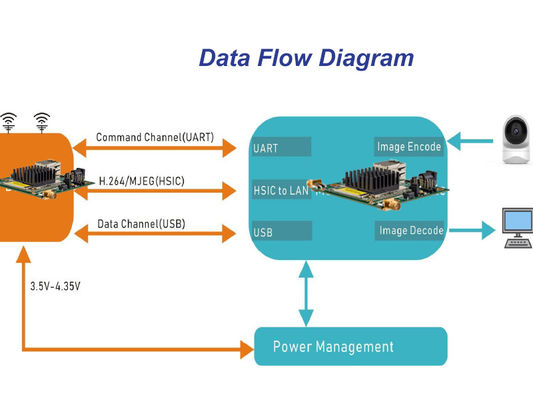

Application
|
|
| GENERAL | ||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 16nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
|
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need todefine the format yourself |
||
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |

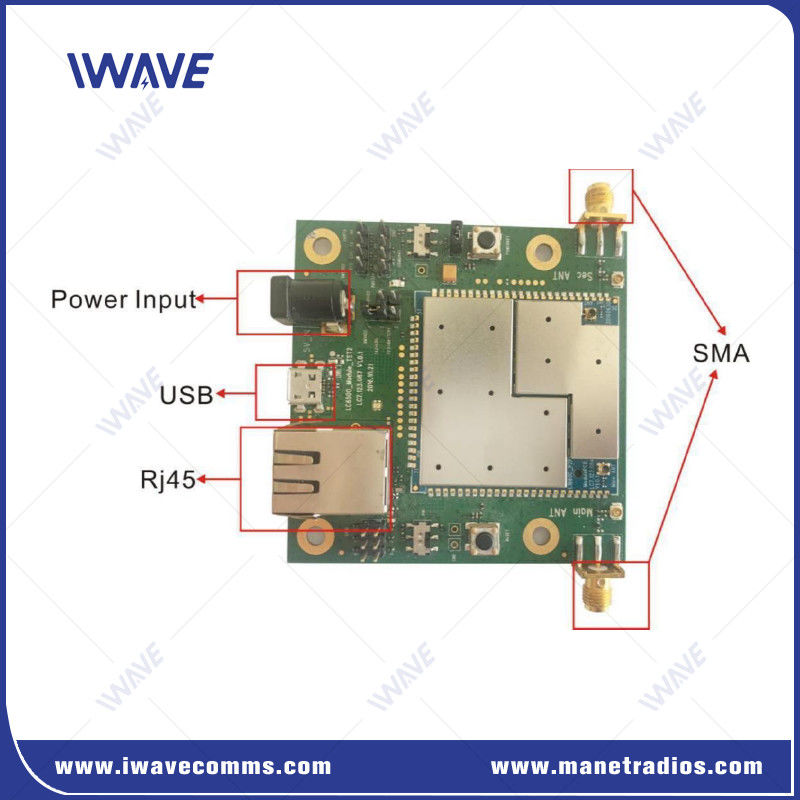

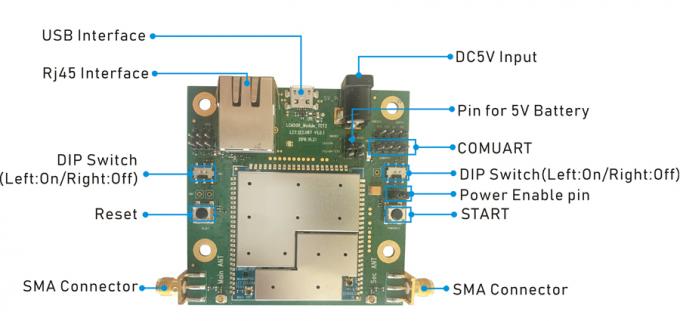

Interface
