| Brand Name: | IWAVE |
| Model Number: | FD-61MN |
| MOQ: | 2Pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

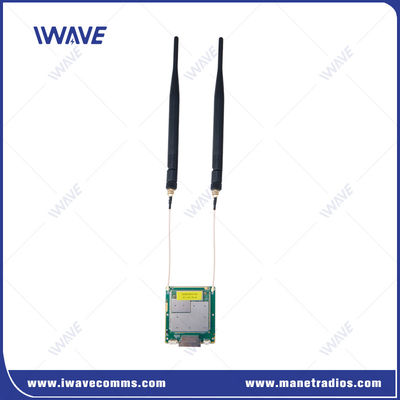

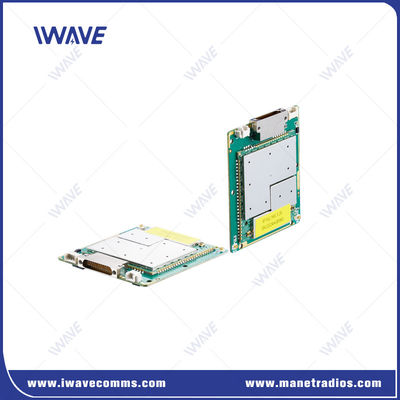

Miniature OEM Tri-band Digital IP MESH Data Link
Introduction
FD-61MN is a miniature OEM tri-band Digital IP MESH data transmission module for Drones, UAV, UGV, USV and other autonomous unmanned vehicles. This digital mesh link streams video and data via an "infrastructureless" network in in three software-selectable frequency bands 800Mhz, 1.4Ghz and 2.4Ghz.

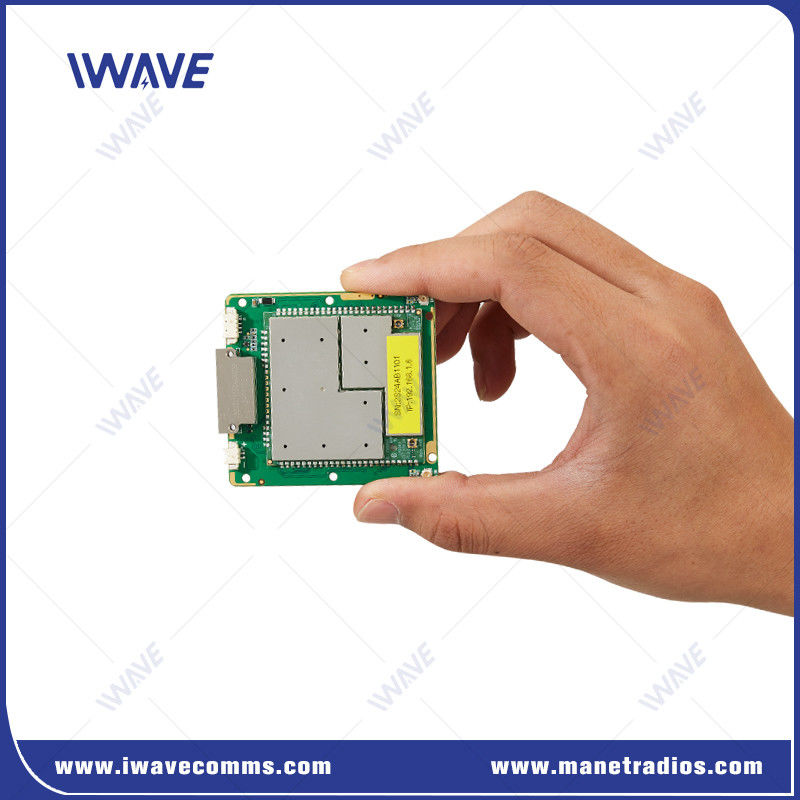

FD-61MN adopts the automatic frequency hopping technology(FHSS) and adaptive modulation for anti-jamming in complex RF environment. Its miniature design is ideal for integration into drone, UAV, All-Terrain Vehicle and autonomous unmanned ground vehicles.

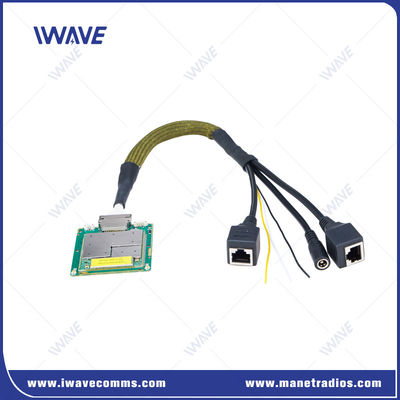

The self-forming and self-healing mesh architecture and multiple Ethernet port and UART ports allow FD-61MN transmit high quality wireless video and telemetry in UAV swarm and robotics fleet.
Features
●Self-Forming and Self-Healing Capabilities
FD-61MN builds a continually adapting mesh network, which allows nodes to join or leave at any time, with a unique decentralized architecture that provides continuity even when one or more nodes are lost.
●Strong stable data transmission ability
Using coding adaptive technology to automatically switch coding and modulation mechanisms according to signal quality to avoid large jitter in the transmission rate as the signal changes.
●Long Range Communication
1. Strong NLOS Ability
2. For unmanned ground vehicles, non-line-of-sight 1km-3km
3. For unmanned aerial vehicles, air to ground 10km
●Precisely Control UAV Swarm Or UGV Fleet
Serial port 1: Sending and receiving (serial data) through IP (address + port) in this way, one control center can precisely control multiple units UAV or UGV.
Serial port 2: Transparent transmission and broadcast sending and receiving control data
Application
●Advanced Wireless Video and Data Links for Drones, UAV, UGV, USV
●FD-61MN provides HD video and data services based IP for high mobile tactical units in the field of security and defence.
●FD-61MN is an OEM (bare board) format for platform integration into a large number of robotic systems.
●FD-61MN can receive and transmit telemetry control data via IP address and IP port to accurately control each units in multi-robot systems.
●Additional range can be achieved by adding booster amplifiers
Specification
| Technology | Adhoc based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES128 Optional Layer-2 |
| Data Rate | Max 30Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 16node |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 60*55*5.7mm |
| Weight | 26g |
| Tri-Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 800Mhz: 806Mhz-826Mhz | |
| 2.4Ghz: 2402-2481 MHz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 1xCOMUART |
| Power Input | 1*DC5-32V |
Video
|
|
