| Brand Name: | IWAVE |
| Model Number: | FD-6100 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 3-5working days |
| Payment Terms: | L/C,D/P,T/T |
Tri-band Frequency: The ability to switch between 800MHz, 1.4GHz, and 2.4GHz bands allows for flexible operation in different environments, overcoming potential interference and optimizing the communication link based on available frequencies.
High Data Rates: The 30 Mbps (Uplink + Downlink) data rate ensures that high-quality video streaming and telemetry data can be transmitted seamlessly, making it ideal for surveillance, monitoring, and other data-intensive tasks.
Working mode: point-to-point, point-to-multipoint, multipoint-to-multipoint, mesh network, automatic relay, MESH.
IP transparent transmission: With IP transparent transmission function, the host computer only needs to focus on upper-layer applications.
Internet expansion: Effectively extend the coverage of the Internet, any terminal in the network can be used as a gateway, and each node of the ad hoc network can access the Internet through the gateway node.
Configuration management: Users can set the channel, bandwidth, power, rate, IP, key and other parameters of the MESH node.
Status display: Users can dynamically display network topology, link quality, signal strength, communication distance, environmental noise floor, etc.
Adjustable Output Power: The adjustable RF power range (-40dBm to +25dBm) allows for flexible tuning of transmission power, providing optimal signal strength for various environments while also helping to conserve battery life.
Industrial Production: Ideal for monitoring and controlling production processes.
Emergency Communication: Provides reliable communication in critical situations.
Image Transmission: Efficiently handles the transmission of images and video.
Driverless Technology: Supports the communication needs of autonomous vehicles.
Video Surveillance: Ensures secure and stable video transmission for surveillance systems.
| GENERAL | ||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 16nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
|
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need todefine the format yourself |
||
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |

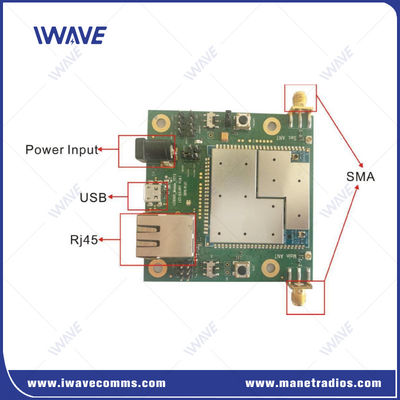

Interface
