Model:FD-61MN

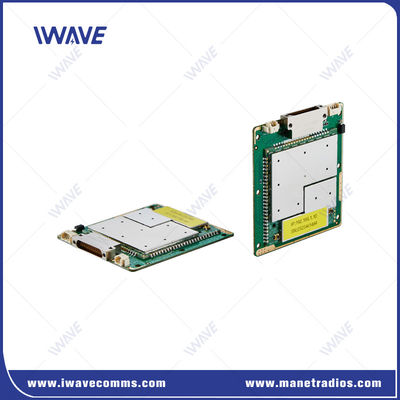

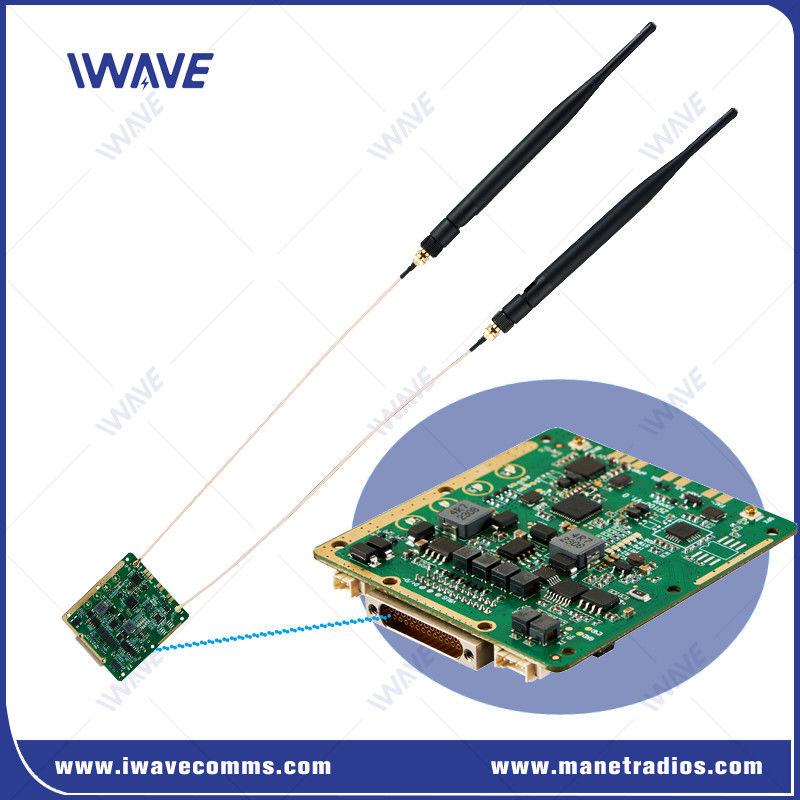

FD-61MN Wireless IP MESH Ethernet & Full Duplex TTL Serial Data Link
Introduction
The FD-61MN is a highly versatile, miniature data transmission module ideal for unmanned vehicle systems, offering stable, long-range wireless communication with robust anti-jamming features. Its ability to form and heal mesh networks autonomously makes it perfect for dynamic environments like UAV swarms or robotic fleets.
Key Features:
FD-61MN is a wireless transmission product designed by IWAVE based on mature SOC chipset, which is a IP MESH radio offering full duplex TCPIP/UDP data and control TTL data communication.
FD-61MN is designed based on TD-LTE wireless communication standard. It doesn't rely on any carrier's base station.
Provide wireless communication link of HD video, data and serial control data based on IP
Automatic frequency hopping technology(FHSS) and adaptive modulation for anti-interference.
Builds a continually adapting self-forming and self-healing mesh network, which allows nodes to join or leave at any time, with a unique decentralized architecture that provides continuity even when one or more nodes are lost.
Applications:
Anti-Jamming
Utilizes frequency hopping, adaptive modulation, adaptive RF transmitting power, and MANET routing to ensure connectivity under adverse conditions.
Three Ethernet Ports
Versatile Connectivity: Supports connection to various data devices, including cameras, onboard PCs, and sensors.
High-Standard Aviation Plug-in Interface
J30JZ Connectors:Requires minimal installation space.Lightweight and Reliable: Ensures stable and reliable communication with good electromagnetic shielding and impact resistance.Customizable Connections: Configurable pins and sockets to meet diverse connection and communication requirements.
Specification
| GENERAL | ||
| Technology | MESH base on TD-LTE Wireless technology standard | |
| Encryption | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | |
| Data Rate | 30Mbps(Uplink and Downlink) | |
| Adaptive average distribution of system rate | ||
| Support users to set speed limit | ||
| Range | 10km(Air to ground) 500m-3km(NLOS Ground to ground) |
|
| Capacity | 32nodes | |
| Bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz | |
| Power | 25dBm±2 (2w or 10w on request) | |
| Modulation | QPSK, 16QAM, 64QAM | |
| Anti-Jamming | Automatically Cross-Band frequency hopping | |
| Power Consumption | Average: 4-4.5Watts Max: 8Watts |
|
| Power Input | DC5V-32V | |
| FREQUENCY BAND | |||||||
| 1.4Ghz | 1427.9-1447.9MHz | ||||||
| 800Mhz | 806-826MHz | ||||||
| 2.4Ghz | 2401.5-2481.5 MHz | ||||||
| WIRELESS | |||||||
| Communication Mode | Unicast, multicast, broadcast | ||||||
| Transmission Mode | Full Duplex | ||||||
| Networking Mode | Self-healing | Self-adaptation, self-organization, self-configuration, self-maintenance | |||||
| Dynamic Routing | Automatically updat routes based on real-time link conditions | ||||||
| Network Control | State Monitoring | Connection status /rsrp/ snr/distance/ uplink and downlink throughput | |||||
| System Management | WATCHDOG: all system-level exceptions can be identified, automatic reset | ||||||
| Re-transmission | L1 | Determine whether to retransmit based on the different data being carried. (AM/UM); HARQ retransmits | |||||
| L2 | HARQ retransmits | ||||||
| Receiver Sensitivity | Sensitivity(BLER≤3%) | ||||
| 2.4GHZ | 20MHZ | -99dBm | 1.4Ghz | 10MHz | -91dBm(10Mbps) |
| 10MHZ | -103dBm | 10MHz | -96dBm(5Mbps) | ||
| 5MHZ | -104dBm | 5MHz | -82dBm(10Mbps) | ||
| 3MHZ | -106dBm | 5MHz | -91dBm(5Mbps) | ||
| 1.4GHZ | 20MHZ | -100dBm | 3MHz | -86dBm(5Mbps) | |
| 10MHZ | -103dBm | 3MHz | -97dBm(2Mbps) | ||
| 5MHZ | -104dBm | 2MHz | -84dBm(2Mbps) | ||
| 3MHZ | -106dBm | 800Mhz | 10MHz | -91dBm(10Mbps) | |
| 800MHZ | 20MHZ | -100dBm | 10MHz | -97dBm(5Mbps) | |
| 10MHZ | -103dBm | 5MHz | -84dBm(10Mbps) | ||
| 5MHZ | -104dBm | 5MHz | -94dBm(5Mbps) | ||
| 3MHZ | -106dBm | 3MHz | -87dBm(5Mbps) | ||
| 3MHz | -98dBm(2Mbps) | ||||
| 2MHz | -84dBm(2Mbps) | ||||
| INTERFACES | ||
| RF | 2 x IPX | |
| Ethernet | 3xEthernet | |
| Serial Port | 3x SERIAL PORT | |
| Power Input | 2*Power Input(alternative) | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 26grams | |
| Dimension | 60*55*5.7mm | |
| Stability | MTBF≥10000hr | |
