| Brand Name: | IWAVE |
| Model Number: | FD-6700M |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

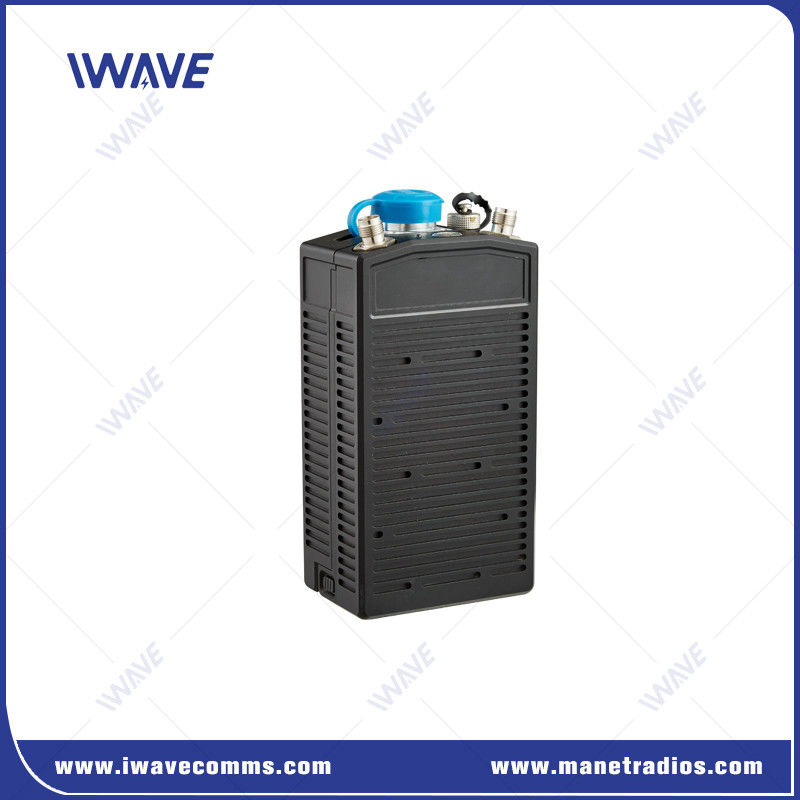

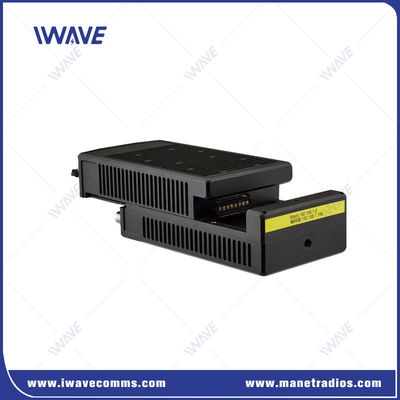

Handheld HDMI MIMO MESH Radios
FD-6700M is a MIMO MESH radio, delivering full HD hdmi camera video and full duplex data in a miniature package. It is ideal for use in portable and embedded applications where size, weight, power or cost are key.
FD-6700M is based on TD-LTE technology standard with the best sensitivity in complex RF environment to provide the most Mobile Ad Hoc Networking (MANET) for users. It is built to create powerful, secure networks anywhere, the FD-6700M unites all your critical data sources in real time – giving you and your team the confidence to make difficult decisions in the heat of the moment..
Key Features
|
 |
Maintain maximum mobility
As a handheld MESH Smart Radio, the FD-6700M significantly decreases the amount of gear uers have to carry. The battery built in supports 10hours continuous working. Having one fully capable MESH Radio platform frees up valuable space and weight so you can focus more on the task at hand. Fewer cables, fewer batteries, fewer worries.
IP MESH Technology

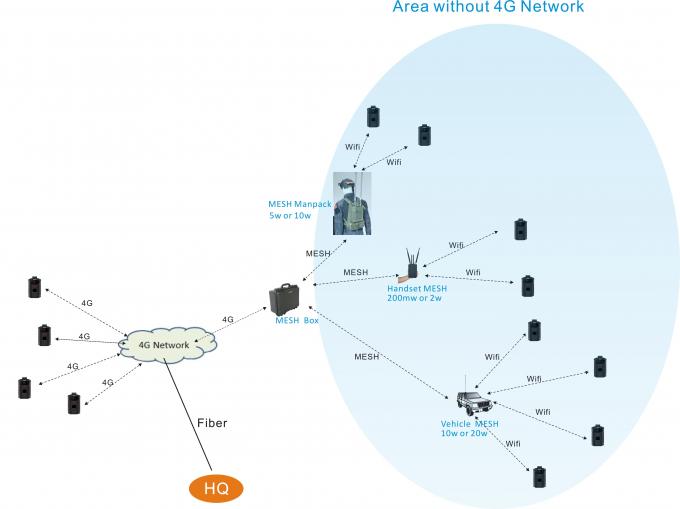

Users take the FD-6700M mesh radio through cities, tunnels, and ships or other complex RF environments, where its MESH technology uses reflections from obstructions to move your data even faster. The self-forming/self-healing MANET technology routes your data around obstacles, maximizing your network performance and mobility. The more radios you employ, the more connected you become.
Specification
| GENERAL | |||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | ||
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | ||
| DATA RATE | 30Mbps(Uplink and Downlink) | ||
| RANGE | 500m-3km(nlos ground to ground) | ||
| CAPACITY | 32nodes | ||
| MIMO | 2x2 MIMO | ||
| POWER | 200mw | ||
| LATENCY | One Hop Transmission≤30ms | ||
| MODULATION | QPSK, 16QAM, 64QAM | ||
| ANTI-JAM | Automatically Cross-Band frequency hopping | ||
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | ||
| POWER CONSUMPTION | 5Watts | ||
| BATTERY LIFE | 10Hours(Buckled Battery) | ||
| POWER INPUT | DC9V-12 | ||
| SENSITIVITY | |||
| 2.4GHZ | 20MHZ | -99dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 1.4GHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 800MHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| FREQUENCY BAND | |||
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| 1.4Ghz | 1427.9-1467.9MHz | ||
| 800Mhz | 806-826 MHz | ||
| MECHANICAL | |||
| Temperature | -25º to +75ºC | ||
| Weight | 1.3kg | ||
| Dimension | 18*9*6cm | ||
| MATERIAL | Anodized Aluminum | ||
| MOUNTING | Handheld Type | ||
| Stability | MTBF≥10000hr | ||
| INTERFACES | |||
| RF | 2 x TNC | ||
| On/Off | 1xPower on/off Button | ||
| Video Input | 1xHDMI | ||
| POWER | DC INPUT | ||
| INDICATOR | Tri-COLOR LED | ||
Video
|
|
