| Brand Name: | IWAVE |
| Model Number: | FD-6700WG |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

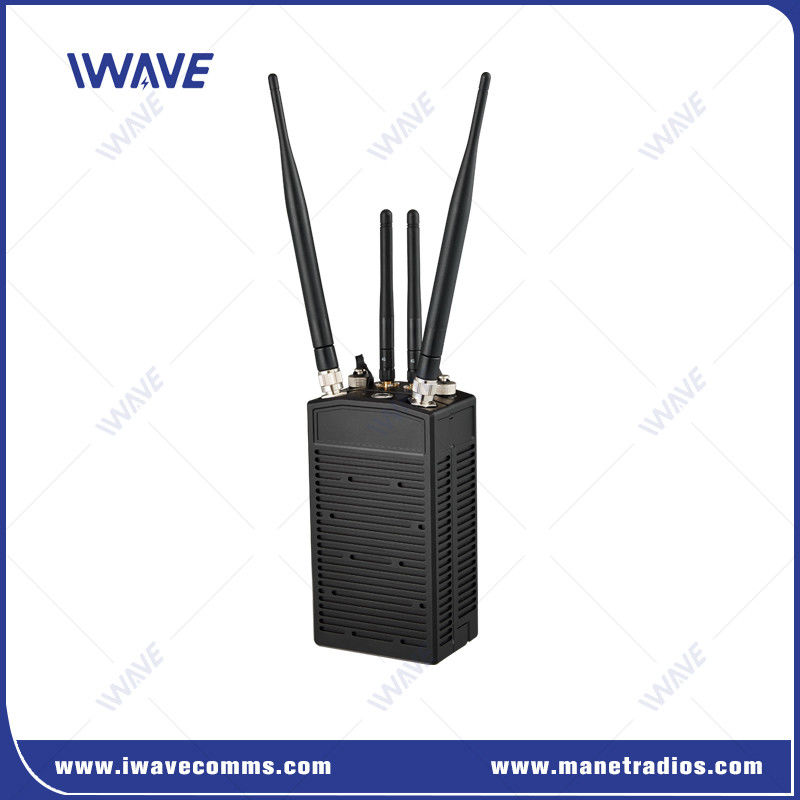

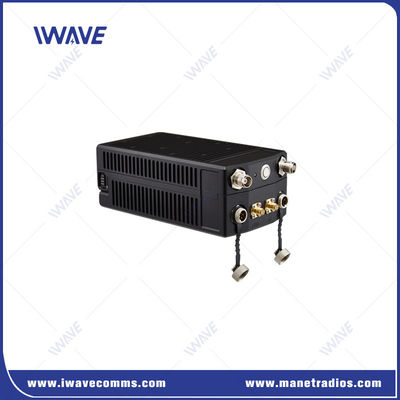

Handheld MIMO Multiple Hops MESH Smart Radio
Introduction
Teams on-the-move operate in challenging mountain and jungles environment who require the tactical communication equipment has good flexibility and strong NLOS transmission ability. FD-6700WG deliver audio, video and GPS data to your team in any environment. IWAVE Mesh Radio is a proven and flexible MANET (Mobile AdHoc Networking) solution which has successfully been deployed in the most adverse environments to guarantee the collaboration between individuals and vehicles using IWAVE other type MESH radio.
Key Features
800Mhz/1.4Ghz/2.4Ghz selectable on software depend on your application
Vol: DC12V Capacity: 5000mAh/55.5Wh
Teams in the harshest environments equipped with the FD-6700WG will stay connected and able to share critical information.
When you take task in cities, tunnels, dense forest and mountains, FD-6700WG works in these complex RF environments to make your data move faster and longer by using its 2x2 MIMO technology.
The self-forming / self-healing MANET technology routes your data around obstacles, maximizing your network performance and mobility. The more radios you employ, the more connected you become.
By providing with everyone's positions and full motion HD video with integrated GPS to enable leaders make quick decision
|
|
Application
Emergency Communications:
Rapid Deployment: In emergency situations such as natural disasters or accidents, communication infrastructure may be damaged. Handheld MESH devices can quickly establish a self-organizing network, providing reliable communication support for rescue teams.
Robust Connectivity: With multi-hop relay and self-healing capabilities, MESH networks ensure continuous communication even when some nodes or links fail.
Field Operations:
Stable Communication: In remote areas like forests, mountains, or during expeditions, handheld MESH devices provide stable communication for real-time data transmission and processing.
Flexibility: Nodes can freely join or leave the network, adapting to changing environments and operational needs.
Specification
| GENERAL | MECHANICAL | ||
| WIRELESS | MESH(Based on TD-LTE terminal access technology) | TEMPERATURE | -25º to +75ºC |
| NETWORKING | MESH | IPRATING | IP65 |
| MODULATION | QPSK/16QAM/64QAM | DIMENSIONS | 175*90*60mm |
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | WEIGHT | 1.3kg |
| DATA RATE | 30Mbps | MATERIAL | Black Anodized Aluminum |
| SENSITIVITY | -103dBm/10MHz | MOUNTING | Handheld Pattern |
| BANDWIDTH | 1.4MHz/3MHz/5MHz/10MHz/20MHz(adjustable) | FREQUENCY (Software Selectable) | |
| RANGE | 1km-3km(LOS)/500meters~1km(NLOS) | 1.4Ghz | 1427.9-1467.9MHz |
| NODE | 32 | 800Mhz | 806-826 MHz |
| MIMO | Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming | 2.4Ghz | 2401.5-2481.5 MHz |
| POWER | 25dBm±2 | POWER | |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| AIR INTERFACE DELAY | ≤200ms | VOLTAGE | DC12V |
| WLAN | WLAN 802.11 b/g/n/a | BATTERY LIFE | 10Hours(External Battery) |
| ANTIINTERFERENCE | Frequency hopping within working frequency band | INTERFACES | |
| NETWORKING TIME | <1min | RF | 2 x TNC2 x SMS(4G+WIFI Ant) |
| START TIME | <30s | ETHERNET | 1xEthernet |
| 4G | 4G full Netcom | POWER | DC INPUT |
| Networking Time | <1min(stable linking) | ||
| SENSITIVITY | ||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 2.4Ghz | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
