| Brand Name: | IWAVE |
| Model Number: | FD-61MN |
| MOQ: | 2Pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

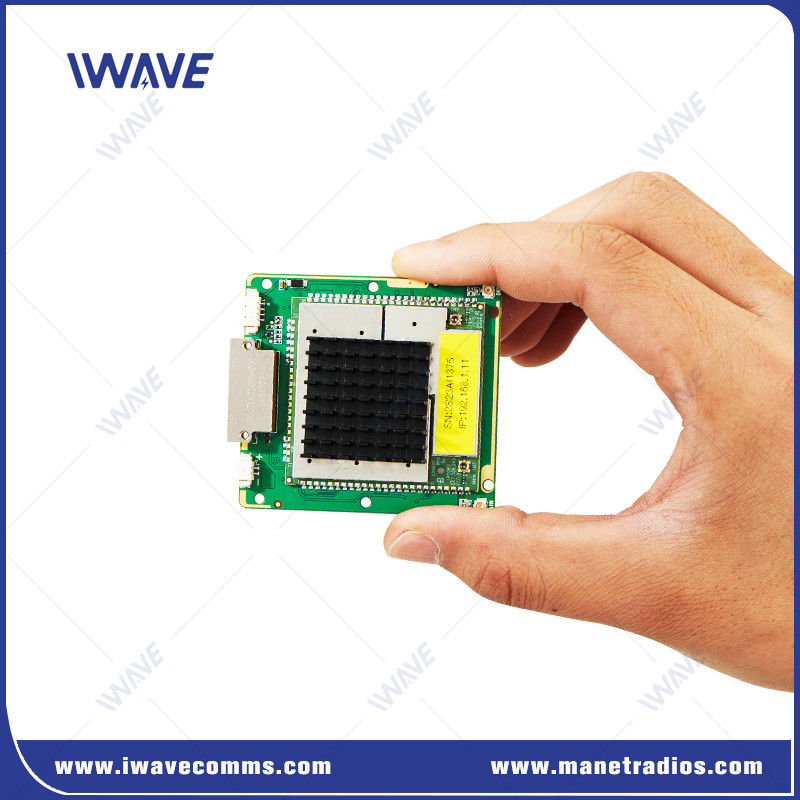

Mesh Module SDR For 10km Long Range Drones And Robotics
Introduction
FD-61MN is a wireless communications and datalink solution for UAVs (unmanned aerial vehicles) and unmanned systems.With IWAVE cutting-edge technology, it has been vigorously tested in a wide variety of challenging terrains and conditions, and provide drones and robotics with robust connectivity on land, at sea and in the air.
FD-61MN is a compact SDR that is ideal for a wide range of drones, robotics and autonomous vehicles, providing a range of up to 10 km. With self-forming and self-healing capabilities, it features unlimited frequency hops and incorporates intelligent time-based blacklisting algorithms.
Features
●Self-Forming and Self-Healing Capabilities
FD-61MN builds a continually adapting mesh network, which allows nodes to join or leave at any time, with a unique decentralized architecture that provides continuity even when one or more nodes are lost.
●Easy Management
1. Management software to manage all the nodes and monitoring the real time topology, SNR, RSSI, distance between nodes, etc.
2. API provided for third-party unmanned platform integration
3. Self-organizing network and not require user interaction during working
●Anti-jamming
Frequency hopping, adaptive modulation, adaptive RF transmitting power and MANET routing ensures connectivity also during electronic warfare conditions.
●Three Ethernet Port
Three Ethernet ports enable FD-61MN access various data devices such as cameras, onboard PC, sensors, ect.

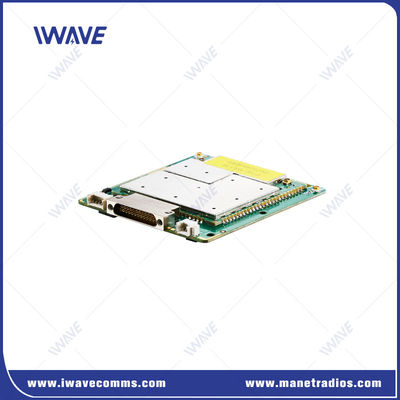

●High-standard aviation plug-in interface
1. J30JZ connectors have the advantages of small installation space, light weight, reliable connection, good electromagnetic shielding, good impact resistance, etc to ensure a stable and reliable communication.
2. Configure different pins and sockets to meet various connection and communication needs
Specification
| Technology | Adhoc based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES128 Optional Layer-2 |
| Data Rate | Max 30Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 16node |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 60*55*5.7mm |
| Weight | 26g |
| Tri-Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 800Mhz: 806Mhz-826Mhz | |
| 2.4Ghz: 2402-2481 MHz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 1xCOMUART |
| Power Input | 1*DC5-32V |
Video
|
|
