| Brand Name: | IWAVE |
| Model Number: | FD-7800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |

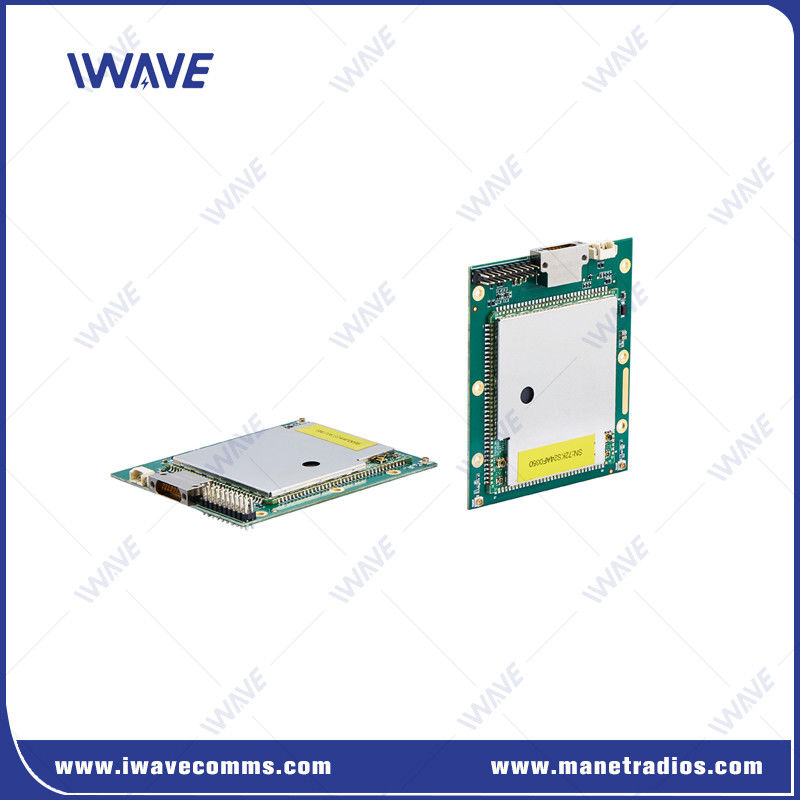

Mimo Digital Data Link For Mobile UGV nlos communication
Description
The Next Gerneration of Tactical MANET Radios!
Multiple Bands and ultra-compact software defined IP mesh radio for UGV and UAV long range NLOS surveillance and video broadcasting.
IWAVE SDR technology enables a large family of multi-band and single-band radios(1420-1530Mhz).
In a point to multipoint configuration, Mesh module FD-7800 provides the ability to stream multiple high quality video streaming to one or several nodes, like from a drone swarm to one or several receiver nodes on the ground.
The Embedded Module unites your unmanned system's communication, computing, and video subsystems into a single SWaP-timized package.
Application
By integrating the Embedded IP MESH Module FD-7800 into your unmanned systems and sensors, each system with an Embedded Module extends the MANET to any where. It allows users to access video and sensor data - on any node from anywhere. At same time, unmanned platform and sensors from different manufacturers can now communicate on a common network, giving the products more opportunities to perform.
Features
For long range air to ground 10km and NLSO 1-3km wireless video, data transmission
Support non line of sight (NLOS) mobile transmission
FHSS within bands and accross bands for anti-interference
Small dimension, light weight, easy to install
Highly integrated modular combination design

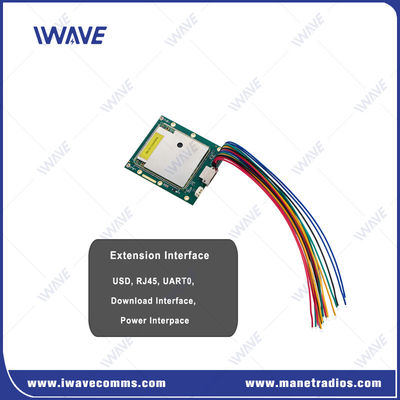

RJ45/TTL/RS232/RS485/RS422/SBUS (Customizable)
Software defined, easy webpage operation
MESH Network management software to real monitor the SNR, RSSI, Topology and distance between nodes.
API document is available for integrated into the third party platform
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Max 120Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 32node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
Video
|
|
