| Brand Name: | IWAVE |
| Model Number: | FD-7800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |
Secure Wireless Link FHSS MANET Data Links For Robotics
Description
New Frequency Hopping Spread Sprectrum provides robust interference and antijam immunity!
Trusted by Defense, Government, and Public Safety agencies around the world, FD-7800 MANET radios deliver high-fidelity video, voice, and IP data communications for Drone/UAV/UGV/USV at mission speed.
The SOC OEM radios represent the Next Generation of IWAVE MANET radio technology – optimized for size, weight, and power – and built to excel in the harshest conditions.
Powered by IWAVE proprietary mesh waveform ensures seamless compatibility with all MESH radios for unmatched performance wherever the mission takes you.
The Embedded Module unites your unmanned system's communication, computing, and video subsystems into a single SWaP-timized package.
Application
By integrating the Embedded IP MESH Module FD-7800 into your unmanned systems and sensors, each system with an Embedded Module extends the MANET to any where. It allows users to access video and sensor data - on any node from anywhere. At same time, unmanned platform and sensors from different manufacturers can now communicate on a common network, giving the products more opportunities to perform.
Features
All IP Design
Intelligent Routing
Ease of Operation
Advanced Encryption
Light-Weight
Compact
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Max 120Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 32node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |

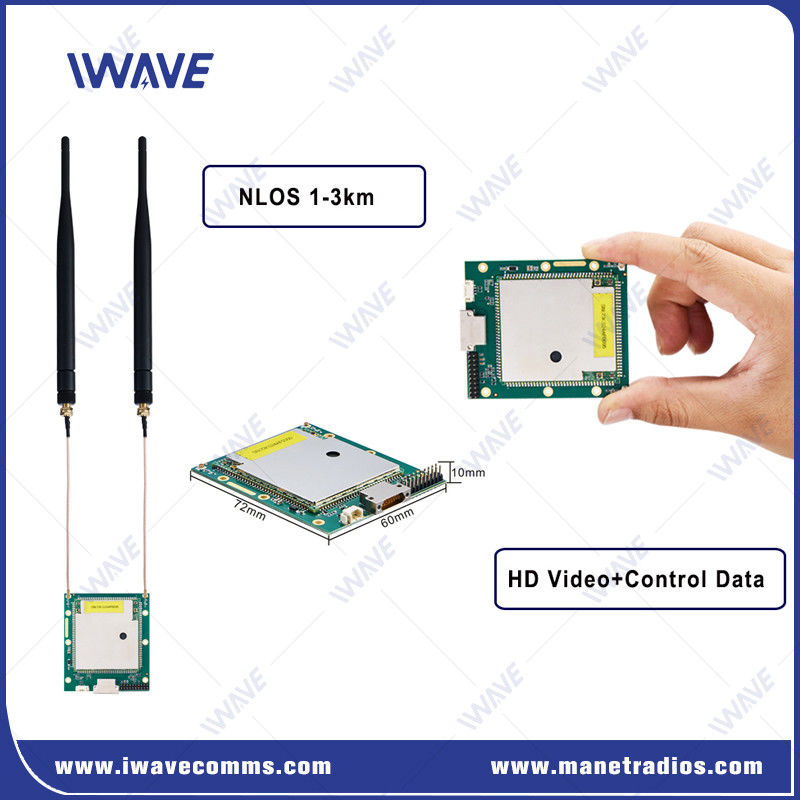

| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |

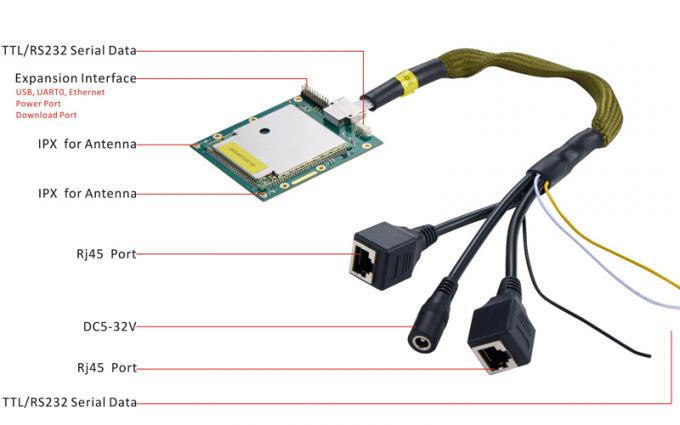

| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
Video
|
|
