Handheld Tactical MIMO IP MESH Radio Systems
Product Description
The FD-7802WG is a versatile Broadband Handheld IP MESH Radio, designed for dynamic communication needs in various environments. Here’s a detailed overview of its features and applications:
Dual-Mode, Dual-Frequency Operation: Supports both star and ad hoc networking modes, allowing for flexible deployment based on operational requirements.
IP Transparent Transmission: Provides seamless transmission channels for upper-layer applications, including video, voice, and data, ensuring compatibility with various communication needs.
Automatic Route Negotiation: Nodes automatically negotiate routes at the link layer, eliminating the need for manual configuration and facilitating ease of use.
Rapid Network Establishment: Capable of quickly establishing a communication network anytime and anywhere, making it ideal for emergency situations.

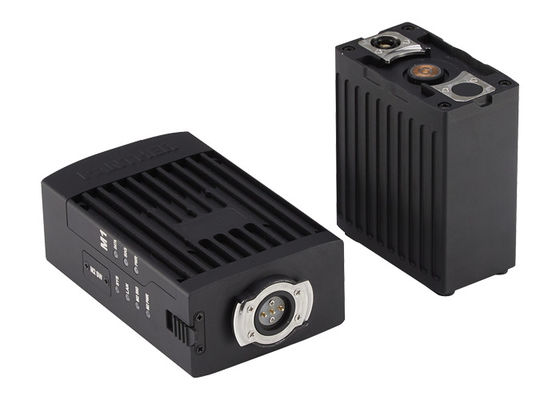

Detachable Core Module and Battery: Features a modular design for easy maintenance and battery replacement, enhancing operational efficiency.
Lightweight and Compact: Designed for portability, it is suitable for individual soldiers and outdoor operations, ensuring ease of transport.
Low Power Consumption: Optimized for extended use without frequent recharging, making it ideal for field deployments.
High Bandwidth: Supports robust data transmission, crucial for applications requiring high data rates.
Wired Ethernet Interface: Allows other mobile terminals to easily access the network.
Data Serial Port: Facilitates connection with various devices for broader application use.
The FD-7802WG can be enhanced with various accessory modules, including:
Video and Image Encoding Module: For real-time video transmission.
Integrated Voice Module: Supports voice communications.
WLAN Wireless Module: Expands wireless connectivity options.
GIS Positioning Module: For geographical positioning and navigation.
Public Network Gateway Module: Connects to external networks for broader communication capabilities.
Specification
| Items | Specifications |
| Frequency | 600Mhz/800MHz/1.4GHz/Dual Band |
| Technology | Wireless technology based on TD-LTE |
| Modulation | Support QPSK/16QAM/64QAM and other modulation methods |
| Wireless Channel | Support 3T3R MIMO |
| Power | 2W/ 5W |
| Sensitivity | ≮-103dBm@10MHz |
| Wireless channel bandwidth | Support 3MHz/5MHz/10MHz/20MHz/40MHz (CA carrier aggregation mode) |
| Anti-interference ability | Support dynamic frequency hopping technology |
| Latency | Data air interface transmission delay <30ms |
| Encryption | Support layer 2 encryption, ZUC, SNOW3G, AES three encryption methods optional |
| Throughput | 100Mbps |
| Networking capabilities | Star + MESH hybrid mode/Chain networking (optional) |
| Communication distance | 0-10km (line-of-sight transmission, actual distance depends on the transmission environment) |
| Network capacity | ≮64 nodes |
| Cascading capability | ≮6 jumps |
| Data transmission function | Support data transmission based on IP packets |
| Video transmission | Support 1080p high-definition image transmission, H.264/H.265 code stream adaptation |
| Serial Port Transmission | Support serial port data and IP data conversion,and supports Modbus, MQTT, HTTP and other serial communication protocols |
| Start-up Time | No more than 60s |
| Networking Time | No more than 90s |
| Version Upgrade | Device support version upgrade and replacement |
| Powered by | DC 12V / AC adapter / large capacity lithium battery |
| Indicator Lights | Power supply and network quality indication |
| Antenna | Standard 2dBi omnidirectional antenna |
| removable design | Wireless communication module and removable battery |
| Battery life | The continuous working time is ≮4 hours |
| Device interface | Power input aviation plug interface * 1 |
| Ethernet port aviation plug interface * 2 | |
| Data serial port aviation plug interface * 1 | |
| Wireless RF TNC interface*3 | |
| Peripheral components | Image encoding module (HDMI/SDI) |
| Components optinal | Voice processing module (/VOICE CALL) |
| WLAN wireless module (2.4GHz/5.8GHz) | |
| Public network gateway module (4G/5G) | |
| GIS positioning module (GPS/Beidou) | |
| Weight | ≯2.6kg (without antenna) |
| Size | ≯260mm*130mm*100mm (excluding antenna) |
| Operating temperature | -20ºC~55ºC |
| Storage temperature | -40ºC~65ºC |
| Temperature and humidity range | 95%±3%, 40℃, non-condensing |
| Protection | IP65 |
| Installation | Handheld/Backpack |
Interface

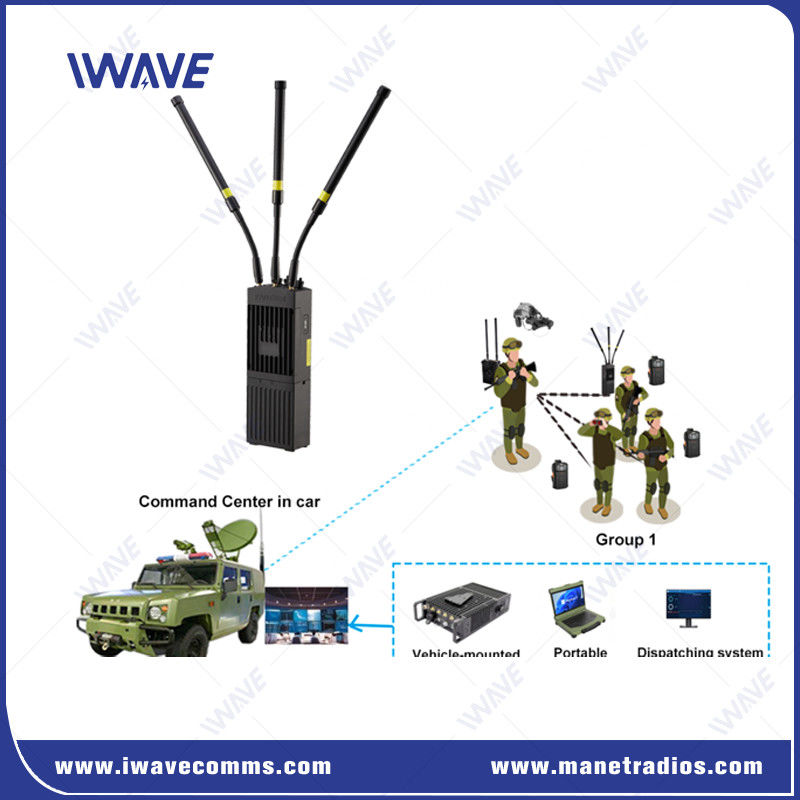

Emergency Communications: Ideal for first responders needing reliable communication in crisis situations.
Rapid Deployment: Suitable for military and field operations requiring quick setup.
Field Surveys: Facilitates data collection and communication in remote areas.
Underground Operations: Provides communication solutions in environments where traditional signals may be obstructed.
The FD-7802WG is a robust and adaptable handheld communication solution, well-suited for a variety of applications, particularly in emergency and field scenarios. Its combination of advanced features and modular design makes it a valuable tool for professionals in diverse industries. If you have further questions or need more details, feel free to ask!
